Triple Pole and Neutral, 200A, 400A ad 600A rated

Manufactured by Lucy Electric

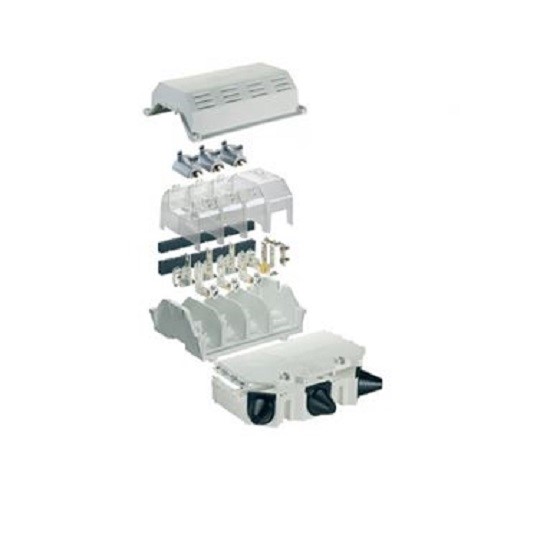

All insulated Heavy Duty Cut-out with three in-line 85 88 J type slotted tag fuse links for indoor installation.

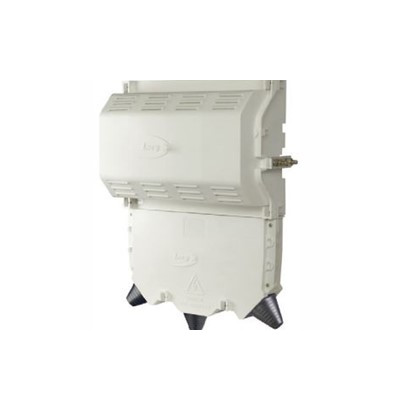

Lucy Electric’s all insulated heavy duty cut out is available in 200A, 400A and 630A rating options and is designed for indoor installation. The 200A unit accepts BS88 J type fuses with 82mm centres whereas the 400 and 630A use 93mm fuses.  Conductors up to 300mm² aluminium or copper can be terminated in the 630A version. All ratings of HDCO can be retro fitted with the Lucy CT Metering Chamber.

  • Lucy Electric’s all insulated heavy duty cut out is available in 200A, 400A and 630A rating options and is designed for indoor installation.
  • The 200A unit accepts BS88 J type fuses with 82mm centres whereas the 400 and 630A use 93mm fuses.
  • Conductors up to 300mm² aluminum or copper can be terminated in the 630A version. All ratings of HDCO can be retro fitted with the Lucy CT Metering Chamber.
  • EXCLUDES FUSES

Versions Available - Contact your local Jointing Tech office for full details

  • 200A, 400A, 600A for standard industrial installations
  • 200A, 400A, 600A for specific DNO standards (UKPN, SSE, ENWL, NPG, SPEN, WPD)

Technical Data

  • Tough, fully insulated construction
  • Troughs providing choice of three cable entry positions
  • All external cover screws are captivated
  • Keyhole fixings on uppermost body attachment points
  • Two external M12 earth studs
  • Outgoing cables exit the top of the unit via a closed cell foam cable bush
  • Sealing wire facility
  • HDC630 trough can be fitted to HDC400 unit for increased cable core separation
  • Incoming terminations via range-taking, mechanical shear off connectors or compression lugs
  • Outgoing terminations via range-taking, mechanical leader clamps or compression lugs
  • Removable N/E link for use with CNE and SNE systems
  • Removable clear internal insulation shields to incoming and outgoing phase and neutral/earth terminals



Note: The equipment described on this data sheet must be installed by suitably qualified personnel according to applicable Local/ National Wiring regulations currently in force.

Datasheet

HDCO Datasheet

Order

Part Number Description Price £ Quantity
THM0002367 200A HDCO LUG IN M12 Bolt OUT 25-150mm LEADR CLAMPS 3/4 CORE (Approved for ENWL) 342.00
THM0002114 200A HDCO UET95 IN/OUT LUG 4 CORE (Approved for SSE) 358.80
THM0016539 200A HDCO UET95 IN/OUT 25-150mm LEADER CLAMPS 4 CORE VT CONN KIT (Approved for WPD) 358.80
THM0002797 400A HDCO UET185 IN/OUT LUG (M12 Bolt) 4 CORE VT CONN KIT (Approved for SSE) 372.00
THM0002800 400A HDCO UT4/M300 DB IN/OUT LUG (M12 Bolt) 4 CORE VT CONN KIT (Approved for WPD) 372.00
0620073009 400A HDCO UMT300 IN/OUT 70-300mm LEADER CLAMPS 3 CORE RED SHROUD (Approved for UKPN) 420.00
THM0002769 400A HDCO LUG IN (M12 Bolt) LUG OUT (M12 Bolt) 3/4 CORE VT CONN KIT (Approved for SPEN) 349.20
