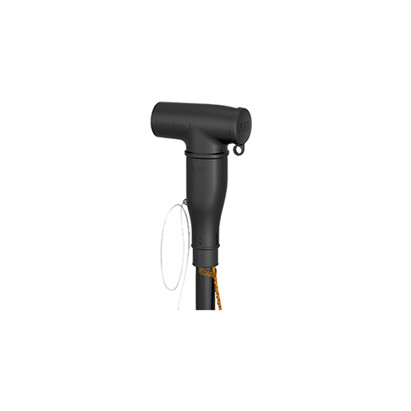

ABB 11kV Type C Separable Connector


from only POA

ABB Separable connector system for interface C bushing 12-36kV 630A

Designed to facilitate the easy connection and disconnection of single core copper wire screened XLPE cables to medium voltage equipment like transformers and switchgear

  • The connectors are manufactured in three layers, a conductive inner layer, an insulation layer and a conductive outer layer
  • The materials are vulcanised together to give the best possible interface between layers
  • The cable connector includes a capacitive test point with protection and integrated earthing wire
  • UV, ozone and tracking resistant
  • Available in straight and elbow configuration
  • Screen separation kit can be ordered separately for 3 core cables
  • Supplied with bimetallic mechanical lugs to connect copper and aluminium conductor
Technical Data
  • The screened cable connector exceeds CENELEC HD 629.1 S1 requirements which includes BS,VDE and other international specifications
  • Maximum System Voltage 36kV
  • Continuous Current 630A
Order
Part Number Conductor Size Voltage Core Insulation Diameter Price Quantity
CSE-A 12630-01 25-70mm² 12kV 13-20mm POA
CSE-A 12630-02 95-300mm² 12kV 18.5-30.5mm POA
CSE-A 12630-03 400-630mm² 12kV 30.5-45mm POA
