Two Bolt Single - TSC Series


from only £0.27

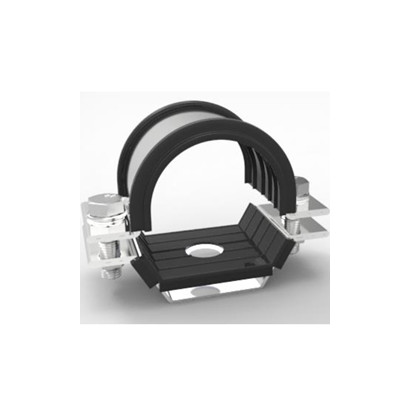

Stainless Steel Single Cleat TSC Series

The TSC series of cleats and straps support and secure all cables throughout the system during normal operation and during fault conditions that may occur

  • Compliant with the requirements of IEC 61914: 2009
  • Cleat body and fastenings are manufactured from 316L corrosion resistant non-magnetic stainless steel which makes them suitable for use in harsh and extreme environments including marine and offshore applications
  • The main cleat fastening bolt is retained to ease installation
  • Cable diameter range 24mm - 170mm
  • The cleat liner is manufactured from an LUL approved flame retardant halogen free extruded polymer
  • Cleats can be supplied, as an addition, with an easy fit spacer plate to assist with range take
  • Suitable for use with all standard ladder and tray systems

*LSF Insulation Pad. This fits to the base of the cleat and is recommended to stop any cross-contamination when fixing the stainless steel cleat to dissimilar metals. It should be ordered when ordering cleats and will come fitted for the cleat ordered.

Technical Data
  • Low, Medium and High voltage single core cables with high fault current capacities
  • Cable diameters from 24mm - 170mm
  • Suitable for harsh environments
  • Suitable for use with all standard ladder and tray systems
  • Operating temperatures -45°C to +120°C

Correct cleat spacing is essential, please follow manufacturer guidelines and recommendations

Order
Part Number Diameter Description Price Quantity
TSC2429 24-29MM Twobolt Single £17.12
TSC2732 27-32MM Twobolt Single £17.35
TSC3036 30-36MM Twobolt Single £17.68
TSC3441 34-41MM Twobolt Single £18.27
TSC3947 39-47MM Twobolt Single £18.92
TSC4554 45-54MM Twobolt Single £19.49
TSC5062 50-62MM Twobolt Single £20.12
TSC6072 60-72MM Twobolt Single £21.19
TSC6880 68-80MM Twobolt Single £21.99
TSC7895 78-95MM Twobolt Single £30.18
TSC93110 93-110MM Twobolt Single £32.26
TSC105126 105-126MM Twobolt Single £34.44
TSC122146 122-146MM Twobolt Single £36.98
TSC142170 142-170MM Twobolt Single £40.40
*CL-LSFINSPAD - LSF Insulation Pad £0.27
