Surge Arrestor for 11kv C Type Bushings


from only POA

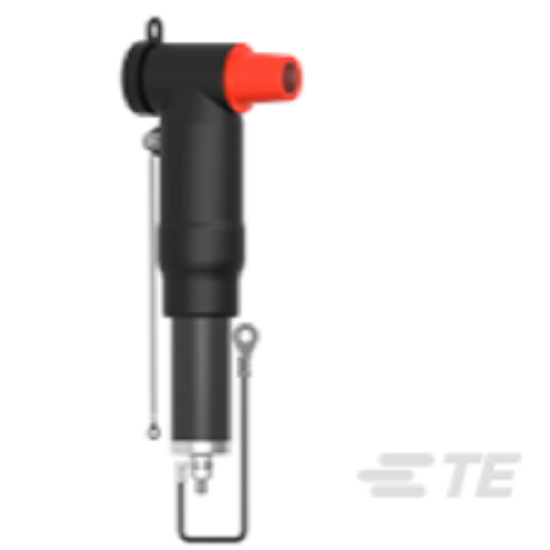

Tyco 11kV Separable Connector for Type C Bushings - Surge Arrestor

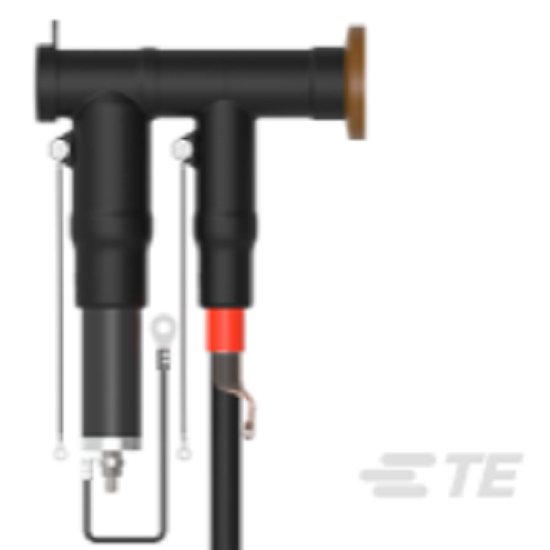

Designed for direct connection onto switchgear outer cone bushing or parallel connection onto a base separable connector to provide protection against surge currents.

  • The insulation of the connector is made of a highly modified silicone rubber characterised by high tracking resistance, elongation at break and non flammability.
  • A thin walled screen is permanently bonded onto the insulation and protects the connection system against unintentional contact
  • State of the art gapless design
  • Easily accessible rear plug with capacitive test point
  • Few accessories required for system test and earth connection
  • Complete kit including screened surge arrestor, threaded pin and ground lead for three phases facilitates installation and storage
Technical Data
  • CENELEC HD 629.1 S1 Requirements which include BS, VDE & other international specifications
  • Metal oxide arrestor which meets the requirements of IEC-60099-4 for separable and dead front arrestors
Order
Part Number Connector Type Length Rated Discharge Current Short Circuit Current Price Quantity
RSTI-58SA1205 Single 285 5kA 16kA POA
RSTI-CC-58SA1205 Parell 285 5kA 16kA POA
