Prysmian Brass CW PVC & LSF

Show VAT

from only £12.82 Ex VAT£15.38 Inc VAT

Indoor/outdoor type for SWA cable

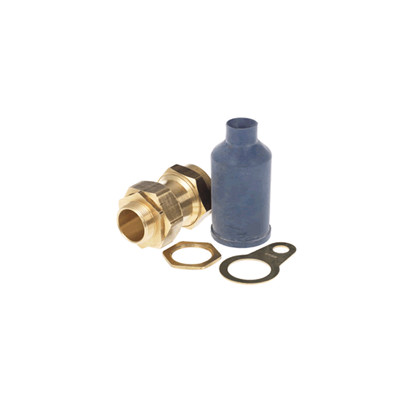

Kit comprises: CW gland, brass earth tag, brass locknut and shroud

Brass indoor and outdoor cable gland & accessories
For circular, galvanized steel single wire armour plastic or rubber sheathed cables
Outer seal grips sheath of cable
For use in most climatic conditions, weatherproof and waterproof
Three part armour lock with separate armour locking ring, ideal for checking electrical continuity
Available in LSF version
Manufactured by industry leaders Prysmian

Technical Data

EN 50262
BS 6121:Pt 1:1989
Gland rated to IP66 with use of suitable sealing washer or thread sealant at gland interface
Service temperature range -20

Datasheets

Order

Part Number	Wolseley Code	Alternative Part Ref	Shroud Material	Size	Pack Qty	Price Ex VATInc VAT
CG-CW20SS	CJ1819	KA41971	PVC	20SS	1 Pair	£16.35£19.62
CG-CW20S	CJ1659	KA41952	PVC	20S	1 Pair	£12.82£15.38
CG-CW20	CJ1677	KA41953	PVC	20	1 Pair	£14.26£17.11
CG-CW25	CJ1662	KA41955	PVC	25	1 Pair	£21.57£25.88
CG-CW32	CJ1656	KA41956	PVC	32	Each	£20.86£25.03
CG-CW40	CJ1664	KA41957	PVC	40	Each	£31.68£38.02
CG-CW50S	CJ1722	KA41958	PVC	50S	Each	£48.72£58.46
CG-CW50	CJ3040	KA41959	PVC	50	Each	£48.23£57.88
CG-CW63	CJ3041	KA41961	PVC	63	Each	£68.91£82.69 WAS: £76.92 WAS: £92.30
CG-CW75	CJ1694	KA41963	PVC	75	Each	£86.74£104.09
CG-CW20SSLSF		LSF20SSCW	LSF	20SS	1 Pair	£17.39£20.87
CG-CW20SLSF	CJ1772	LSF20SCW	LSF	20S	1 Pair	£19.00£22.80
CG-CW20LSF	CJ1690	LSF20CW	LSF	20	1 Pair	£21.35£25.62
CG-CW25LSF	CJ1702	LSF25CW	LSF	25	1 Pair	£28.92£34.70
CG-CW32LSF	CJ1723	LSF32CW	LSF	32	Each	£24.97£29.96
CG-CW40LSF	CJ1724	LSF40CW	LSF	40	Each	£38.65£46.38
CG-CW50SLSF	CJ1851	LSF50CW	LSF	50S	Each	£50.51£60.61
CG-CW50LSF		LSF63CW	LSF	50	Each	£61.52£73.82
CG-CW63LSF	CJ1736	LSF63SCW	LSF	63	Each	£85.40£102.48
CG-CW75LSF	CJ1769	LSF75CW	LSF	75	Each	£96.11£115.33
