Lucy Electric Metal Multi Service Distribution Boards (MSDB) New Version 2.0


from only £1,542.69 Ex VAT

Lucy Electric Metal Multi Service Distribution Boards (MSDB) New Version 2.0

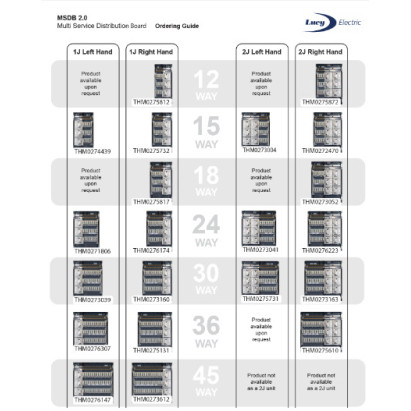

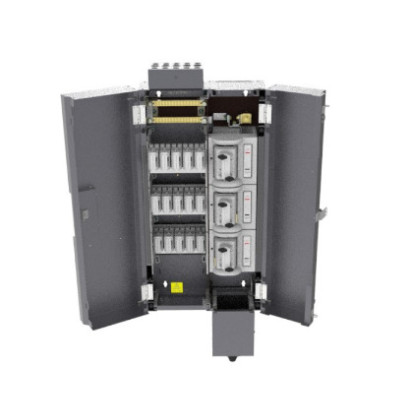

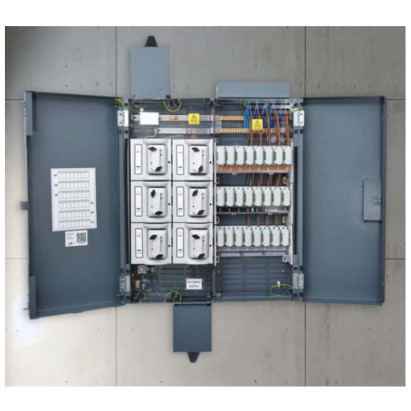

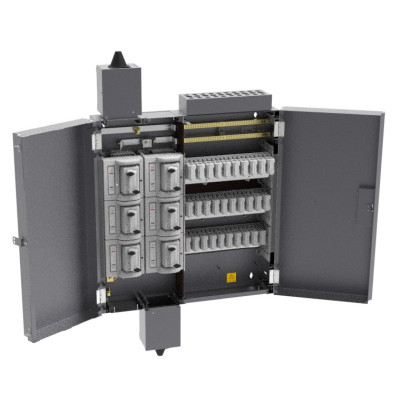

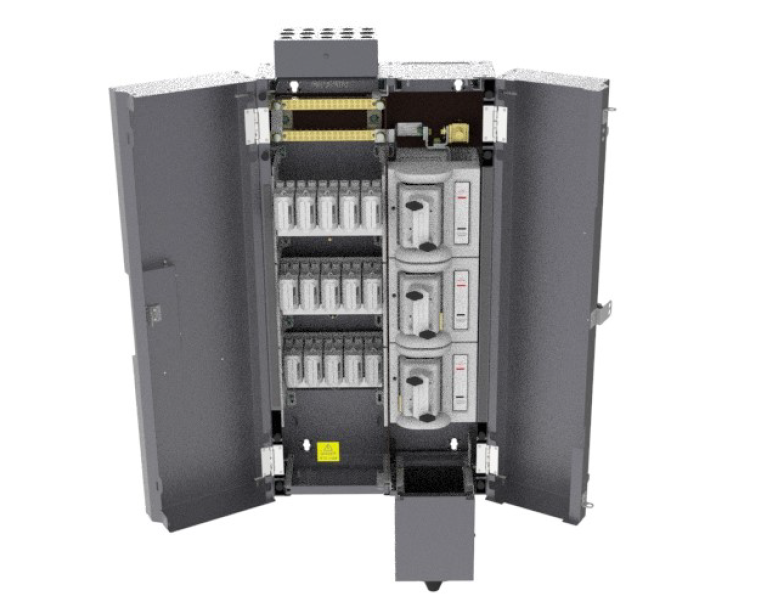

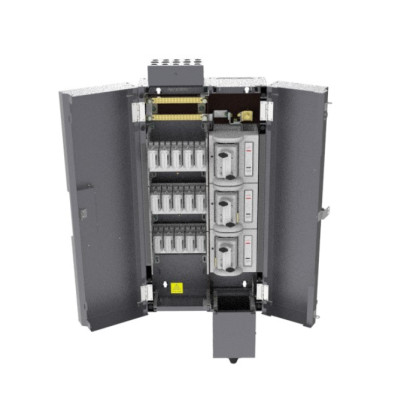

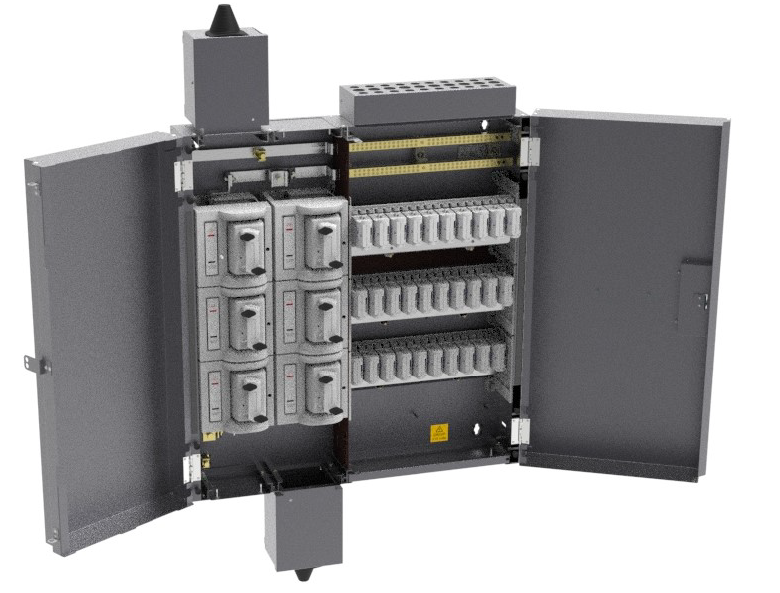

MSDB 2.0 builds on the original MSDB range, harmonizing the vertical J type cabinets into a single design.

Key elements like fuse ways and cable ways remain unchanged, but more space around fuse ways has been created to ease cabling and enhance safety.  The unification of main cable accessories ensures interchangeability without compromise. The new design includes extension boxes for service cable exits, reducing inventory needs and making iinstallation easier.

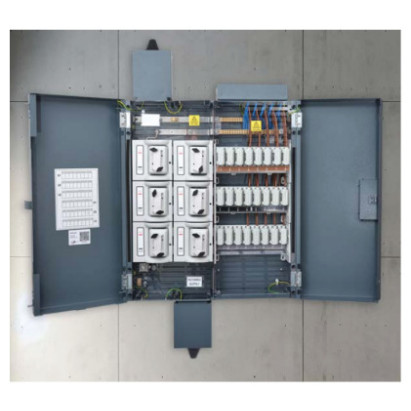

MSDB 2.0 accepts both 3 core and 4 core cables and has top Earth and Neutral busbars simplifying inventory and range complexity. Bottom Neutral and Earth options are not available MSDB 2.0 conforms to the ENA TS 37-4 standard for Multi Service Distribution Boards in communal living spaces.


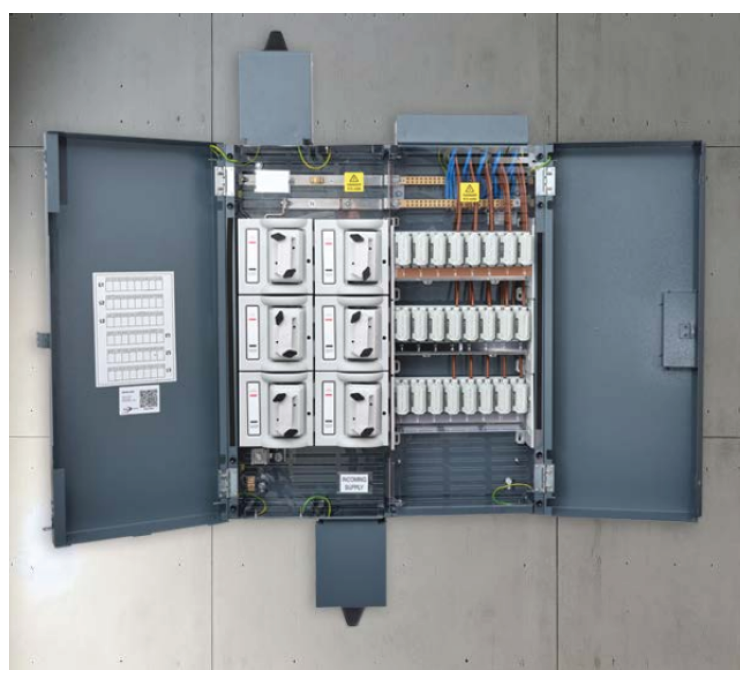

Neutral and Earth busbars now lie flat against the back of the cabinet affording for more depth,and space for cabling.


Additional features include double insulation, robust cable cleats, and a lifting handle kit The cabinets support various configurations, are tested to ENA TS 37-4 and BS EN 61439-5 standards, and include features like reduced single-use plastic packaging and improved cable identification labels.


Common aspects for MSDB 2.0 products:


• Outgoing 100A service cables always exit from the top.
• Service cable neutral and earth brass blocks are at the top only.
• Choice of main cable containment across all vertical J type variants.
• 500A nominal busbar ratings.
• Standard connectors with 95mm² to 300mm² capacity.
• Phase, Neutral, and Earth connectors provided according to cabinet configuration.
• 100% Ductor testing of busbar assemblies.
• Easily removable doors for better access.
• Gross and net cabinet weights and dimensions available for manual handling risk assessment.
• Improved main cable identification labels.
• Additional ventilated insulated screens for safety to IPXXB
• Lifting handle attachment points, a tape measure for cabinet fixing hole dimensions, and a QR code leading to the
installation manual.

Selectable criteria includes:


• 12 to 45 x 100A service ways.
• 1J or 2J up to 36 ways (45w is 1J only).
• Left or right main cable entry.
• 3 or 4 core main cable compatibility.
• Three variations of main cable accesories (ordered separately)MSDB 2.0 builds on the original MSDB range, harmonizing the vertical J type cabinets into a single design. Key elements like fuse ways and cable ways remain unchanged, but more space around fuse ways has been created to ease cabling and enhance safety.


The unification of main cable accessories ensures interchangeability without compromise. The new design includes extension boxes for service cable exits, reducing inventory needs and making iinstallation easier.
MSDB 2.0 accepts both 3 core and 4 core cables and has top Earth and Neutral busbars si

mplifying inventory and range complexity. Bottom Neutral and Earth options are not available MSDB 2.0 conforms to the ENA TS 37-4 standard for Multi Service Distribution Boards in communal living spaces.
Neutral and Earth busbars now lie flat against the back of the cabinet affording for more depth,and space for cabling.


Additional features include double insulation, robust cable cleats, and a lifting handle kit The cabinets support various configurations, are tested to ENA TS 37-4 and BS EN 61439-5 standards, and include features like reduced single-use plastic packaging and improved cable identification labels.


Common aspects for MSDB 2.0 products:


• Outgoing 100A service cables always exit from the top.
• Service cable neutral and earth brass blocks are at the top only.
• Choice of main cable containment across all vertical J type variants.
• 500A nominal busbar ratings.
• Standard connectors with 95mm² to 300mm² capacity.
• Phase, Neutral, and Earth connectors provided according to cabinet configuration.
• 100% Ductor testing of busbar assemblies.
• Easily removable doors for better access.
• Gross and net cabinet weights and dimensions available for manual handling risk assessment.
• Improved main cable identification labels.
• Additional ventilated insulated screens for safety to IPXXB
• Lifting handle attachment points, a tape measure for cabinet fixing hole dimensions, and a QR code leading to the installation manual.

Selectable criteria includes:

• 12 to 45 x 100A service ways.
• 1J or 2J up to 36 ways (45w is 1J only).
• Left or right main cable entry.
• 3 or 4 core main cable compatibility.
• Three variations of main cable accesories (ordered separately)



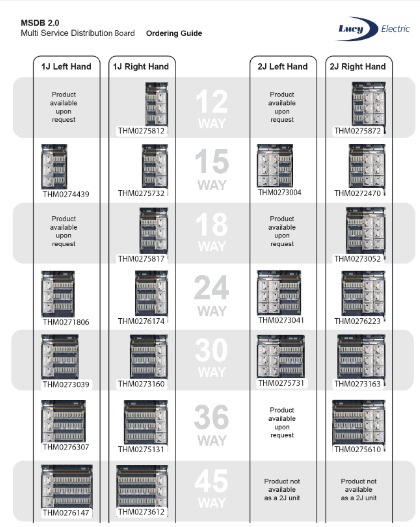

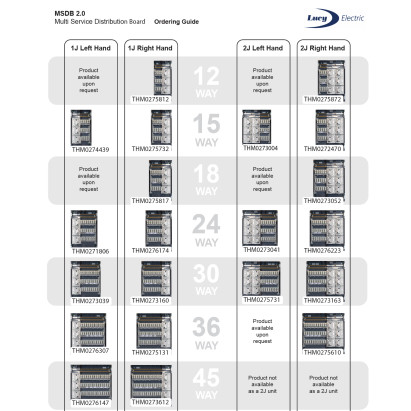

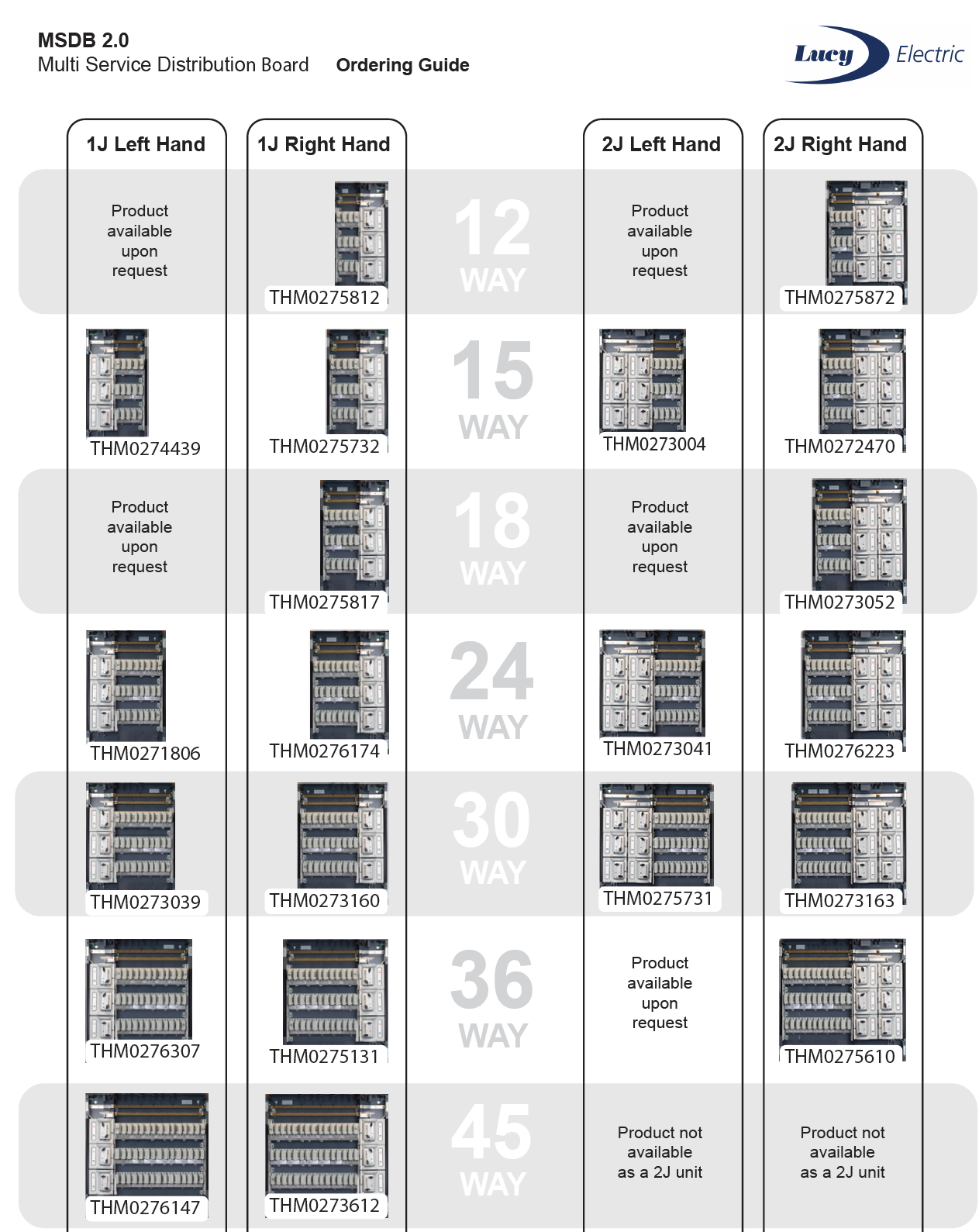

Order
Part Number Wolseley Code Description Version Outgoing Way DNO Approval Price Ex VAT Quantity
THM0275812 CC5924 12 WAY - 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL - DOUBLE BOLT CONNECTORS 2.0 12 Industrial (Non DNO Specific) £1,671.25
THM0275872 CC5925 12 WAY - 2J - RIGHT HAND - 4 CORE - TOP NEUTRAL - DOUBLE BOLT CONNECTORS 2.0 12 Industrial (Non DNO Specific) £2,091.26
THM0274439 CC5926 15 WAY- 1J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 15 Industrial (Non DNO Specific) £1,542.69
THM0275732 CC5927 15 WAY- 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL 2.0 15 Industrial (Non DNO Specific) £1,542.69
THM0273004 CC5928 15 WAY- 2J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 15 Industrial (Non DNO Specific) £2,035.25
THM0272470 CC5929 15 WAY- 2J - RIGHT HAND - 4 CORE - TOP NEUTRAL 2.0 15 Industrial (Non DNO Specific) £2,035.25
THM0275817 CC5930 18 WAY - 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL - DOUBLE BOLT CONNECTOR 2.0 18 Industrial (Non DNO Specific) £2,184.32
THM0273052 CC5931 18 WAY - 2J - RIGHT HAND - 4 CORE - TOP NEUTRAL - DOUBLE BOLT CONNECTORS 2.0 18 Industrial (Non DNO Specific) £2,431.29
THM0271806 CC5932 24 WAY- 1J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 24 Industrial (Non DNO Specific) £1,800.82
THM0276174 CC5933 24 WAY- 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL 2.0 24 Industrial (Non DNO Specific) £1,800.82
THM0273041 CC5934 24 WAY- 2J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 24 Industrial (Non DNO Specific) £2,249.55
THM0276223 CC5935 24 WAY- 2J - RIGHT HAND - 4 CORE - TOP NEUTRAL 2.0 24 Industrial (Non DNO Specific) £2,249.55
THM0273039 CC5936 30 WAY- 1J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 30 Industrial (Non DNO Specific) £1,844.78
THM0273160 CC5937 30 WAY- 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL 2.0 30 Industrial (Non DNO Specific) £1,844.78
THM0275731 CC5938 30 WAY- 2J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 30 Industrial (Non DNO Specific) £2,455.46
THM0273163 CC5939 30 WAY- 2J - RIGHT HAND -4 CORE - TOP NEUTRAL 2.0 30 Industrial (Non DNO Specific) £2,455.46
THM0276307 CC5940 36 WAY - 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL - DOUBLE BOLT CONNECTORS 2.0 36 Industrial (Non DNO Specific) £2,582.89
THM0276610 CC5941 36 WAY - 2J - RIGHT HAND - 4 CORE - TOP NEUTRAL - DOUBLE BOLT CONNECTORS 2.0 36 Industrial (Non DNO Specific) £3,102.92
THM0276147 CC5942 45 WAY- 1J - LEFT HAND - 4 CORE - TOP NEUTRAL 2.0 45 Industrial (Non DNO Specific) £2,462.05
THM0273612 CC5943 45 WAY- 1J - RIGHT HAND - 4 CORE - TOP NEUTRAL 2.0 45 Industrial (Non DNO Specific) £2,462.05
