Forte Single – HSC Series


from only £0.27

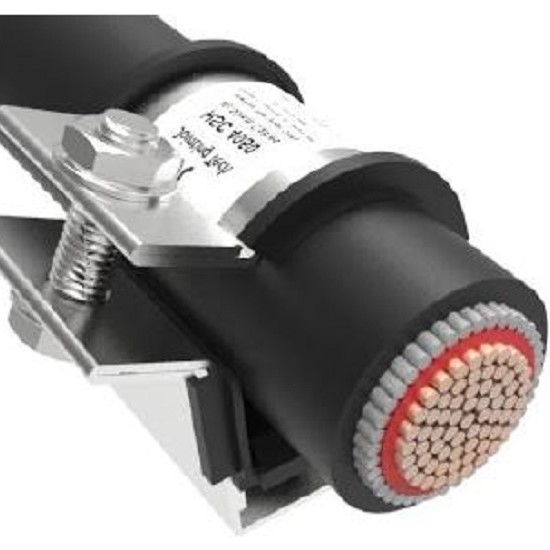

Stainless Steel Single Cleat HSC Series

The HSC series of cleats support and secure cables throughout the system during normal operation and during fault conditions that may occur ensuring that system integrity is maintained and cable damage can be prevented

  • Cleat body and fastenings are manufactured from 316L corrosion resistant non-magnetic stainless steel
  • Suitable for use in harsh and extreme environments including marine and offshore
  • Main cleat fastening bolt is retained to ease installation
  • Cleat liner is manufactured from an extruded polymer which is an LUL approved flame retardant halogen free polymer
  • Cleats can be supplied with or without liner
  • Complies with IEC 61914:2015

*LSF Insulation Pad. This fits to the base of the cleat and is recommended to stop any cross-contamination when fixing the stainless steel cleat to dissimilar metals. It should be ordered when ordering cleats and will come fitted for the cleat ordered.

Technical Data
  • Low, Medium and High voltage single core cables with high fault current capacities
  • Cable diameters from 33mm to 150mm
  • Can be supplied with tension springs for vertical cable run applications
  • Can be supplied with spiral to circular conversion inserts for Triplex cable applications
  • Suitable for harsh environments
  • Suitable for use with all standard ladder and tray systems
  • Operating temperatures -45°C to + 120°C

Correct cleat spacing is essential, please follow manufacturer guidelines and recommendations

Order
Part Number Diameter Description Price Quantity
HSC4050 40-50mm Forte Single £17.48
HSC5060 50-60mm Forte Single £20.21
HSC6070 60-70mm Forte Single £21.47
HSC7080 70-80mm Forte Single £24.57
HSC8090 80-90mm Forte Single £26.18
HSC90100 90-100mm Forte Single £27.65
*CL-LSFINSPAD - LSF Insulation Pad £0.27
