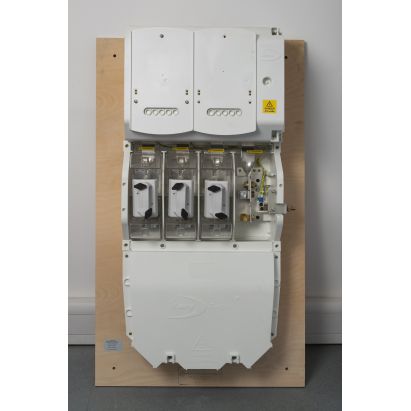

Current Transformer Metering Chamber (CTMC)
from only £2,177.70 Ex VAT
Direct Coupled to Lucy Heavy Duty Cut Outs
from Lucy Electric

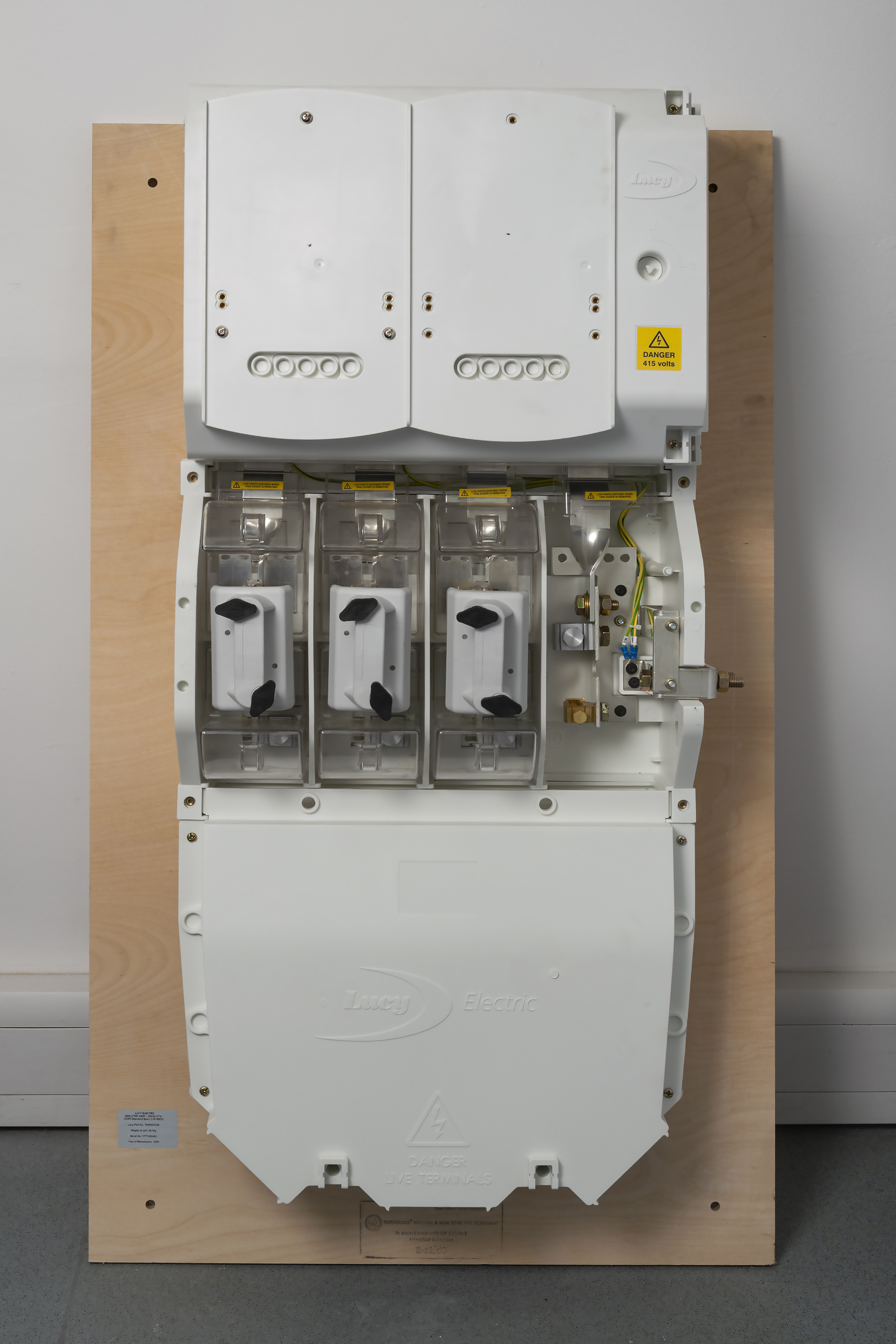

All-Insulated Polyphase LV Metering Chamber
Our all-insulated polyphase LV metering chamber is designed for seamless integration with Lucy Heavy Duty Cut Outs in 200A, 400A, or 600A configurations. Each unit is fitted with a cable trough and mounted on a fire-retardant plywood backboard for enhanced safety and durability.
Looking to upgrade existing installations? The metering chamber module is also available as a retrofit option, making it easy to assemble with Lucy Heavy Duty Cut Outs already in service.

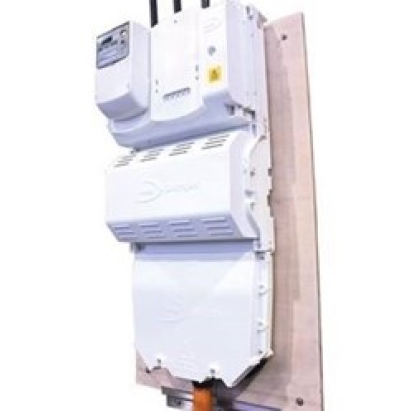

- All-insulated polyphase LV metering chamber directly coupled to either the Lucy 200A, 400A or 600A
- Factory configured one piece assembly mounted on 18mm plywood from Forestry Stewardship certified sources
- Heavy Duty Cut Outs fitted with cable trough and mounted on a fire retardant plywood back board.
- Two sealable and lockable sequentially opening doors to segregate CT / busbar side from meter connection side
- Single standard tri- head meter key on outer door plus 2 additional sealing points on each of the other doors
- Accepts up to two polyphase meters with ISO mountings
- Bolted busbars between HDCO and CTMC
- Pre-fitted single ratio metering class CL0.5s CTs (200/5, 400/5 or 600/5 according to the fuse rating of the HDCO)
- DIN rail mounted voltage potential fuses
- Cut Outs already in service.
- EXCLUDES FUSES
- Incoming and outgoing conductors up to 300mm2
- Provision for check meter
- Kelman Fusemate, Rezap and Litton Veam generator handle compatible
- Removable N/E link for use with CNE 3C and SNE 4C wire 50Hz 400V systems
- Lug or shear off mechanical connector termination solutions
- Bolted busbar connections between cut out metering chamber and heavy duty cut out
- Pre-fitted single ratio metering class CL 0.5s CTs (200/5, 400/5 or 600/5 according to the fuse rating of the HDCO)
- DIN rail mounted voltage potential fuses
- MOCOPA 3 or 5 compatible DIN rail mounted modular test block
- Accepts polyphase meter with ISO mountings
Note: The equipment described on this data sheet must be installed by suitably qualified personnel according to applicable Local/ National Wiring regulations currently in force.
