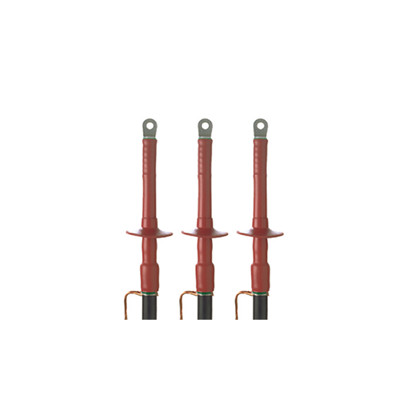

11kV XLPE Cable Termination - Heat Shrink

Show VAT

from only £127.05 Ex VAT£152.46 Inc VAT

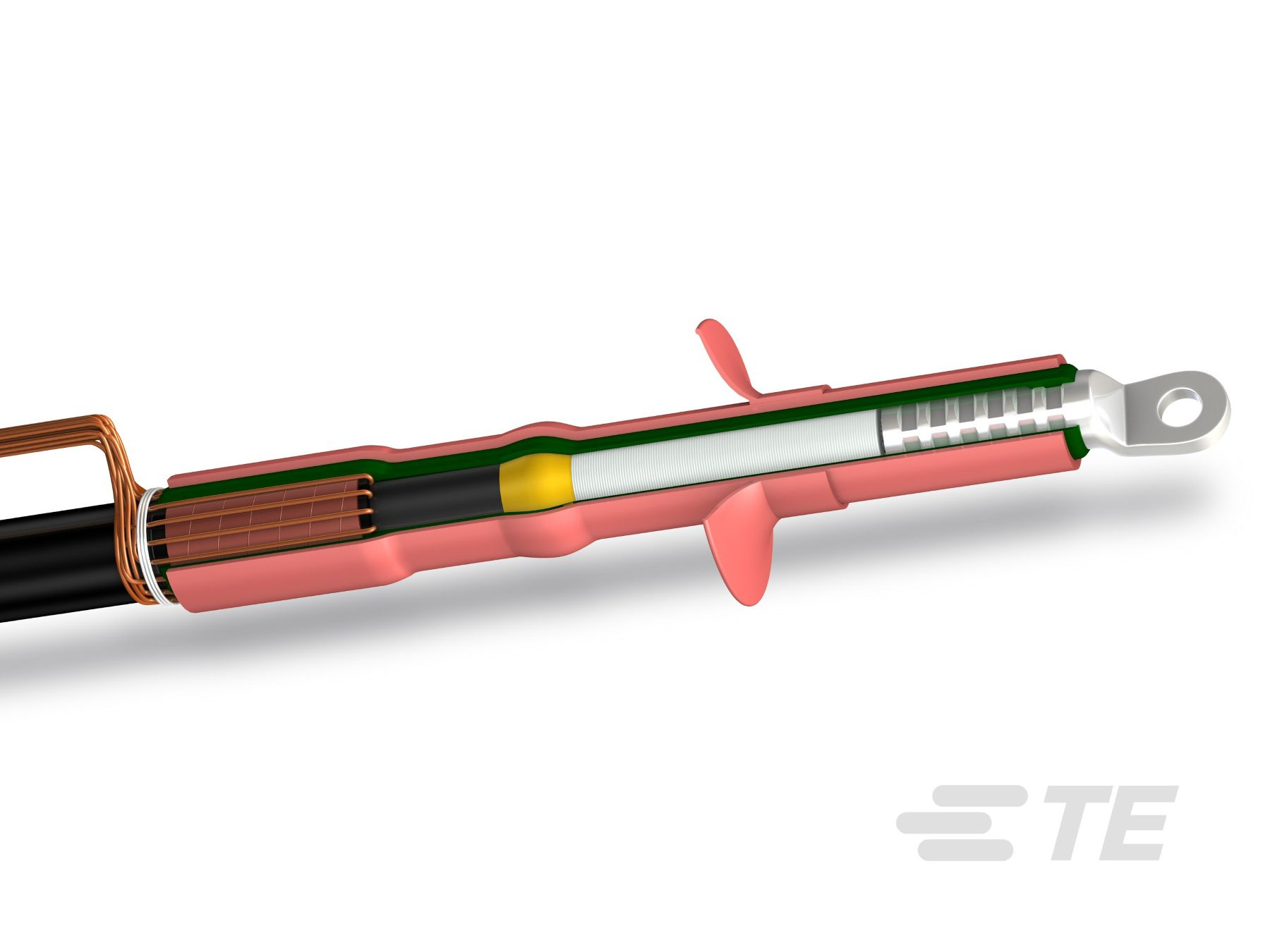

TE Connectivety single core heat shrink termination for XLPE cables in outdoor applications

Designed to terminate single core, polymeric insulated 11kV cables in outdoor applications such as pole top assemblies

Highly reliable UK industry standard termination
Range taking with few components needed
New ceramic stress control
Compact design
No shelf life limitation
Suitable for use on 11kV triplex cables

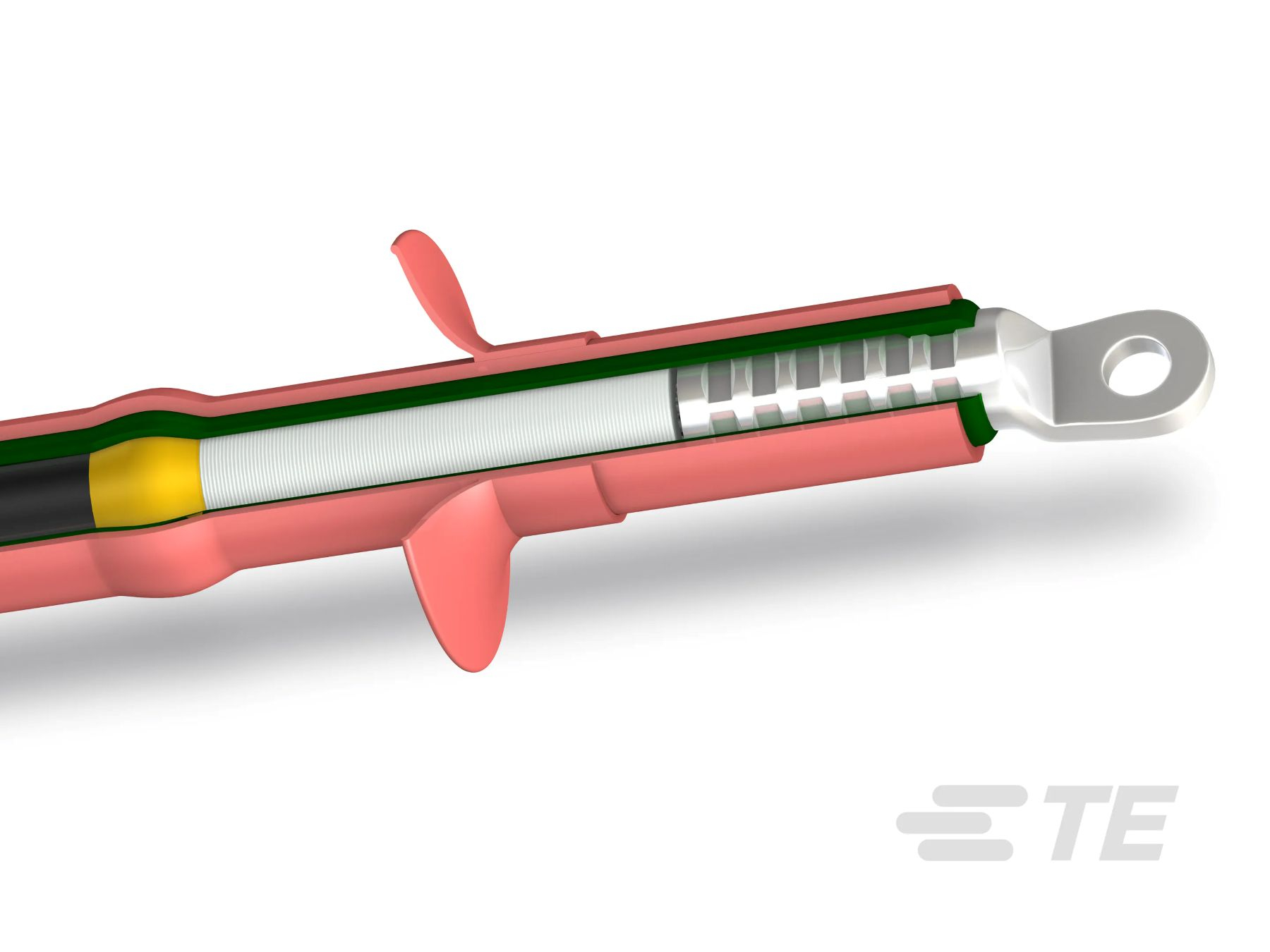

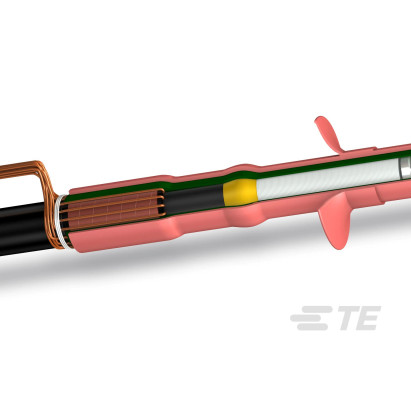

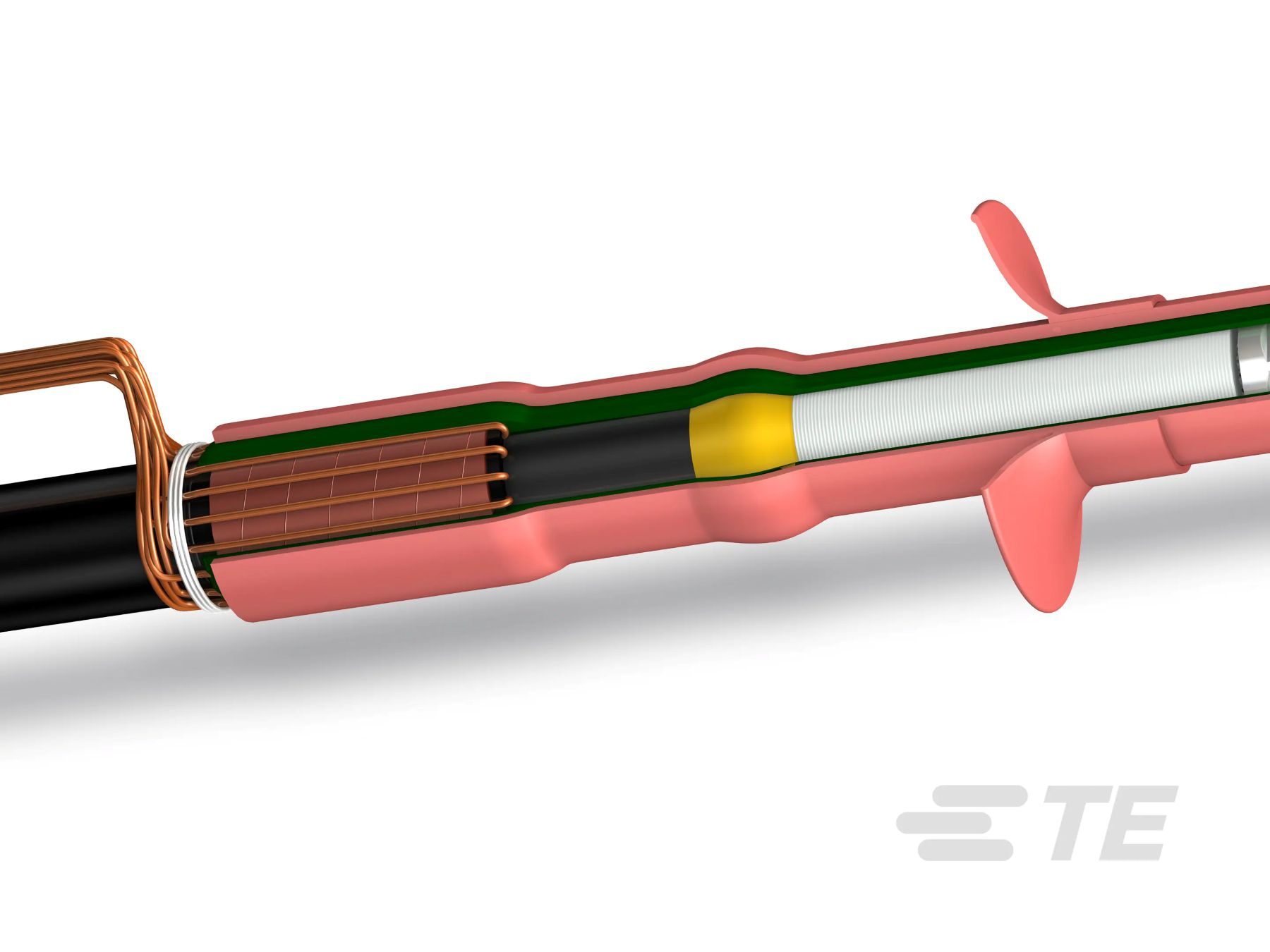

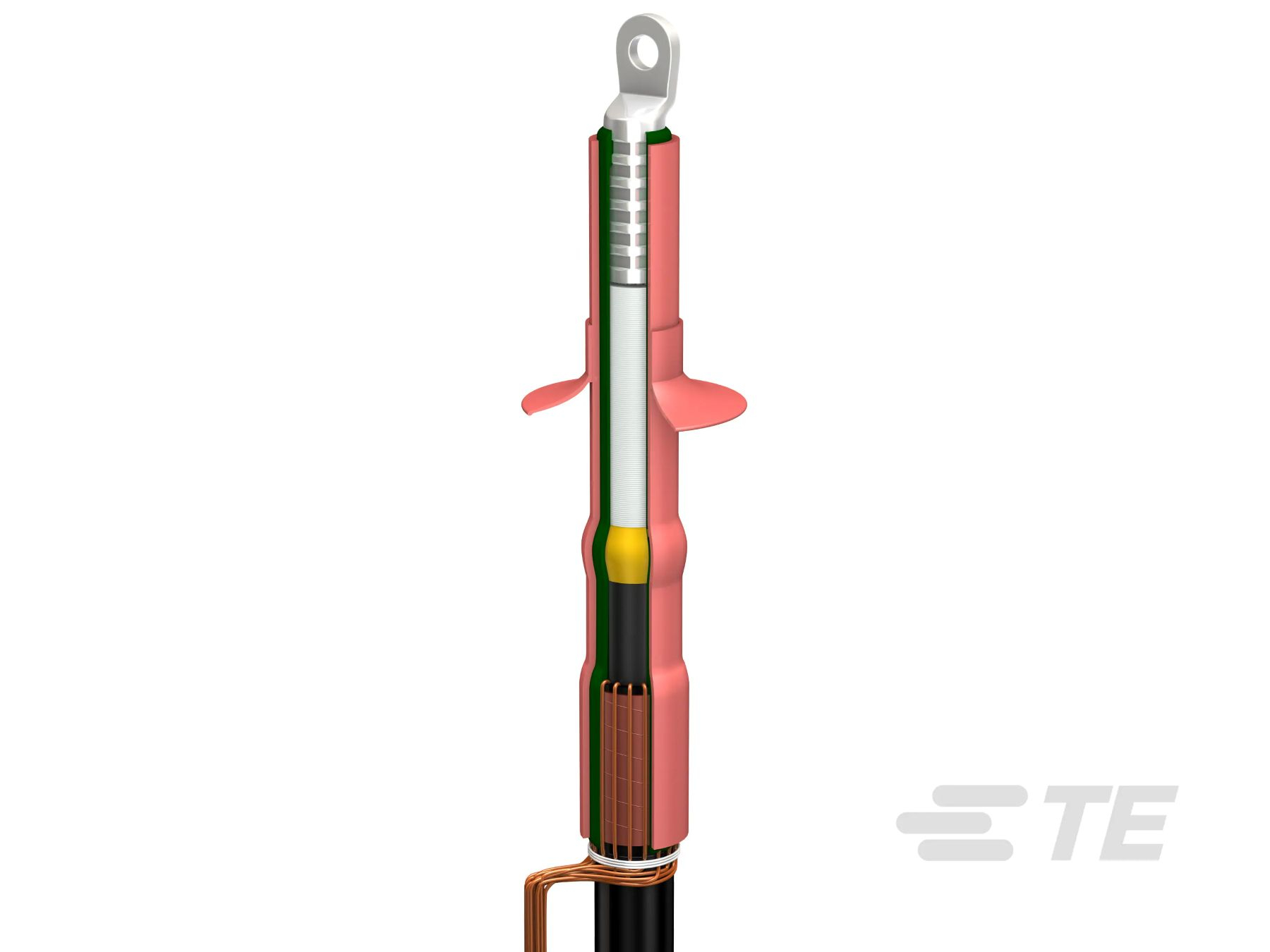

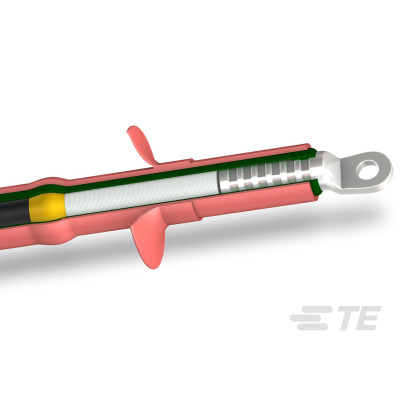

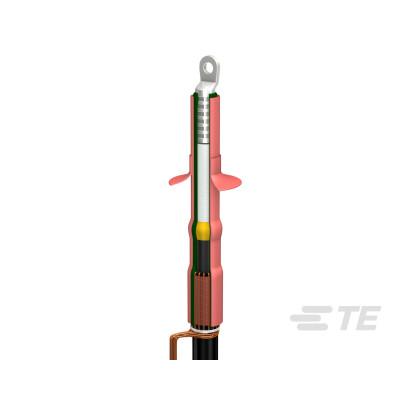

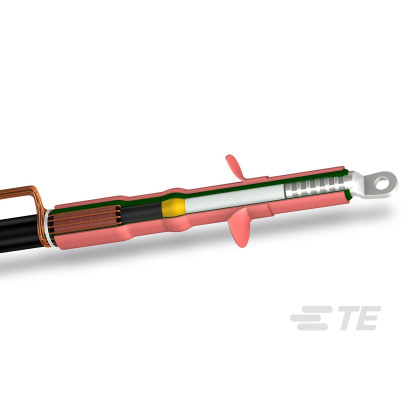

Kit contents - Insulation tubing including co-extruded stress control, sealant tapes, conductive breakouts and installation instructions

Technical Data

Tested in accordance with CENELEC specification HD 629 which encompasses IEC, BS and VDE etc.
All IXSU/OXSU components have full traceability of raw materials and manufacture according to ISO 9001 & ISO 14001

Datasheets

TE - Single Core XLPE Outdoor

Order

Part Number	Wolseley Code	Conductor Size	TE Part Number	MOQ	Price Ex VATInc VAT	Quantity
OXSU-F-3111	JZ0816	10- 35mm²		3	£127.05£152.46
OXSU-F-3121	CJ2587	25- 95mm²	674179-011		£144.90£173.88
OXSU-F-3131	CJ2588	95- 240mm²	170347-011		£171.15£205.38
OXSU-F-3141	CJ2589	240- 500mm²	572329-011		£169.16£202.99 WAS: £187.95 WAS: £225.54
OXSU-F-3151	CJ2590	500- 800mm²	057101-011		£218.40£262.08
