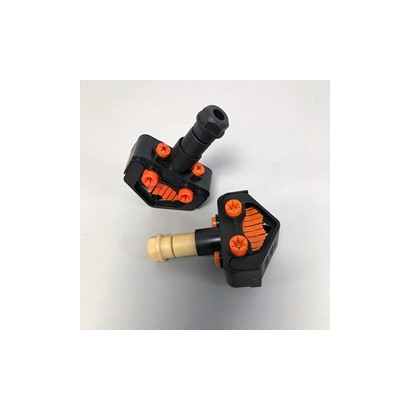

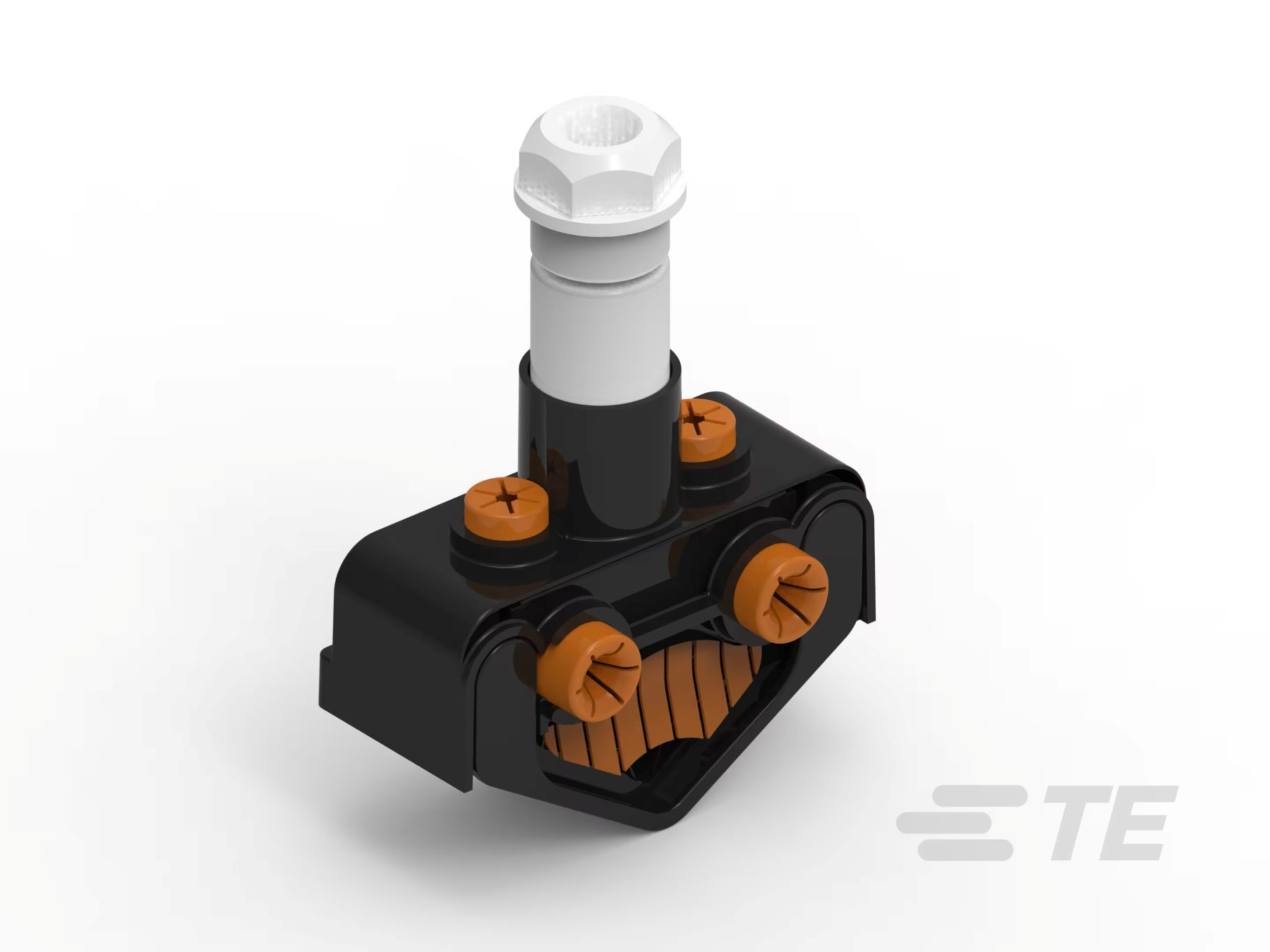

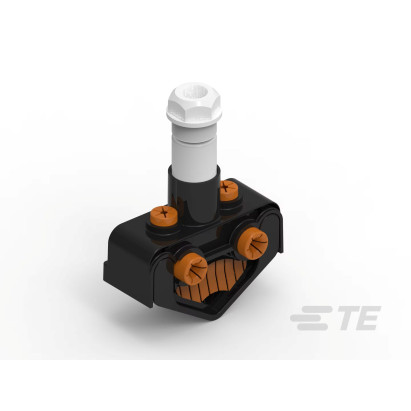

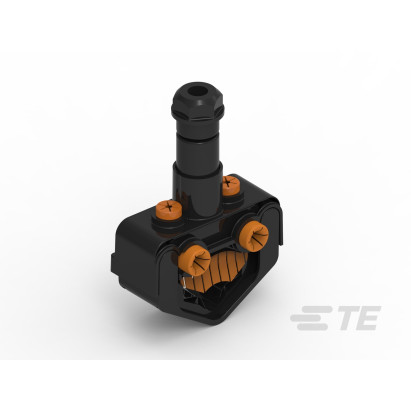

Tyco Self Piercing Connectors IIPC Series

IIPC connectors allow live jointing of solid/stranded service cables up to 35mm²  on to low voltage (LV) mains cables from 50mm² to 300mm²

• Includes solid/stranded 120 and 90 degree round or sectoral conductors with XLPE, PVC or paper insulation
• Allows for up to two service cables to be taken from each IIPC plus the option to take the service connections from either side of the connector
• Main connection is made using a 19mm insulated socket or a battery powered impact wrench
• Service connections are made with an insulated 3mm Allen key
• Ergonomic design

Live working procedures should always be followed during installation
