Tyco 24kV Type B Separable Connectors


from only £624.75

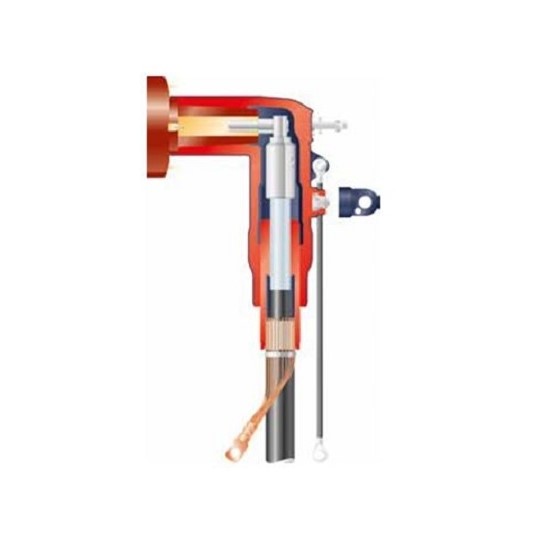

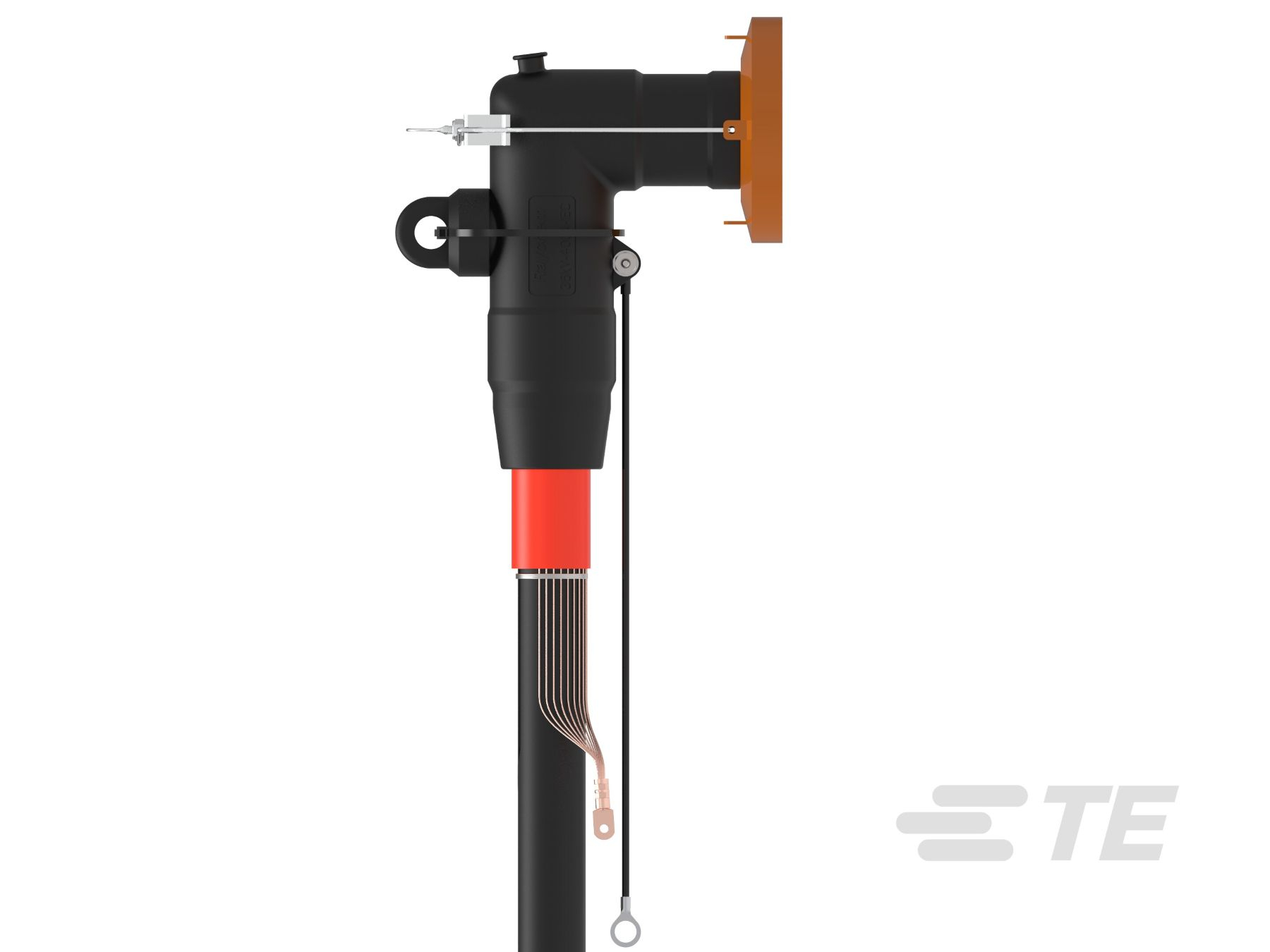

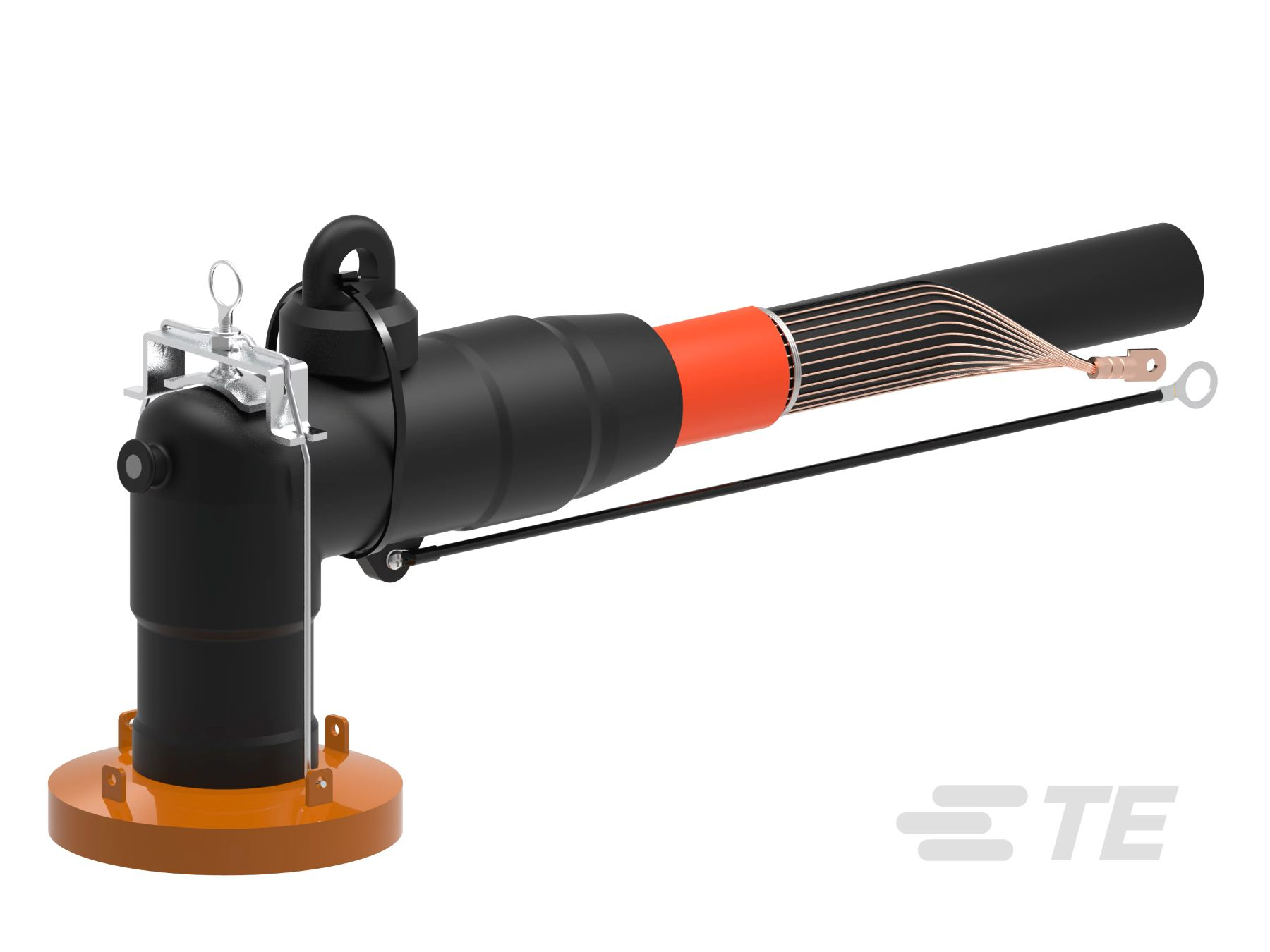

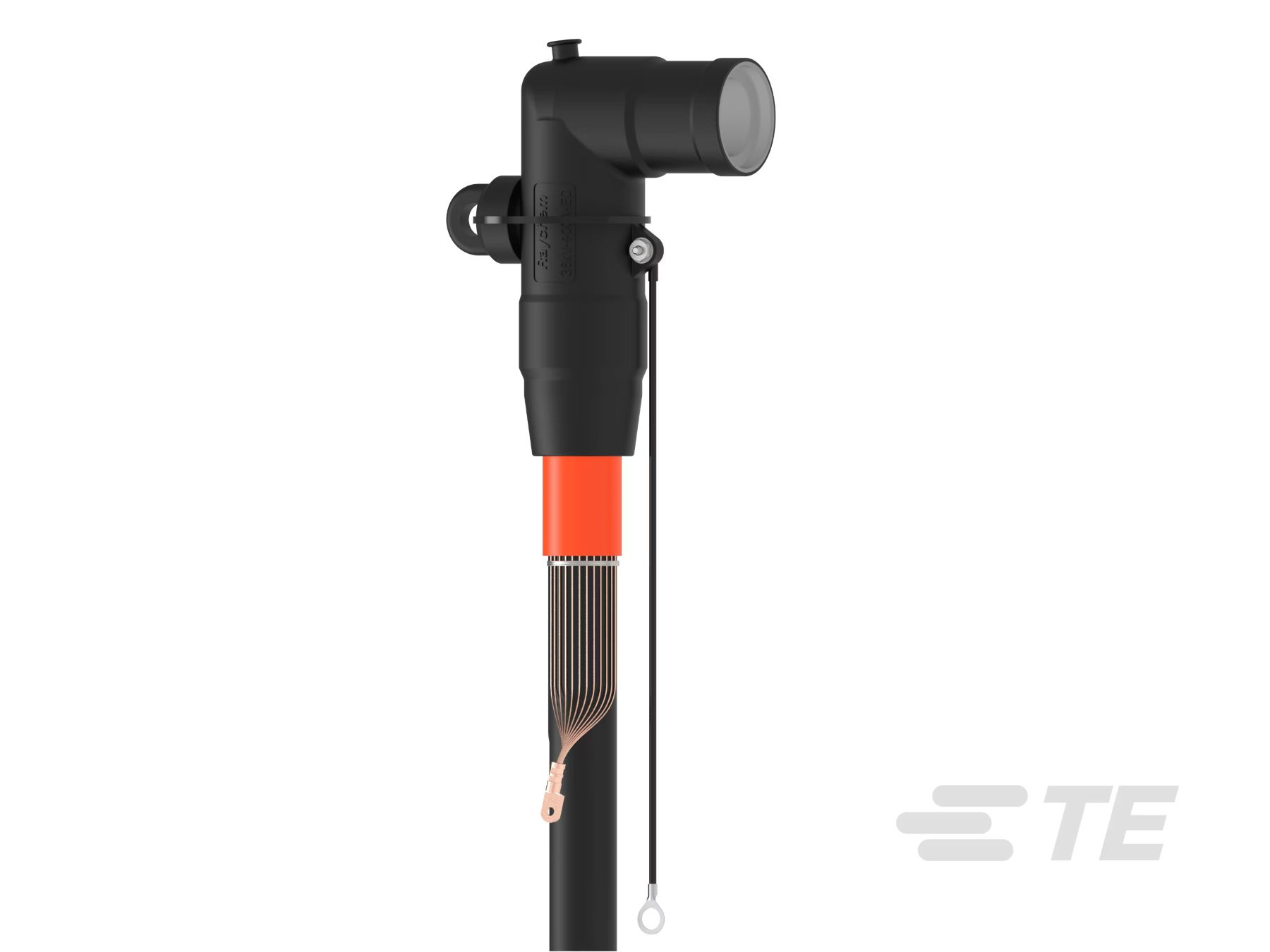

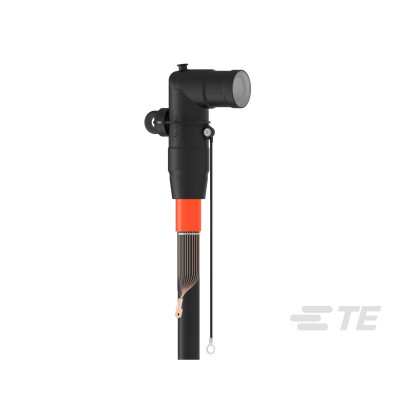

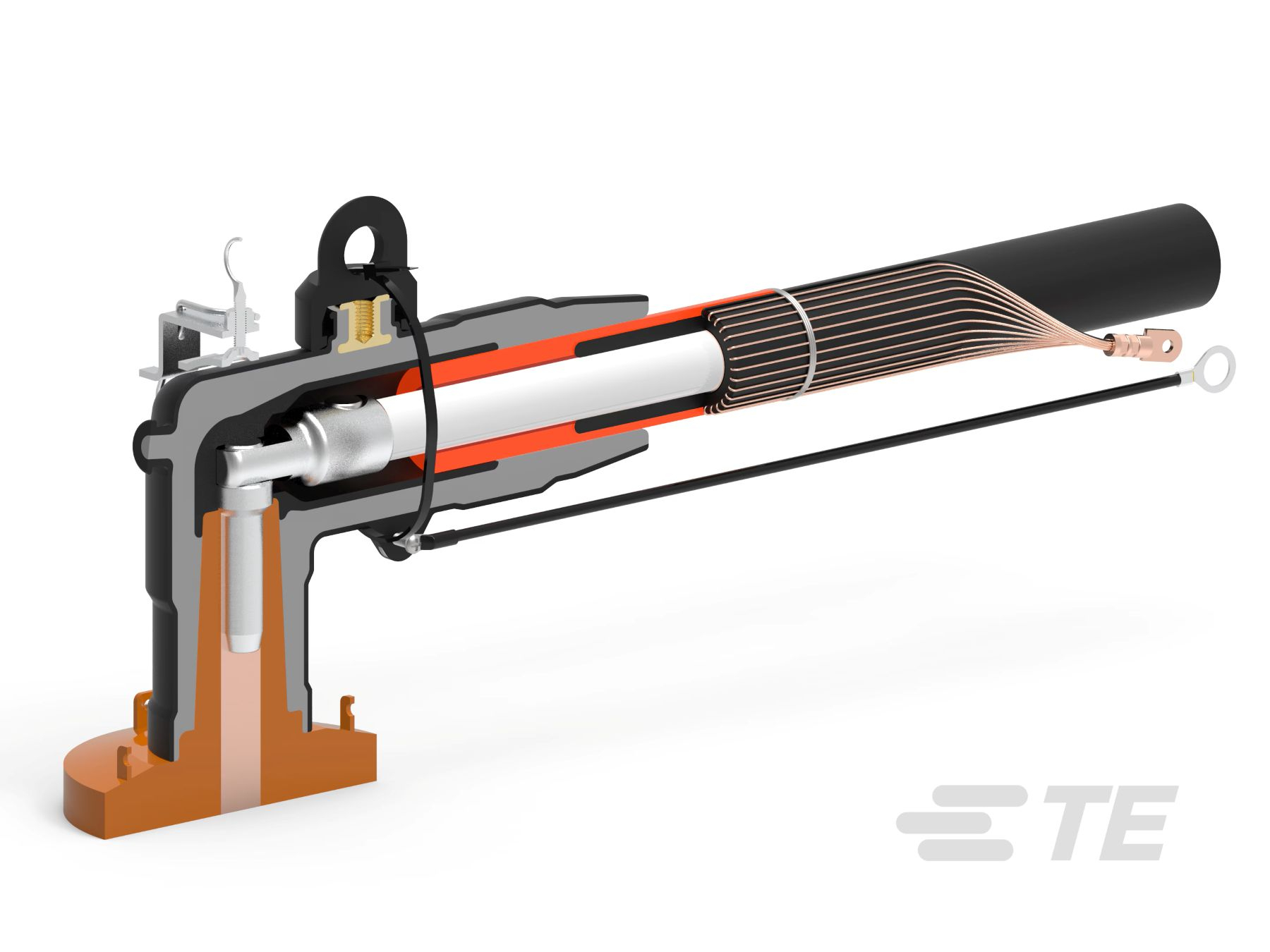

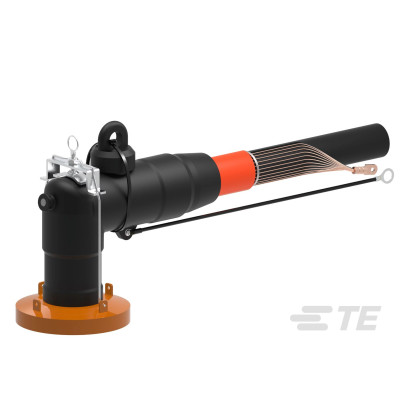

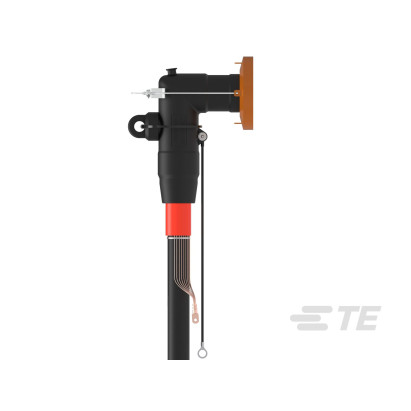

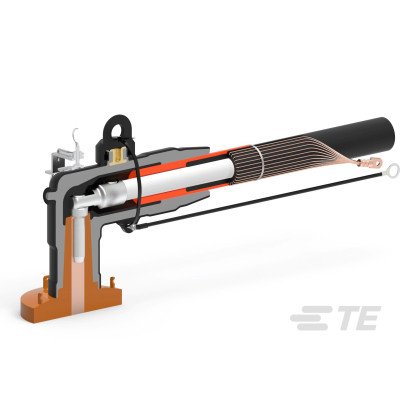

Tyco 24kV Type B Separable Connector

Designed to facilitate the easy connection and disconnection of single core copper wire screened XLPE cables to medium voltage equipment like transformers and switchgear

  • The insulation of the connector is made of a highly modified silicone rubber characterised by high tracking resistance, elongation at break and non flammability
  • The screened connector need not be removed for over sheath testing
  • The compact design supports the use of double T connections inside standard terminal boxes
  • Easily accessible rear plug with capacitive test point
  • Available with CU or AL compression lugs or mechanical connectors
Technical Data
  • The screened cable connector exceeds CENELEC HD 629.1 S1 requirements which includes BS, VDE and other international specifications
  • Maximum System Voltage 36kV
  • Continuous Current 400A
Order
Part Number Cross Section Diameter Price Quantity
RSES-645B 120-240mm 24.5 - 32mm £624.75
RSES-645D 185-300mm 30.8 -39.6mm £624.75
