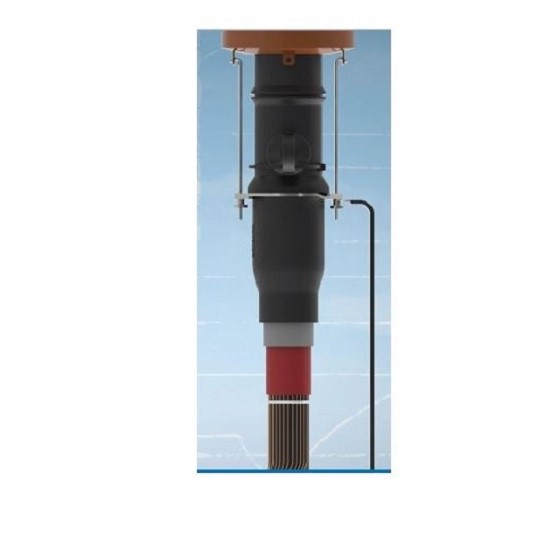

Tyco 24kV Type A Straight Connector


from only POA

Tyco 24kV Separable Connectors for Type A Bushings - Straight

Designed to facilitate the easy connection and disconnection of single core copper wire screened XLPE cables to medium voltage equipment like switchgear and transformers

  • Manufactured from crosslinked EPDM and protected with a minimum 3mm moulded conductive shield connected to earth
  • These dead break adaptors are suitable for indoor and outdoor applications
  • Their wide application range to cover several different cable cross sections without the need for additional cable adaptors
  • Available in straight and elbow configuration
  • Supplied with high strength bimetallic compression connectors to connect copper and aluminium conductors
Technical Data
  • The screened cable connector exceeds CENELEC HD 629.1 S1 requirements which includes BS,VDE and other international specifications
  • Maximum System Voltage 24kV
  • Continuous Current 250A
  • Separable connector system for interface A bushing 12-24kV 250A

** For Al class 1 & Cu class 5: 25mm2; For Cu class 1: 10mm2

Order
Part Number Conductor Size Diameter Over Core Insulation Price Quantity
RSSS-525A 16mm² ** 12.7mm – 19.2mm POA
RSSS-525B 25-95mm² 17.9mm – 25.0mm POA
RSSS-525C 70-95mm² 17.9mm – 25.0mm POA
RSSS-525D 70-150mm² 21.9mm – 28.5mm POA
