Time Limiting Fuses

Show VAT

from only £23.03 Ex VAT£27.64 Inc VAT

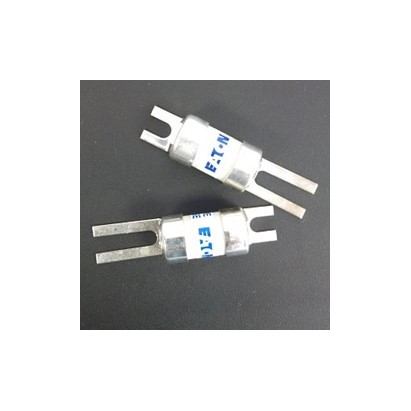

Time Limiting Fuses, LTFL Series

Lawson type "L TFL" are used with current transformer trip release coils on circuit breakers.

The components are for use with current transformer trip release coils of circuit-breakers, where each protection element is fitted with one conventional a.c. trip release coil. They are primarily for use with standard 6.6 kV, 11 kV and 20 kV distribution switchgear but may be used with other circuit-breakers.

For use with current transformer releases on circuit breakers
Time limiting fuse link
Low voltage
15 x 58mm
ESI 12-6
Offset bolted tags (slotted)
ESI 12-6 modifies the breaker tripping characteristic

Technical Data

Product weight 14.8g
Connection: Bolted

Datasheets

LTFL Datasheet

Order

Part Number	Wolseley Code	Lawson Code	Ampage	Description	Price Ex VATInc VAT
XF3	CJ1526	3a	LTFL TIME LIMITING FUSE	XF3	£23.03£27.64
XF5	CJ1522	5a	LTFL TIME LIMITING FUSE	XF5	£23.03£27.64
XF7.5	CC4026	7.5a	LTFL TIME LIMITING FUSE	XF7.5	£23.03£27.64
XF10	CJ1519	10a	LTFL TIME LIMITING FUSE	XF10	£23.03£27.64
XF12.5	CC4019	12.5a	LTFL TIME LIMITING FUSE	XF12.5	£23.03£27.64
XF15	CC4020	15a	LTFL TIME LIMITING FUSE	XF15	£23.03£27.64
