TYCO HV Connectors 11-36kV

Show VAT

from only £9.56 Ex VAT£11.47 Inc VAT

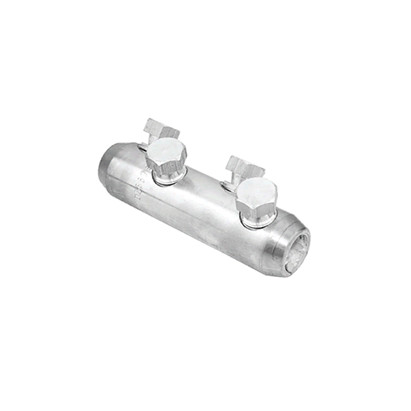

Tyco HV Aluminium Mechanical Connectors for copper & aluminium conductors

Designed to connect two HV conductors inline without the need for crimping

High tensile tin plated aluminium alloy
Solid moisture block between conductors
Larger sizes available on request
Conductor size based on circular stranded copper and aluminium

**THE BSMV-185/400 IS A DISCONTINUED ITEM – PRICE IS WHILST CURRENT STOCKS LAST** (THIS ITEM IS SUPERSEDED BY BSMV-150/400)

Technical Data

36kV Rated
Tested to IEC61238-1

Datasheets

TE - HV Connectors

Order

Part Number	Wolseley Code	Alternative Part Number	Blocked	Conductor Type	Conductor Size	TE Part Number	Price Ex VATInc VAT	Quantity
BSMB-10/35	CJ2344	Cu / Ali	10-35mm²	Yes		F37826-000	£9.56£11.47

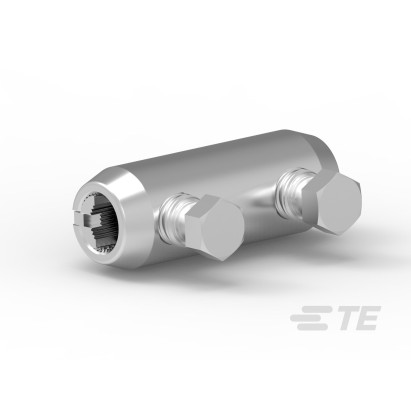

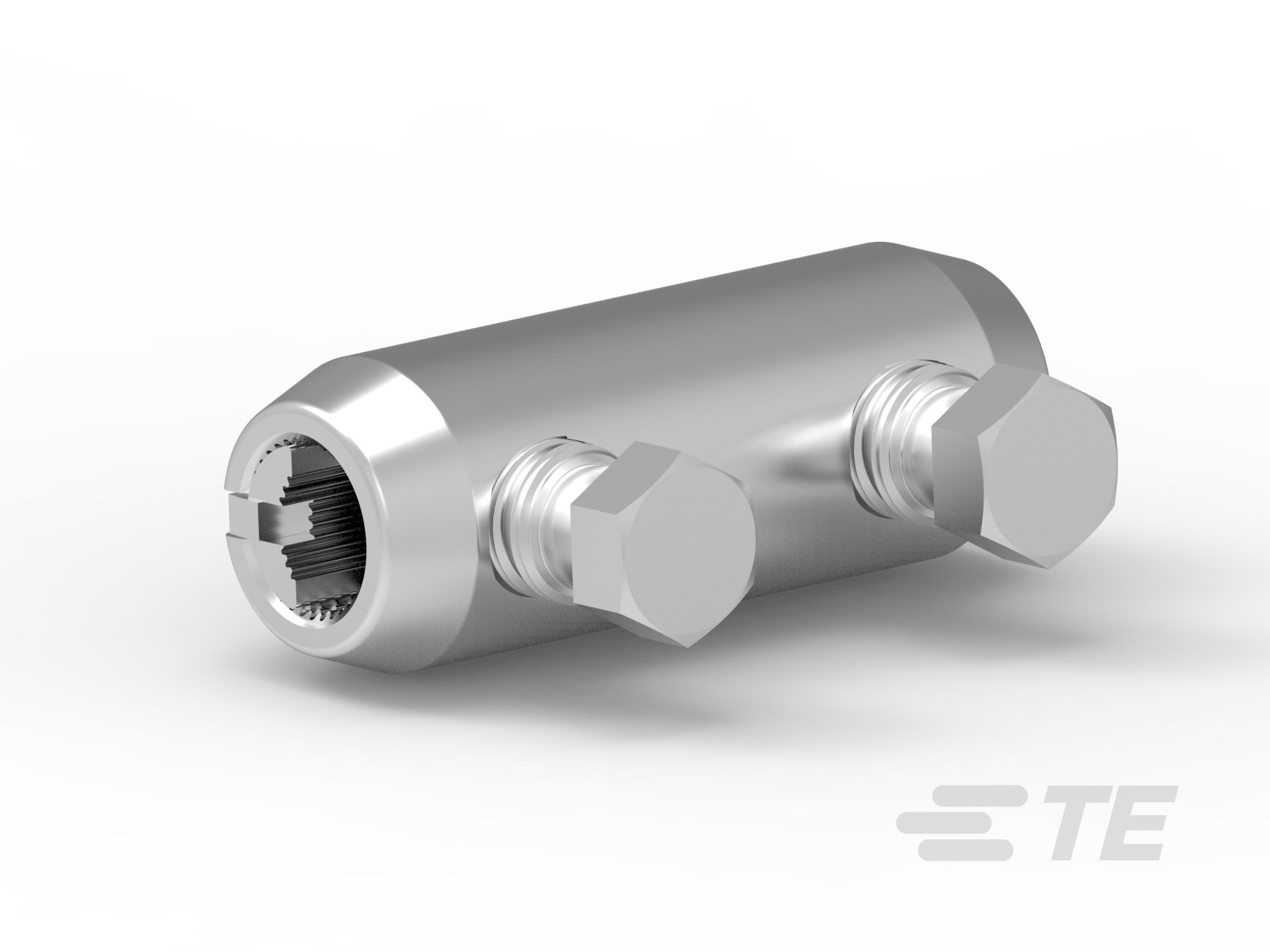

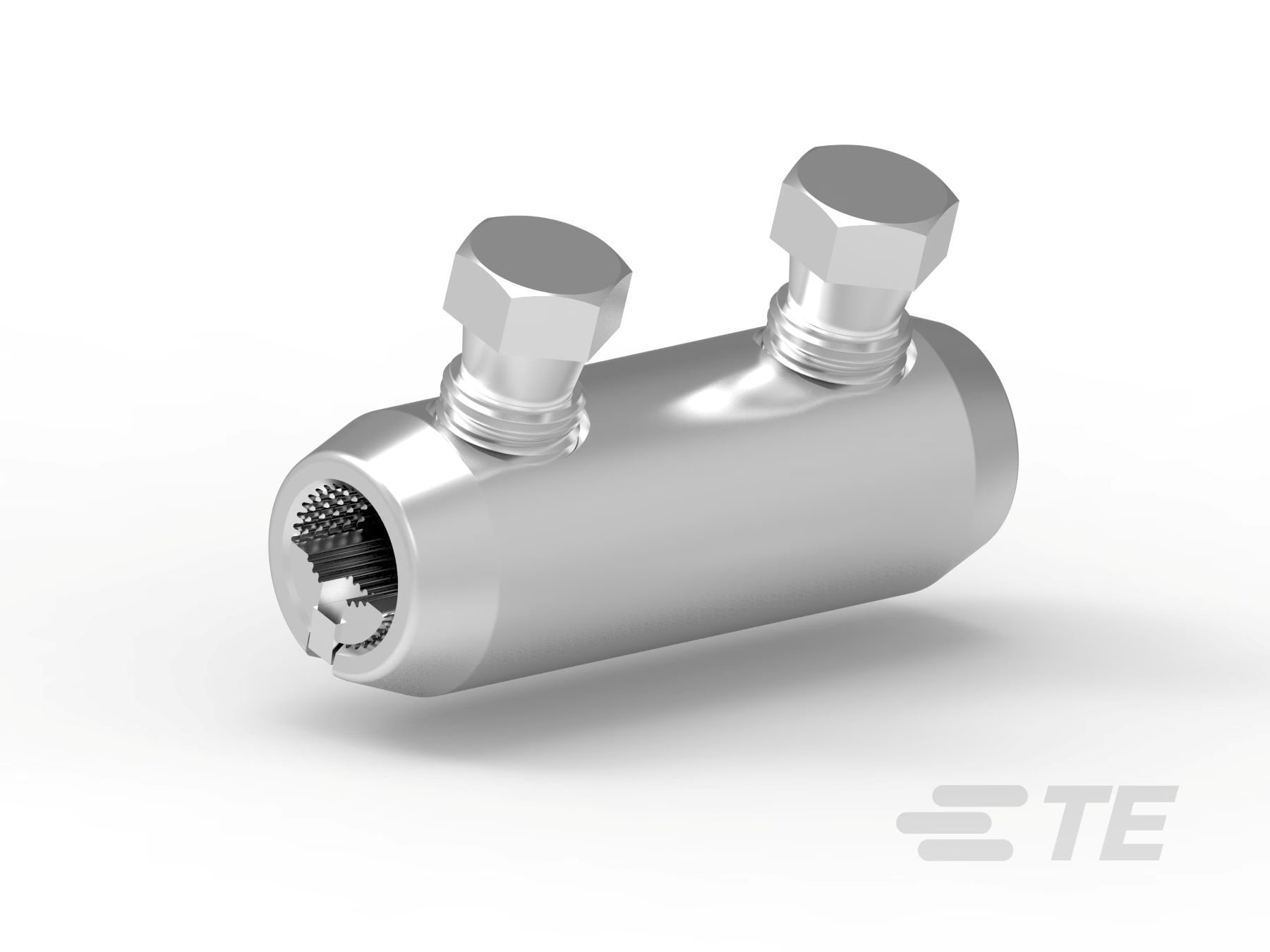

BSM-25/95	CJ2342	Cu / Ali	25-95mm²	Yes		F40757N001	£12.18£14.62
BSMB-35/150	CJ2351	Cu / Ali	35-150mm²	Yes		E05256N001	£15.54£18.65
BSM-95/240	CJ2343	Cu / Ali	95-240mm²	Yes	-		£22.00£26.40
BSMB-95/240	CJ2358	Cu / Ali	95-240mm²	Yes		C26220N001	£21.76£26.11
BSMB-95/300-GB	CJ2359	Cu/ Ali	95-300mm²	Yes	BAH-022080042	2832452-1	£26.78£32.14
BSMB-120/300	CJ2346	Cu / Ali	120-300mm²	Yes	-	C73113N001	£28.88£34.66
BSMB-150/400	CJ2347	Cu / Ali	150-400mm²	Yes	-	2107832-1	£40.95£49.14
BSMB-185/400		Cu / Ali	185-400mm²	Yes			£38.43£46.12

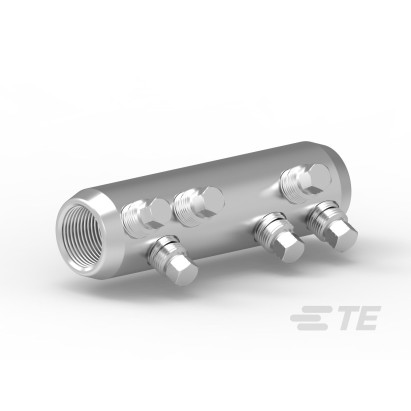

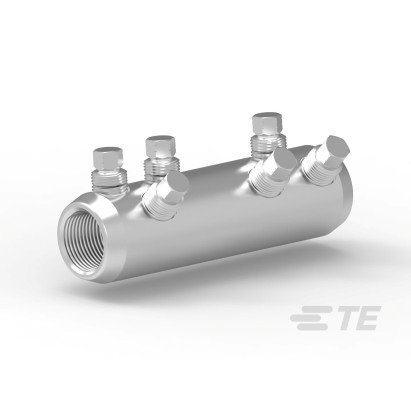

BSMB-500 MK2	CJ1260	Cu / Ali	500mm²	Yes	-	2107355-1	£59.85£71.82
BSMB-630 MK2	CJ1261	Cu / Ali	630mm²	Yes	-		£95.55£114.66
BSMB-800 MK2	CJ2356	Cu / Ali	800mm²	Yes	-	2107308-1	£152.25£182.70
BSMB-1000 MK2	CJ2345	Cu / Ali	1000mm²	Yes	-	2062792-1	£156.45£187.74
BSMV-95/240	JZ0819	Cu / Ali	95-240mm²	Yes	BAH-022100023		£71.40£85.68
BSMV-120/300	CJ2360	Cu / Ali	120-300mm²	Yes	-		£86.10£103.32
BSMV-150/400		Cu / Ali	150-400mm²	Yes	-		£97.65£117.18
**BSMV-185/400	JZ0880	Cu / Ali	185-400mm²	Yes			£49.35£59.22
