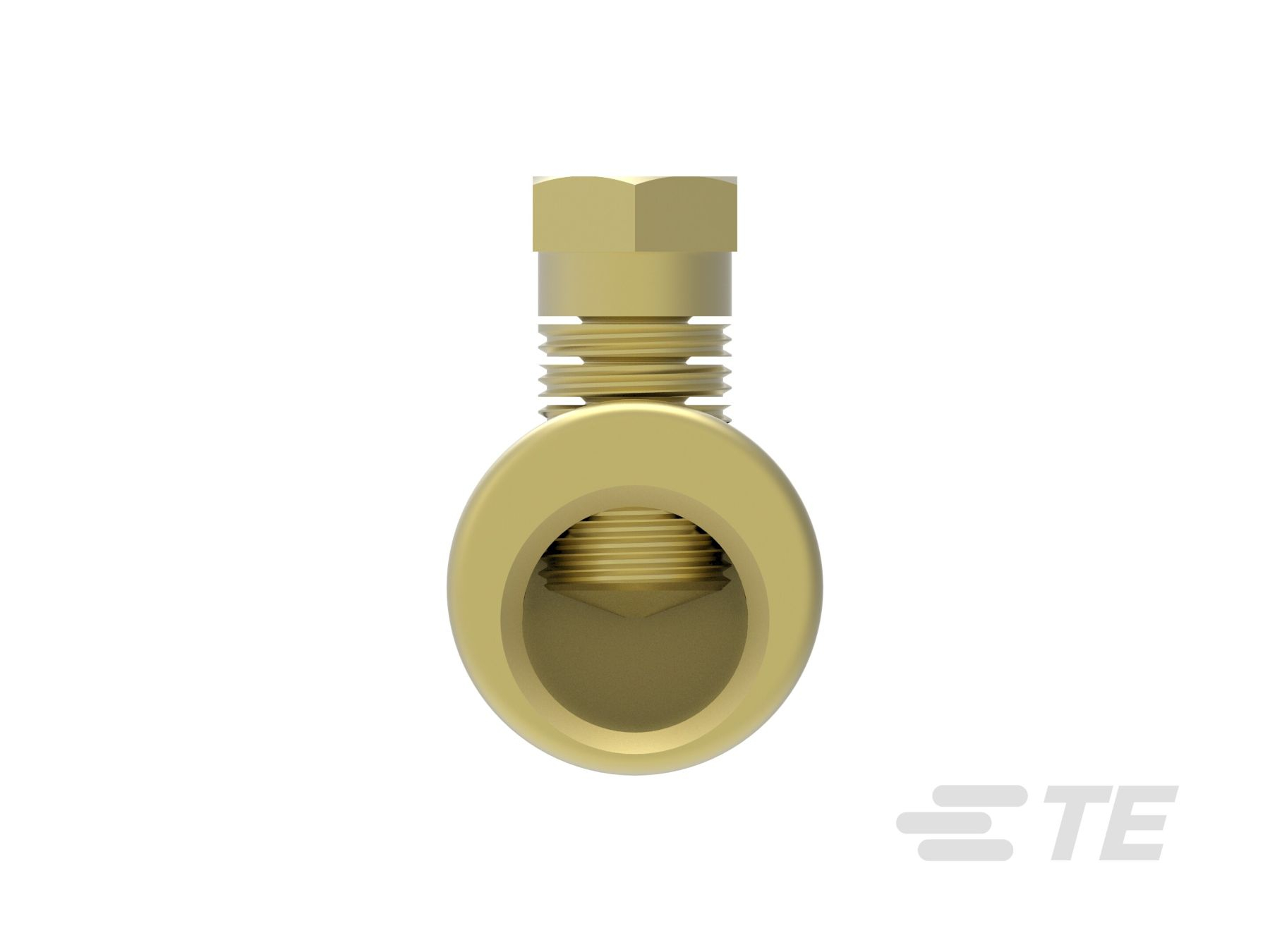

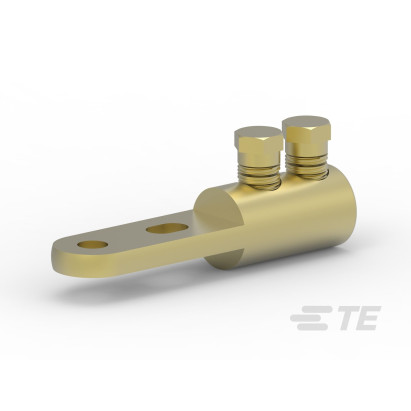

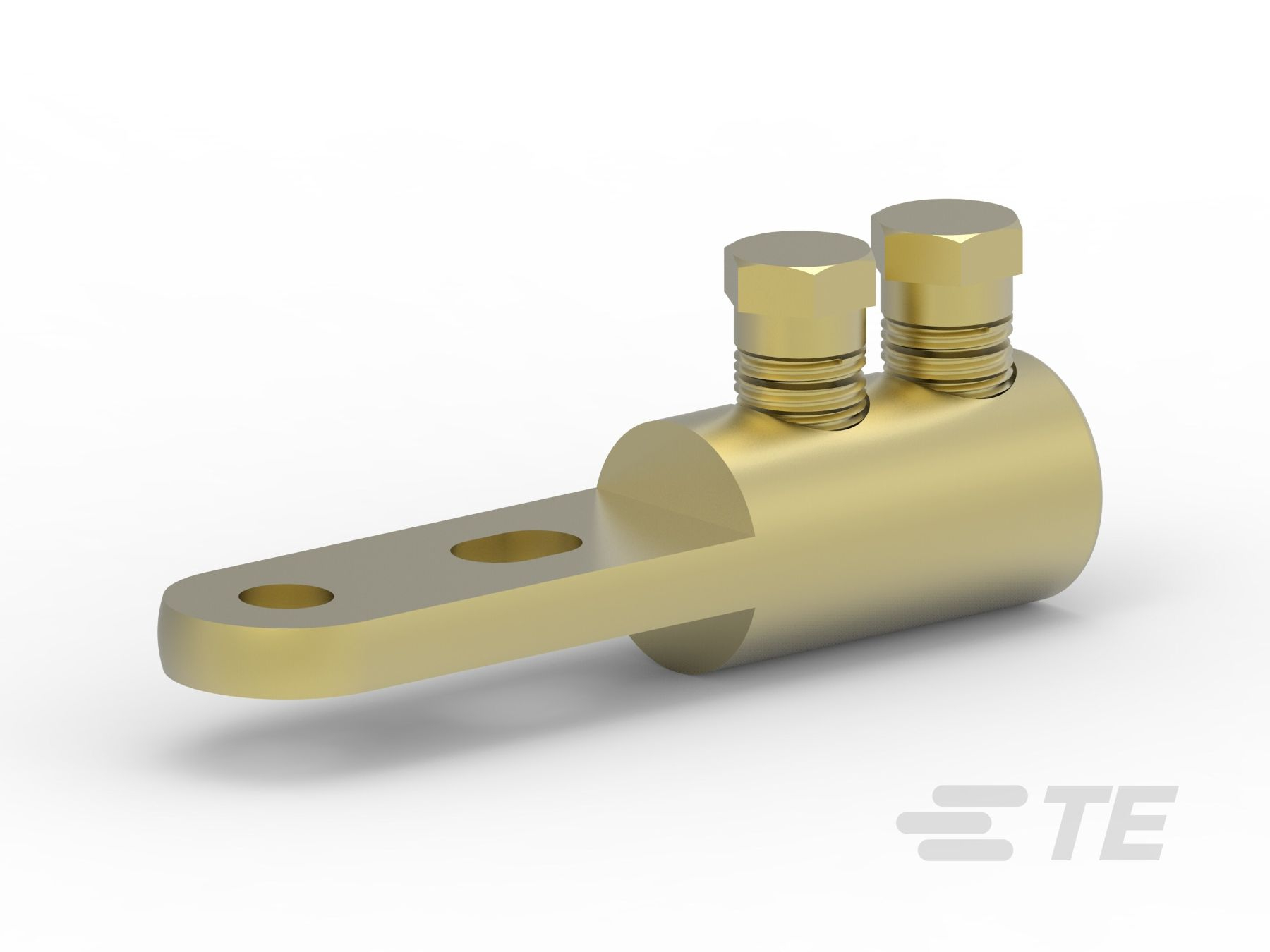

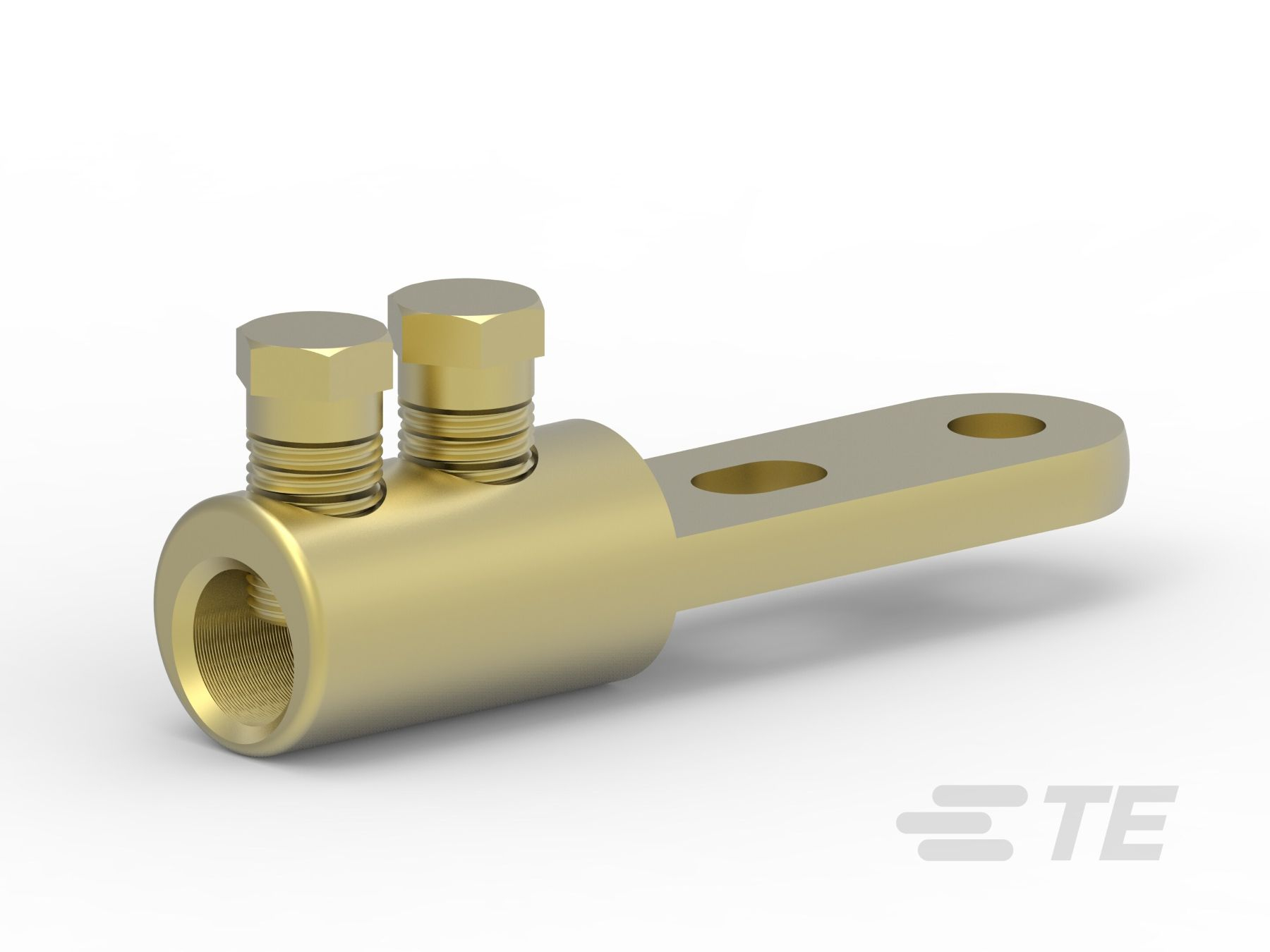

TYCO HV Lugs - 2 Bolt


from only £44.05 Ex VAT

Tyco Brass HV 2 bolt mechanical lugs for copper & aluminium conductors

Designed to be connected onto a conductor to facilitate the termination of the cable without the need for crimping

  • Shear bolt technology to ensure a good electrical connection
  • Solid moisture block between palm and barrel
  • Supplied with range taking bolts
  • Solid moisture block between palm and barrel
  • Smooth profile prevents damage to insulation or sealing sleeves
  • Manufactured by industry leaders Tyco Electronics
Technical Data
  • 33kV Rated
  • Designed to meet BS4579 Part 1
Order
Part Number Wolseley Code Additional Part Number Palm Hole Diameter Conductor Type Conductor Size TE Part Number Price Ex VAT Quantity
VETB21-OHUTB CJ2734 BAH-024030075 13mm Cu/Ali 95-240mm² £44.05
VETB28-OHUTB CJ2736 BAH-024030090 13mm Cu/Ali 185-400mm² 816510-000 £87.41
VETB33-OHUTB CJ2737 BAH-024030185 13mm Cu/Ali 400-630mm² CA3389-000 £183.75
VETB37-OHUTB CJ2738 BAH-024030193 13mm Cu/Ali 630-800mm² CA4459-000 £194.25
