Single Pole Cut Out – Series 8


from only £16.75

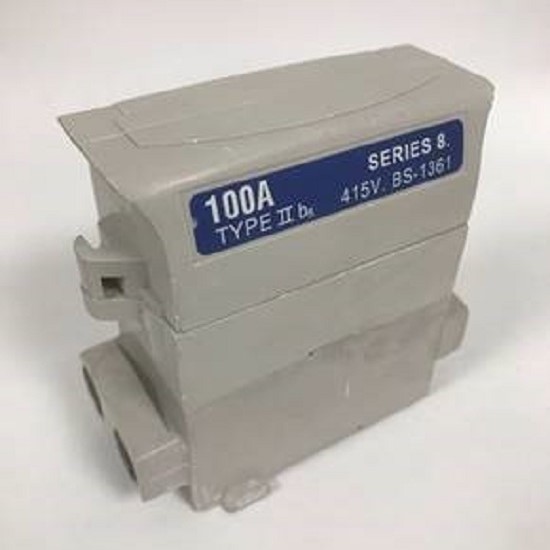

WT Henley Single Pole Cut Out – Series 8

Designed for Combined Neutral Earth Systems (CNE) or alternatively Separate Neutral Earth Systems (SNE), rated up to 100A and fully compliant with BS 7657:2010

Based on proven technology for earlier models, Series 8 will suit both Combined Neutral and earth Systems (CNE) and Separate Neutral and Earth Systems (SNE). There are options available for single, twin or three phase installations. In addition, a modular option is available that incorporates optional reverse polarity when used in conjunction with Paper Lead Cables. Backboards are also available for those occasions when replacing old Series 5 Installations.

  • The Series 8 House Service Cut-Out range from WT Henley has been designed to be simple to install and use
  • Series 8 is produced in track resistant, high performance, Glass Reinforced Polyester (DMC)
  • The Series 8 gives installers more room with larger protection chambers providing improved entry configurations for varied cable installations.
  • The range is built upon the proven design and reliability of the popular Series 7 range
  • Designed to encompass all scenarios with facilities for PME and SNE earthing, Reverse Polarity and both Single Pole and Triple Pole installations using common components
  • Modular and reversible styles to encompass all installation situations
  • New anti-tamper technology for un-used cable entries
  • Anti-breakout feature on wood screw fixings
  • Incorporates improved and simplified sealing facilities for all carriers and protection chambers.
  • New interlocks on all components, now enable fast and accurate assembly onto back-boards, without traditional alignments problems
  • As part of the modular concept, the company has designed a new 100A Connector Box which can be used independently or as a neutral/earth block as part of a Series 8 set for use on the right or left hand side of an installation
  • Improved security sealing facility on all carriers/bases
  • Larger, easier to fit protection chambers with improved entry configurations
  • Reversible Single Pole and Neutral Earth design is also available where required



Technical Data
  • Fully compliant with BS 7657: 2010
  • All Cutouts are moulded in high quality, tough, flame retardant DMC which has been specially formulated in-house by WT Henley
Order
Part Number Model/Series Description DNO Approved Price Quantity
54132-11 Series 8 100A SP Cut Out (CNE & SNE Reversible Style) – EXCLUDES FUSE UKPN & WPD £16.75
