33kV Single Core Unarmoured XLPE Cable


from only £197.40 Ex VAT

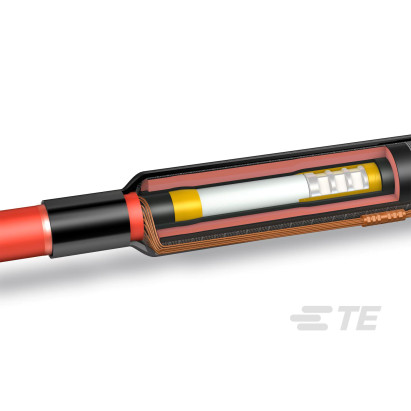

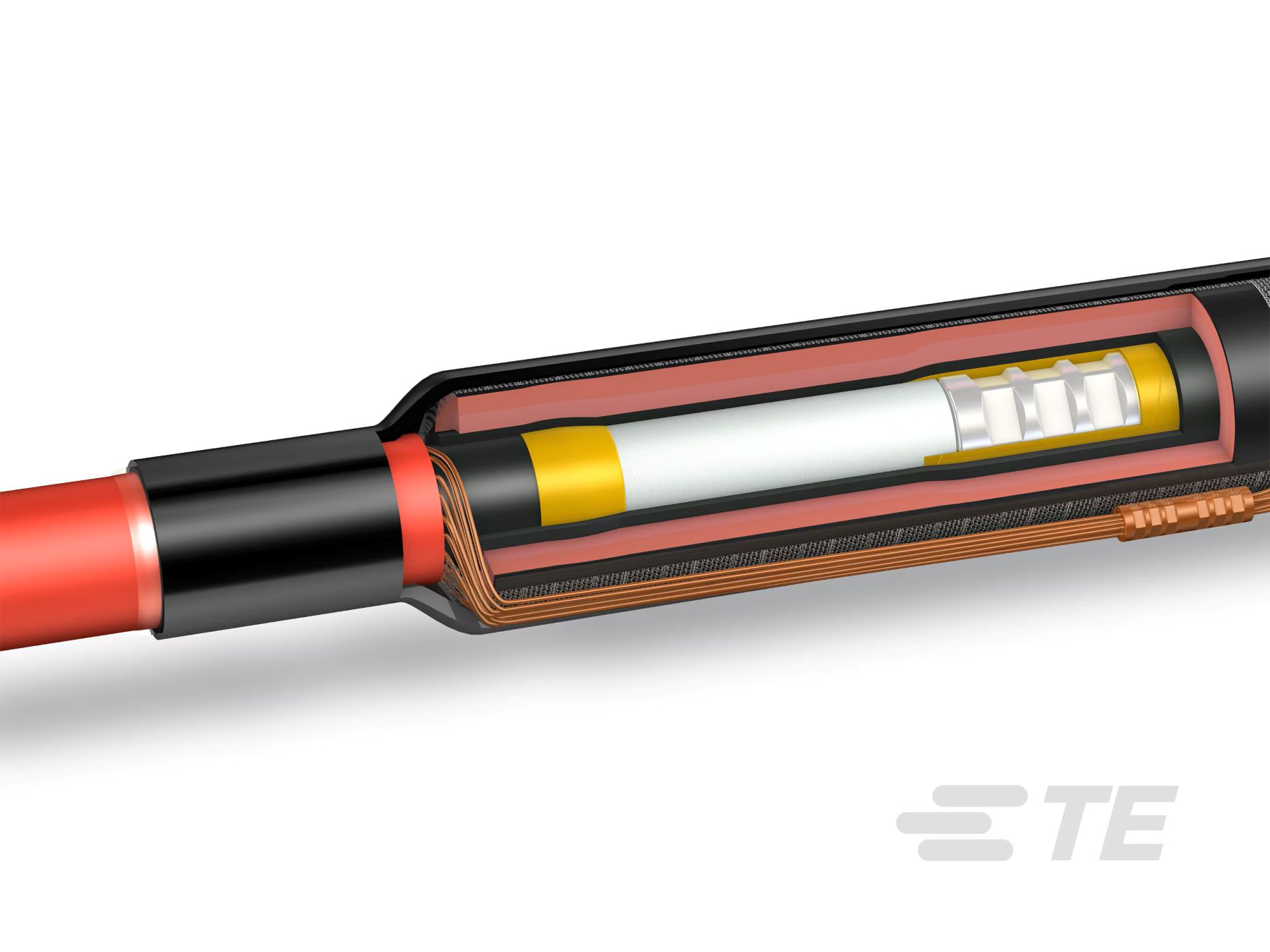

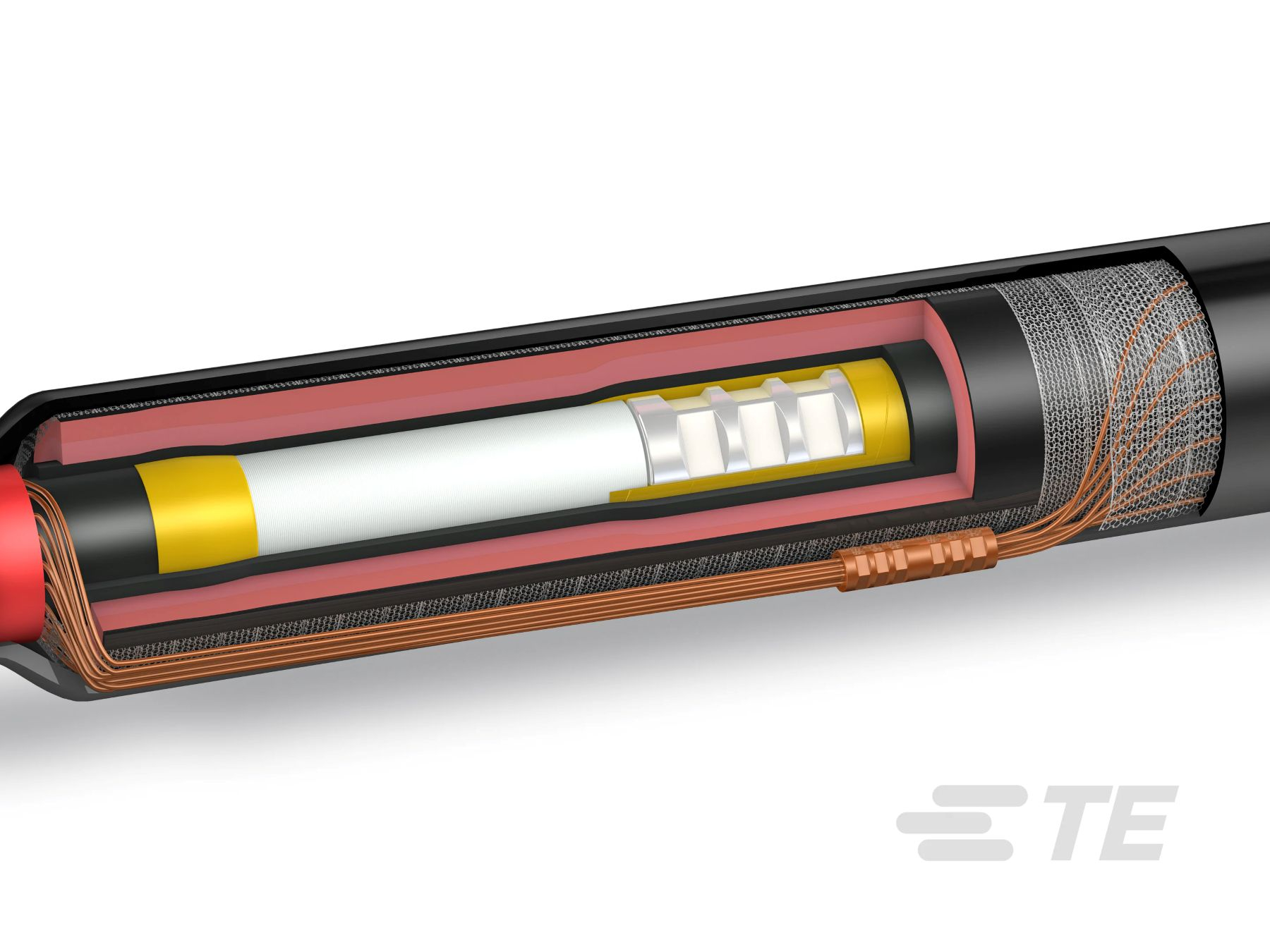

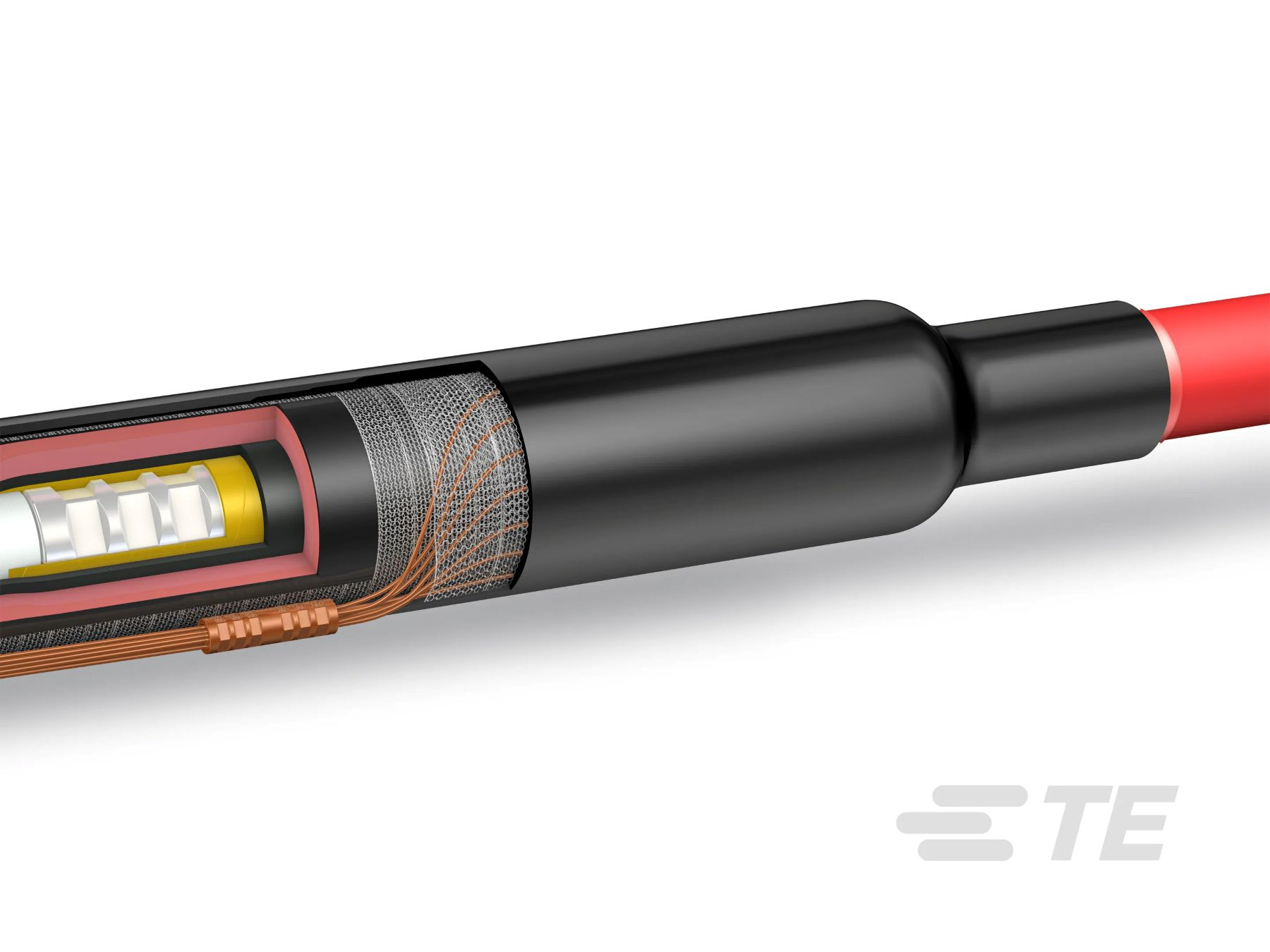

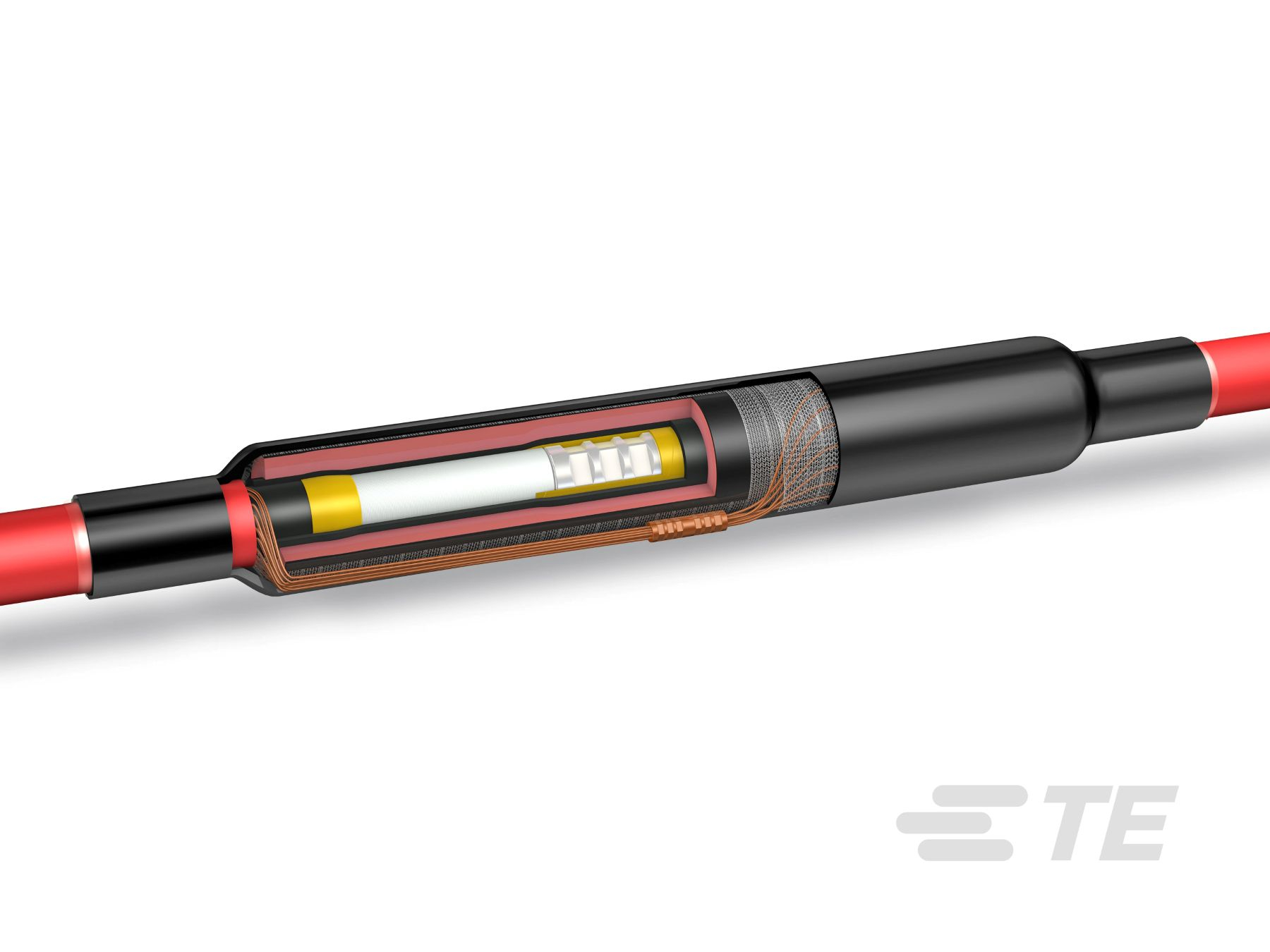

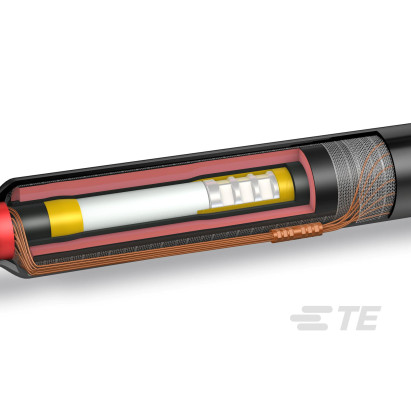

Tyco Inline heat shrink joints for single core unarmoured XLPE cables

Designed to join inline single core 33kV unarmoured XLPE cables

  • Triple extruded body provides a pre-engineered jointing unit with less kit components
  • Comprises of: Heat shrinkable outer conductive layer with a heat shrinkable insulation layer and elastomeric insulation layer
  • Highly reliable U.K industry standard joint
  • Optimised heat transfer due to reduced thermal capacity
  • Mechanical or crimp connectors available on request
  • Unlimited shelf life - reduces cost and simplifies logistics
  • High recovery forces
  • Reduced installation time
  • Kit contents - Stress control and insulation tubing, wire shield, outer heat shrink sleeving, void, stress and moisture tapes
  • Represents a new generation of TE Connectivity heat shrinkable jointing technology
  • Based on a triple-extruded heat shrinkable elastomeric joint sleeve component
  • System is suitable for paper and polymeric cable constructions and is designed to accommodate jointing needs such as mechanical shear bolt connectors
  • Reduced diameter provides a slim, space saving design

*EXCLUDES CONNECTORS*

Technical Data
  • Tested in accordance with CENELEC specification HD 629.1 or IEC 60502-4 for joints
  • Network Rail Approved
Order
Part Number Wolseley Code Conductor Size TE Part Number Price Ex VAT Quantity
SXSU-6122 CJ2719 35-150mm² 310527-011 £197.40
SXSU-6132 CJ2720 150-300mm² 632893-011 £213.15
SXSU-6141 CJ2721 185-400mm² 816571-011 £227.85
SXSU-6142 CJ1317 400-630mm² 584493-011 £248.85
SXSU-6151 CJ2722 500-800mm² 873902-011 £330.75
SXSU-6161 CJ3136 800-1200mm² D63970-011 £456.75
