Single Core Unarmoured XLPE Cables With Mechanical Connectors


from only £196.35 Ex VAT

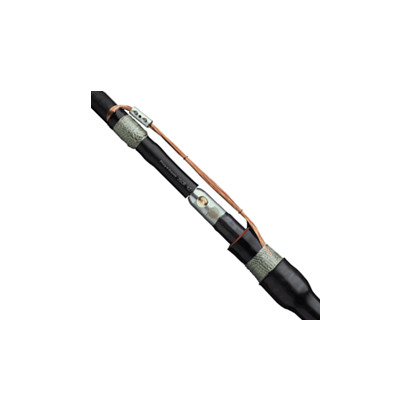

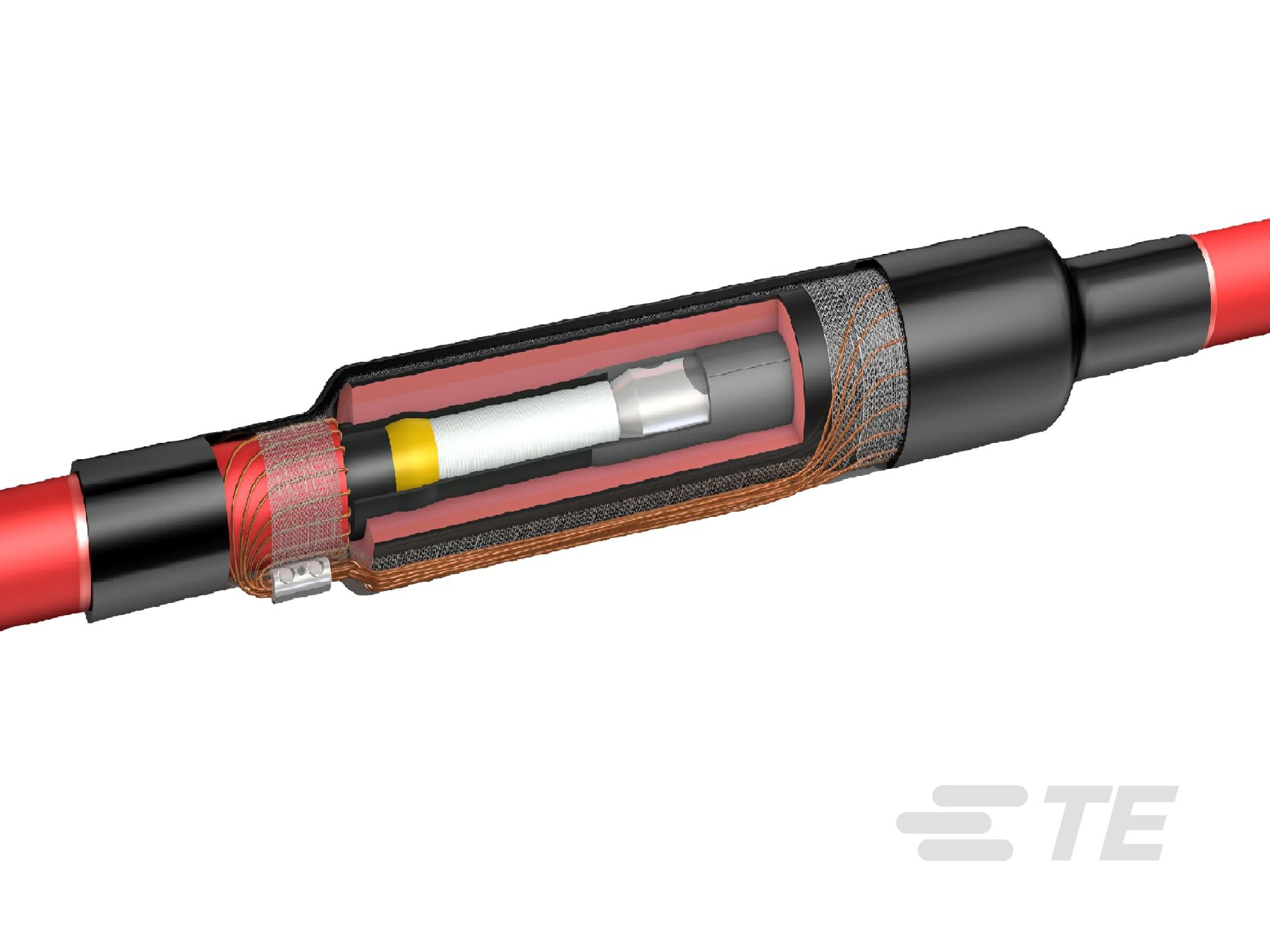

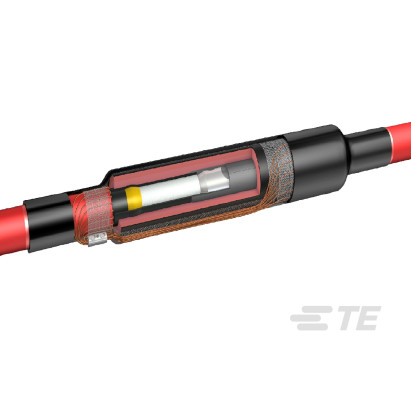

Tyco Single Core Unarmoured XLPE Cables - (with Mechanical Connectors)

Inline heat shrink joints for single core unarmoured XLPE cables

  • Designed to join inline single core 11kV unarmoured XLPE cables
  • Highly reliable U.K industry standard joint
  • Kit contents - Stress control and insulation tubing, outer heat shrink sleeving, mechanical connectors, void,stress and moisture tapes
Technical Data
  • Exceeds international performance standards including CENELEC HD 629 or IEC 60502-4 for joints
  • Network Rail Approved
Order
Part Number Wolseley Code Conductor Size TE Part Number Price Ex VAT Quantity
MXSU-3111 35-95mm² £196.35
MXSU-3121 CJ2566 70-150mm² £203.18
MXSU-3131 CJ1286 95-240mm² 691269-011 £206.85
MXSU-3132 CJ2567 150-300mm² 233200-011 £219.19
MXSU-3141 CJ2568 240-400mm² CP5161-011 £241.50
MXSU-3151 CJ2569 500mm² CA7354-011 £259.88
MXSU-3161 CJ2571 630mm² CB9319-011 £279.30
MXSU-3171 CJ3163 800mm² CR6798-011 £337.05
MXSU-3181 JZ1004 1000mm² CH5694-011 £371.18
