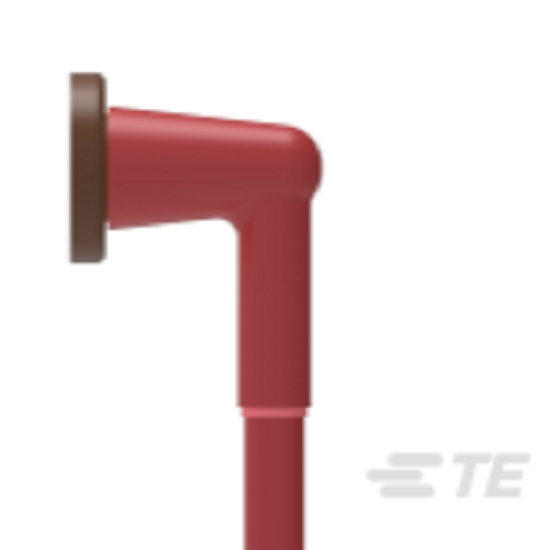

Right Angle Heat Shrink Boots

TE Connectivity Heat Shrink Insulating Bushing Boots for Right Angle Terminations up to 36kV

TE Connectivity (TE)’s Raychem heat-shrink insulating boots are moulded parts, that fit over the connection between a termination’s cable lug and an equipment bushing, to provide phase-to-phase and phase-to-ground insulation.  The non-tracking heat-shrink material has excellent erosion resistance, dielectric properties and environmental resistance, giving superb performance in areas of high humidity and electrical stress

• Heat shrink boots are moulded parts that fit over a connection between a cable lug and equipment brushing
• Used in switchgear and transformers where the clearances are insufficient for operation
• Protects against flash over e.g. due to rodents or extreme humidity
• Exceptional insulation and long term reliability even at high continuous operating temperatures
• Can be used to protect against flashover due to rodents or extreme humidity
• High-performance insulation material
• Excellent track and erosion resistance
• Quick and easy to install

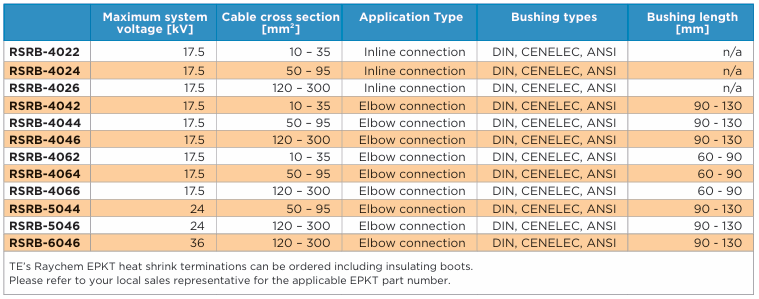

TE’s Raychem RSRB boots can be used with all TE’s Raychem heat shrink terminations and are quick and easy to install
