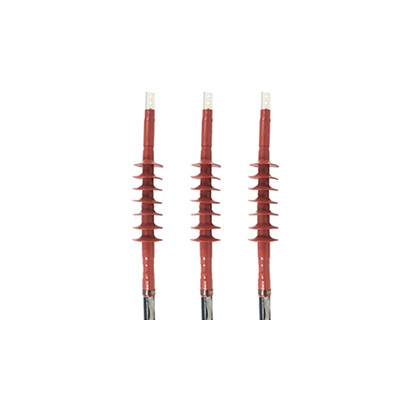

Tyco Single Core XLPE Cable H/Shrink Termination


from only POA

Tyco Single core heat shrink termination for XLPE cables for outdoor applications

Designed to terminate 52-72kV single core XLPE cables for outdoor applications to swichgear,cable boxes and pole top assemblies

  • Industry standard high reliability termination
  • Compact and modular design
  • Heat shrinkable stress control sleeves
  • No-tracking heat-shrinkable outer insulation
  • Water and corrosion resistant
  • Unlimited shelf life under normal storage conditions
  • Different creepage distance available
  • Designed for use with mechanical connectors
  • Kit contents - stress control tubes, insulating sleeves, mastics and rain sheds
Technical Data
  • Tested to IEEE 404 1993, EDF HN-68-S-20, SEN 24 1434, ESI 09-16 & IEC 840
  • Network Rail approved
Order
Part Number Sheds Creepage Length Voltage Price Quantity
IHVT-5212 2 1220mm 52kV POA
OHVT-5212 4 1430mm 52kV POA
IHVT-72 4 1600mm 72kV POA
OHVT-72 7 2200mm 72kV POA
OHVT-72-L 10 3000mm 72kV POA
