Tyco 52KV Single Core Unarmoured XLPE Cable Joint


from only POA

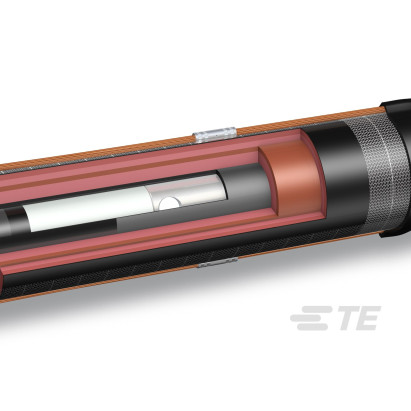

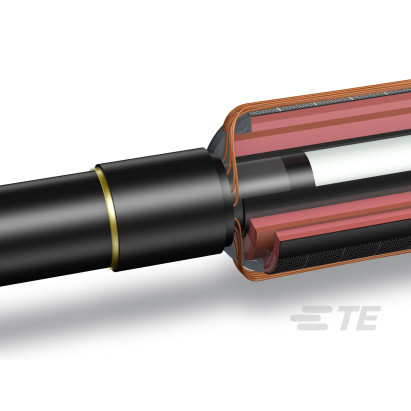

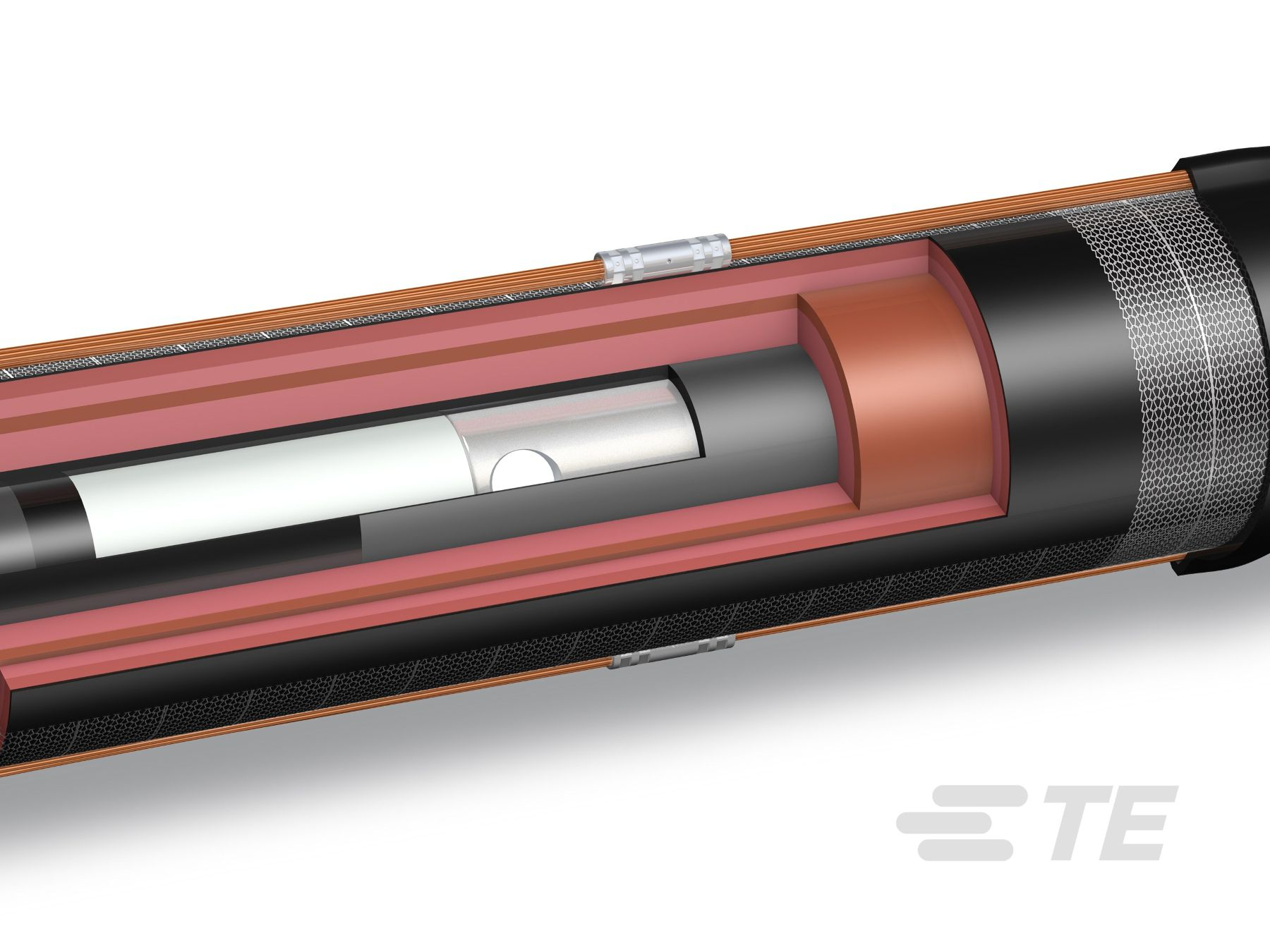

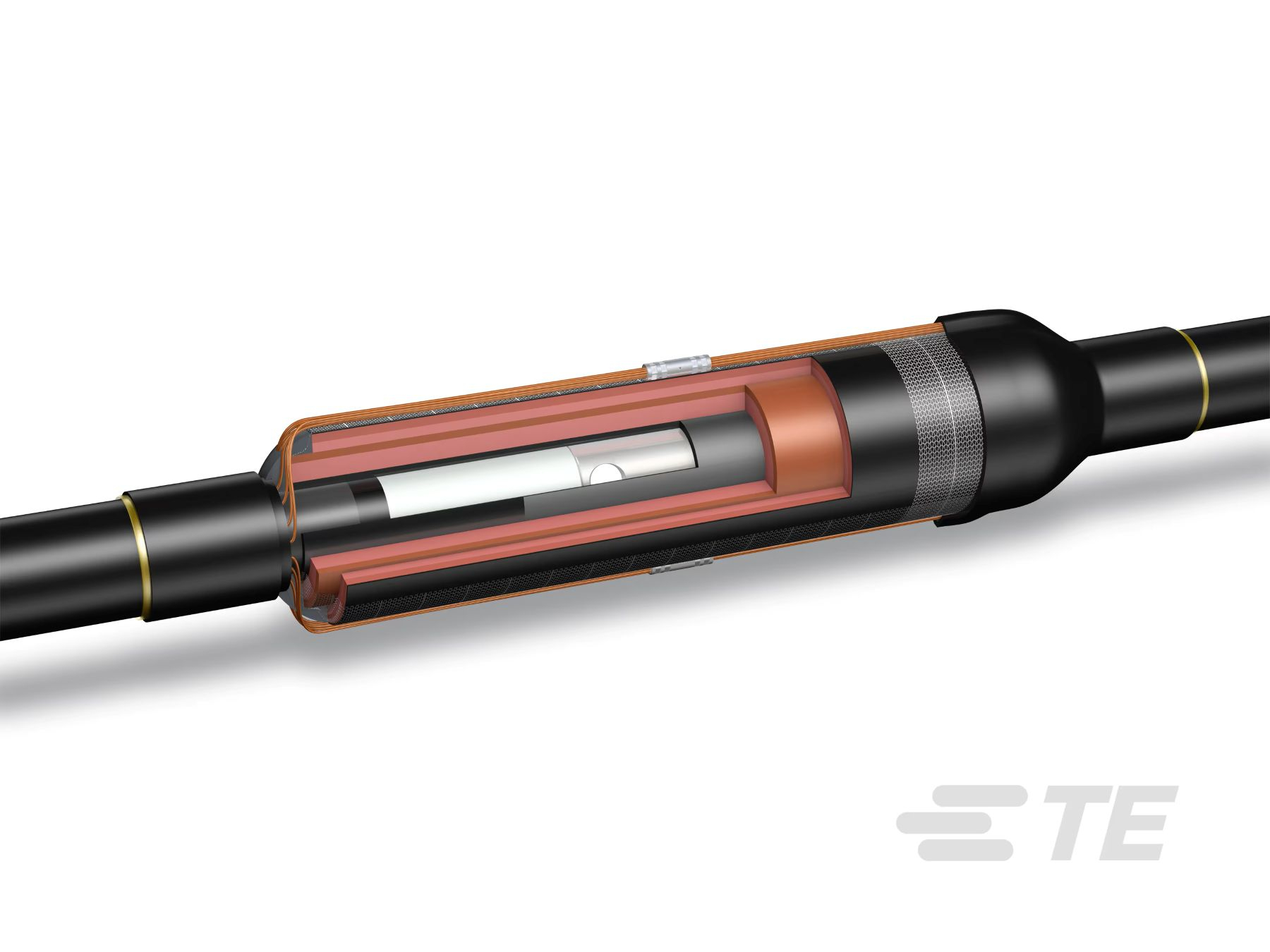

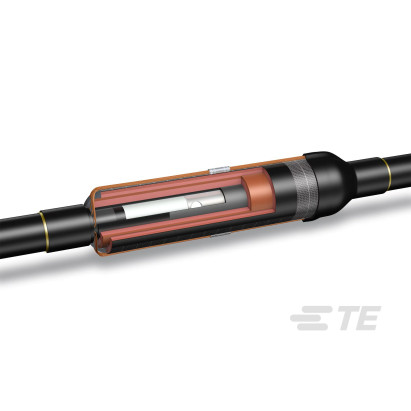

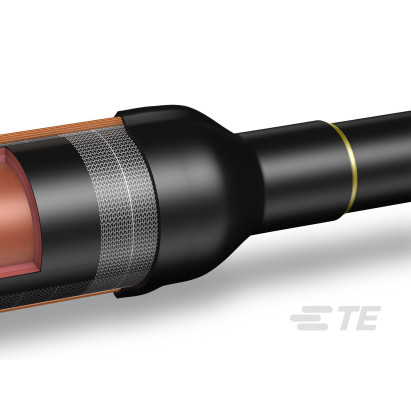

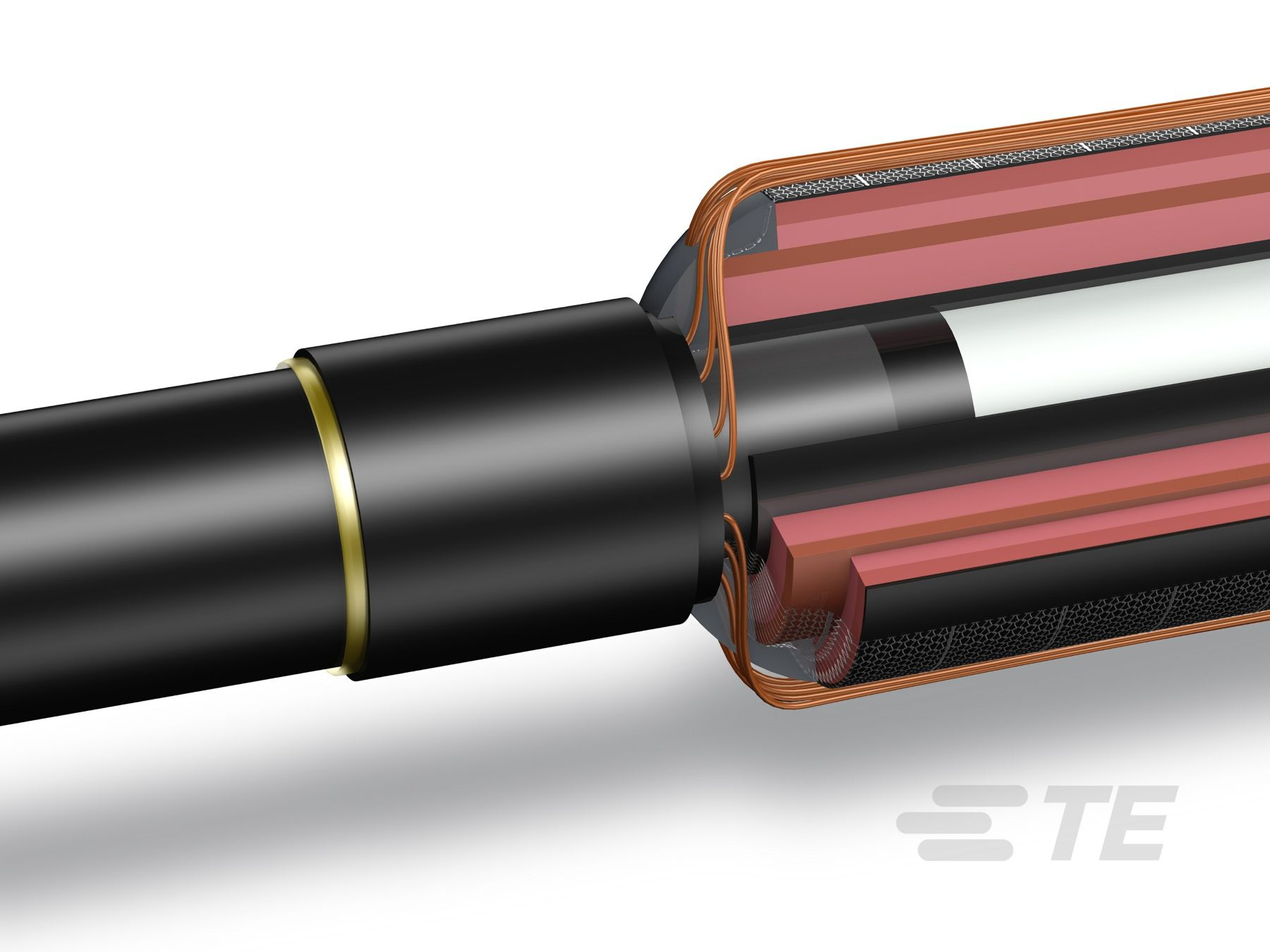

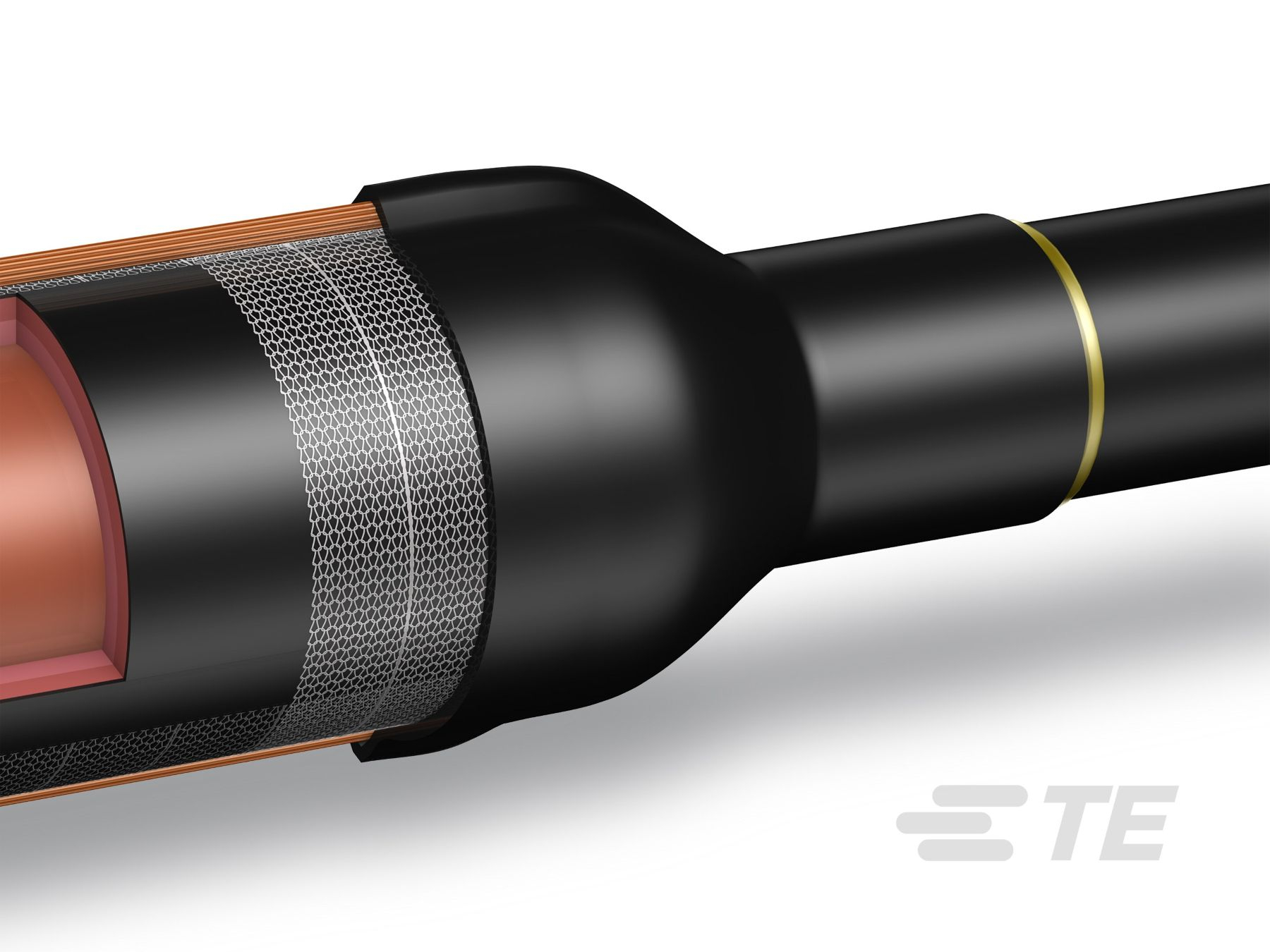

Tyco Inline heat shrink joints for single core unarmoured XLPE cables

Designed to join inline single core 52kV unarmoured XLPE cables

  • Industry standard high reliability joint
  • Range taking design
  • Unlimited shelf life
  • Designed for use with mechanical connectors
  • Kit includes - stress control tubes, insulating sleeves, mastics and outer heat shrink protection sleeve
  • Cable joints for cross bonding/shield break applications also available
  • Please contact your nearest sales office with details of the full cable specification prior to order
Technical Data
  • Tested to IEEE 404 1993, EDF HN-68-S-20, SEN 24 1434, ESI 09-16 & IEC 840
  • Network Rail approved
Order
Part Number Voltage Price Quantity
EHVS-5221 52kV POA
