Three Core Branch

Show VAT

from only £31.45 Ex VAT£37.74 Inc VAT

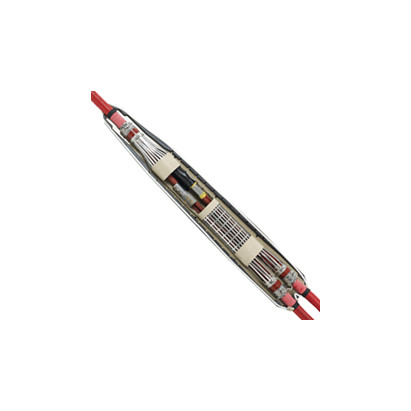

TE Connectivity Shrinkset - Branch universal jointing system for any combination of three core XLPE/ PILC/ PICAS cables

Designed to provide a universal system for three core 11kV branch jointing of polymeric or paper cables in one kit

1402 FR resin can be added to this kit for petrochemical environments
Easy to install
A universal system for straight and transition jointing of polymeric and paper cables in one kit
Complete system including shear-bolt mechanical conductor connectors
Proven for use in the UK since 1991
Kit includes - stress control tubes, mechanical connectors, insulating sleeves, armour continuity & plastic shell
Build up kits can be used for smaller conductor sizes and large size transitions

Technical Data

Tested in accordance with CENELEC specification HD 629.1 or IEC 60502-4 for joints
Proven and in service with UK electricity boards since 1991
Approved to electricity association specification ER C90

Datasheets

Order

Part Number	Wolseley Code	Resin Included	Conductor Size	To Suit	Price Ex VATInc VAT
SMOE61987	CJ1305	35-185mm² Poly / 95-185mm² Paper	–	YES	£1,354.50£1,625.40
SMOE61988	CJ1306	185-300mm² Poly / 185-300mm² Paper	–	YES	£1,569.75£1,883.70
SMOE61745	CJ2663	16-25mm² Poly / 16-50mm² Paper	Use with SMOE61987	-	£31.45£37.74
SMOE61760	CJ2665	95-150mm² Poly / 95-150mm² Paper	Use with SMOE61988	-	£34.02£40.82
SMOE61798	CJ2666	16-70mm² Poly / 16-70mm² Paper	Use with SMOE61988	-	£43.79£52.55
