Prysmian Cat 6 Cable
from only £118.00 Ex VAT

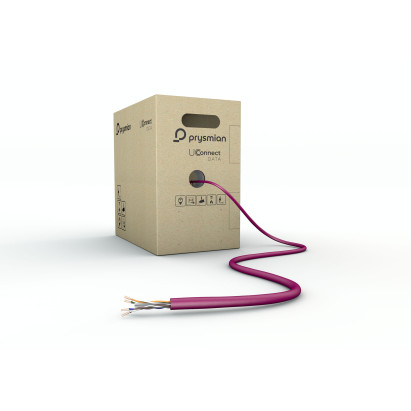

Prysmian UC400 Cat.6 U/UTP SD LSHF B2ca
U/UTP Installation cable
Construction:
- Conductor -Bare copper AWG24 (nom. 0.54)
- Insulation - Polyethylene, Ø 0.95 mm nom
- Twisting - 2 cores to the pair
- Cable lay up - 4 pairs to the core non-metallic cross separator (spline)
- Sheath - LSHF violet
Mechanical Properties:
Minimum bending radius: Installation 8 x D/ Installed 4 x D
Temperature range: During operation: -20°C up to + 60°C/ during installation: 0°C up to + 50°C
Application
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T;
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Power over Ethernet (PoE) / Type 1-4
Standards
EIA/TIA 568.2-D
ISO/IEC 11801 2nd ed; IEC 61156-5;
EN 50173-1, EN 50288-6-1
IEEE 802.3af / at / bt
Flame resistance
EN 50399: Class Dca s2 d2 a1
LSHF: IEC 60332-3; IEC 60332-1; IEC 60754-2; IEC 61034
