Plastic Wall Plugs
from only £0.55 Ex VAT
Plastic Wall Plugs
Suitable for all kinds of concrete and masonry substrate materials.
- Ideal for medium and lightweight applications.
- It may be beneficial to reduce drill diameter in soft materials.
- Available in a variety of colours, see options below
| SELECTION CHART - WHICH SIZE WALL PLUG FOR WHICH SCREW | ||
| (Subject to application) | ||
| Gauge | Metric equiv. | Masonry plug size |

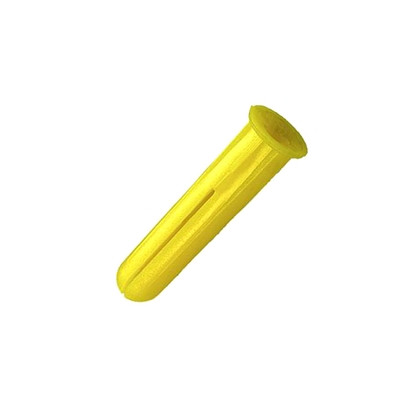

| 3 | 2.5mm | Yellow (5mm hole) |
| 4 | 3.0mm | Yellow (5mm hole) |

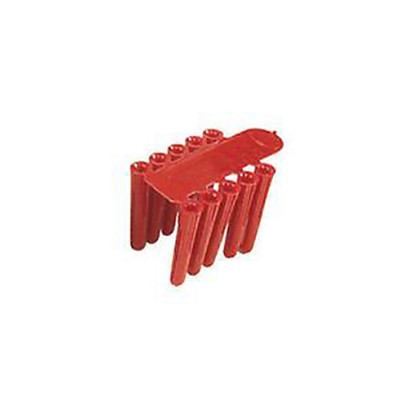

| 6 | 3.5mm | Red (6mm hole) |
| 8 | 4.0mm | Red (6mm hole) or Brown (7mm hole) |

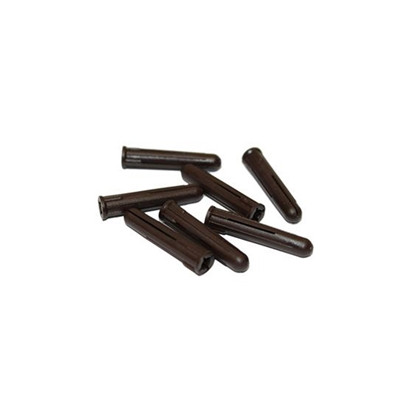

| 10 | 5.0mm | Brown (7mm hole) |
| 12 | 5.5mm | Brown (7mm hole) |
| 14 | 6.5mm | Blue (10mm hole) |

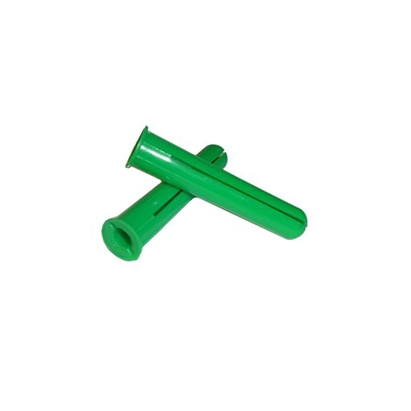

| 14 (M8 & M10 C/S) | 4 - 6.5mm | Green (11mm hole) |
Possible variation in drill diameters
The above chart gives the standard plug and drill size recommendations in general use. However, for any given plug, a combination of the smallest screw size in a soft substrate or the largest screw size in a hard substrate would require a change in drill sizes:
i.e. Brown Plug with a No.10 screw in soft block would require a 6.5mm or even a 6.0mm drill bit
Brown Plug with a No.12 screw in concrete would require an 8.0mm drill bit
All specifications are illustrative only and do not constitute recommendations by the manufacturers. Users must satisfy themselves as to the correct product and specification required. The manufacturers do not accept any liability for any loss or damage howsoever caused
