Pin Terminals – HALOGEN FREE

Show VAT

from only £10.69 Ex VAT£12.83 Inc VAT

Cembre Pin Terminals Halogen Free Red, Blue & Yellow

The 'P' range of terminals has been designed to meet the increasing demands for safety and reliability of electrical connectors

Halogen free polycarbonate insulation
Self extinguishing thermoplastic material class VO (UL 94)
Unique funnel shaped entry guarantees total insertion of the conductor strands into the terminal barrel creating a secure and reliable electrical and mechanical connection

OTHER SIZES AVAILABLE – PLEASE CONTACT YOUR LOCAL OFFICE TO RECEIVE A QUOTATION

Technical Data

Operating temperature range: -20 to +115 C

Datasheets

Cembre Pin Terminals Tech Data Sheet

Order

Part Number	Wolseley Code	Colour	Pin Length	Conductor Size	Price Ex VATInc VAT	Quantity

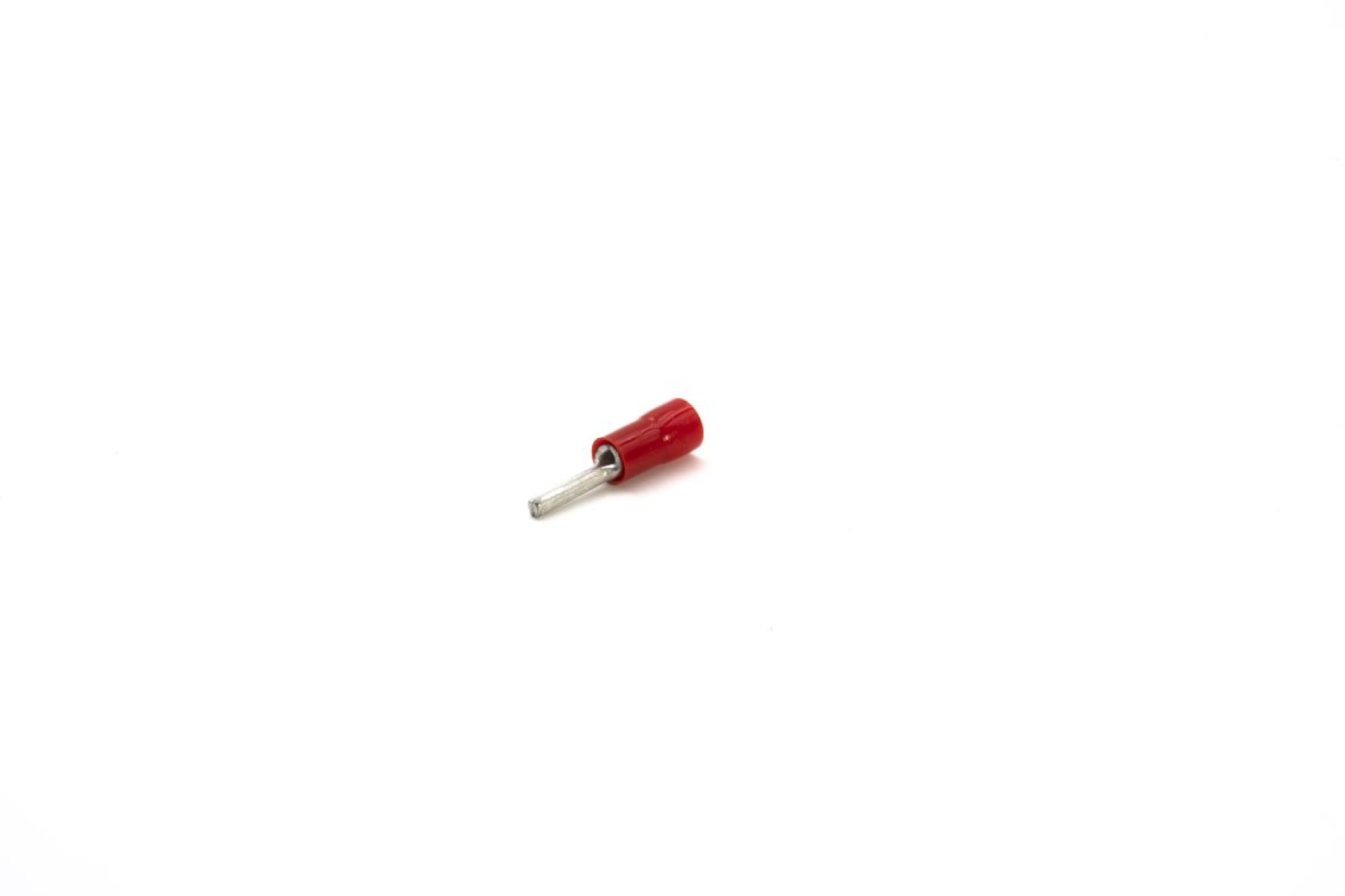

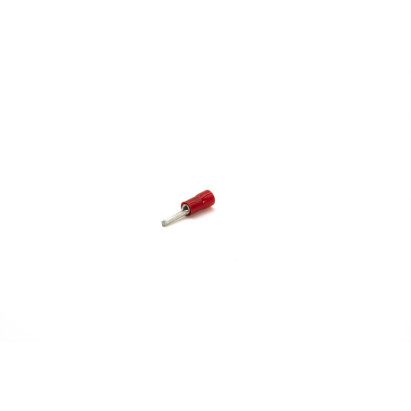

RP-P10	CJ0859	Red	10mm	0.25-1.5mm²	£10.69£12.83
BP-P10	CJ0706	Blue	10mm	1.5-2.5mm²	£11.12£13.34
BP-P12	CJ0822	Blue	12mm	1.5-2.5mm²	£11.28£13.54

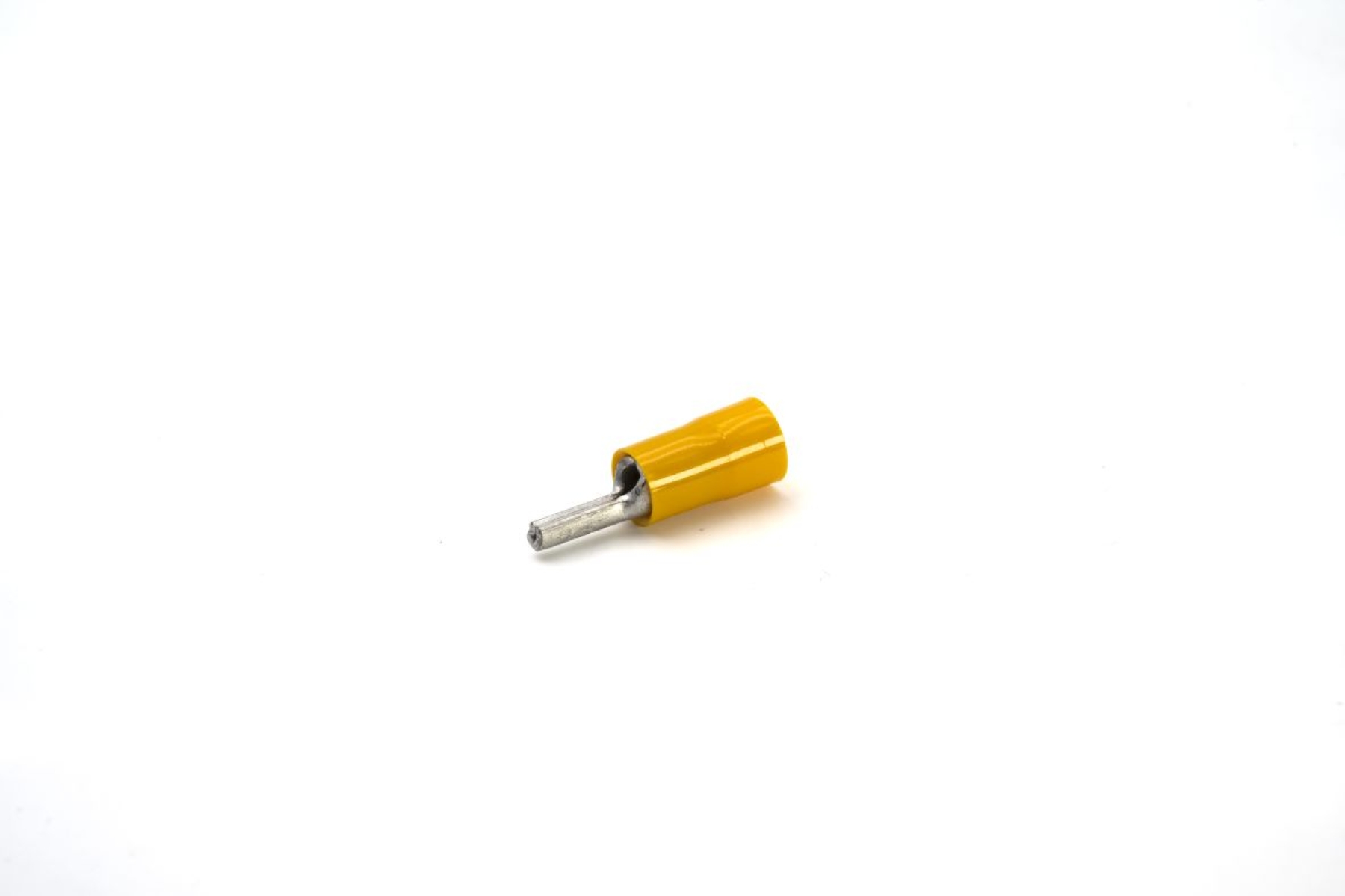

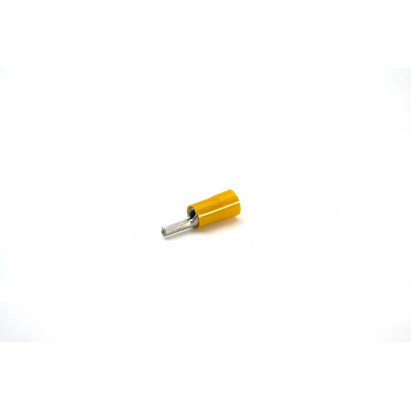

GP-P10	CJ0701	Yellow	10mm	4-6mm²	£19.08£22.90
GP-P12	CJ0728	Yellow	12mm	4-6mm²	£19.08£22.90
GP-P14	JZ0525	Yellow	14mm	4-6mm²	£19.35£23.22
