Lucy MSDB 1.0 SALE
from only £514.78 Ex VAT Was: £712.77
SALE - WHILE STOCKS LAST!
Lucy Electric Metal Multi Service Distribution Boards (MSDB) 1.0
We have a very limited number of Lucy MSDBs version 1.0 in stock and ready to ship at hugely discounted prices. They won't be in stock for long so get yours while you can.
These trusted Lucy Electric Multi Service Distribution Boards (MSDB) are the original, 1.0 model and offer a variety of benefits:

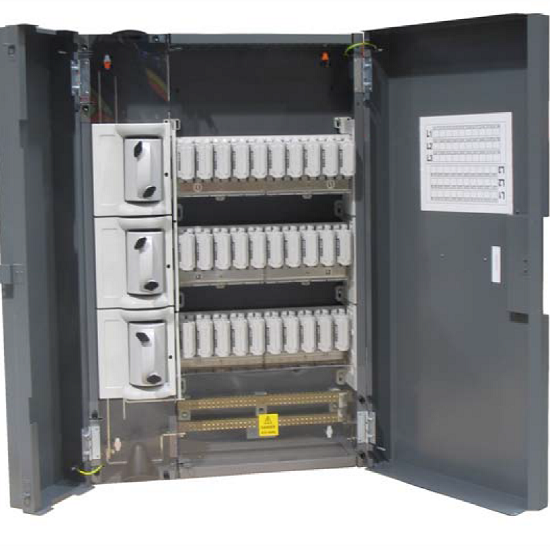

MSDB 18 Way
- Minimum cabinet depth tensuring units can be accommodated in confined service compartments away from the general public
- Choice of cable terminations including mechanical shear-off or compression lugs
- Choice of standard configurations include Left/Right/Top/ Bottom incoming supply - options listed below
- Double doors enabling segregation of incoming and outgoing supplies
- Staggered outgoing 100A SP fuse service ways provide maximum cable space
- Suitable for 3C CNE supplies or 4C SNE with additional kit
- Enclosure manufactured from zinc coated steel with a phosphate resin pre-treatment followed by an oven-cured polyester powder coat finish
- Quick release doors facilitate installation in confined spaces
MSDB 24 Way
- Multi-tier outgoing fuse ways provide increased space for cabling
- M12 fixings for incoming connections and internal busbar links
- Removable double doors to facilitate fitment in shallow riser cupboards
- Site configurable for CNE or SNE cable systems
- Pre-drilled removable gland plate fitted with closed cell foam sealing gasket
- Accept up to 300mm² 3 or 4 core aluminium or copper conductors
MSDB 30 Way
- Multi-tier outgoing fuse ways provide increased space for cabling
- M12 fixings for incoming connections and internal busbar links
- Removable double doors to facilitate fitment in shallow riser cupboards
- Optional glanding kit for different cable types e.g. copper screened, aluminium or steel wire armoured
- Site configurable for CNE or SNE cable systems
- Pre-drilled removable gland plate fitted with closed cell foam sealing gasket
- Accept up to 300mm² 3 or 4 core aluminium or copper conductors

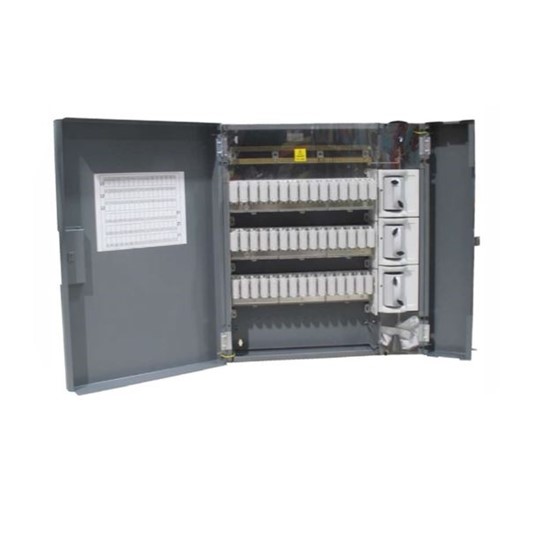

MSDB 45 Way
- Multi-tier outgoing fuse ways provide increased space for cabling
- M12 fixings for incoming connections and internal busbar links
- Removable double doors to facilitate fitment in shallow riser cupboards
- Optional glanding kit for different cable types e.g. copper screened, aluminium or steel wire armoured
- Site configurable for CNE or SNE cable systems
- Pre-drilled removable gland plate fitted with closed cell foam sealing gasket
- Accept up to 300mm2 3 or 4 core aluminium or copper conductors
We have very limited stocks of 18, 24, 30 and 45 outgoing fused ways in stock and on sale - order yours while stocks last!
MSDB 18 Way
- Conforms to BSEN 60439-1 and Draft ENA specification
- Outgoing fuse ways to BS 7657:2010
- IP rating to BSEN 60529
- Some versions are available to standard industrial specification and DNO specific standards (WPD, SSE, SPEN, UKPN)
MSDB 24 Way
- Incoming supply 630A max
- Busbar rating 630 A nominal
- Supply voltage 415V a.c.
- Rated insulation voltage 690V a.c.
- Short circuit withstand strength 18kA for 1 second
MSDB 30 Way
- Incoming supply 630A max
- Busbar rating 630 A nominal
- Supply voltage 415V a.c.
- Frequency 50-60Hz
- Rated insulation voltage 690V a.c.
- Short circuit withstand strength 18kA for 1 second
MSDB 45 Way
- Enclosure: Zinc coated mild steel 1.2mm thick
- Busbars : Electro-tin plated copper
- Terminal blocks: Brass
- Terminal shields: Transparent polycarbonate
- J type fuse holders: Glass reinforced Polybutylene Terepthalate (PBT)
- J type fuse bases: Glass reinforced polyamide 6
