Link Boxes - SICAME


from only POA

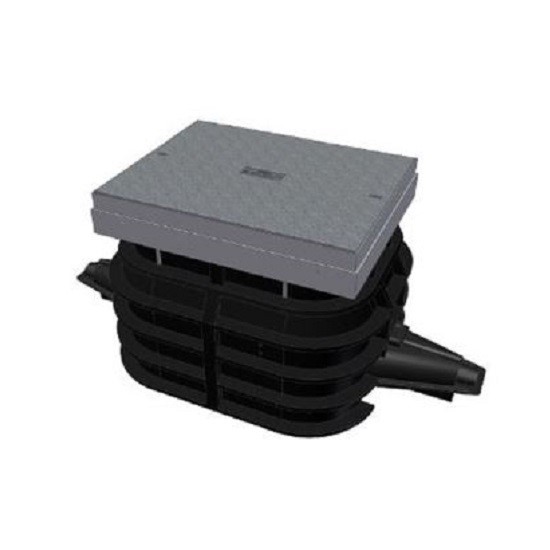

Sicame LV (Low Voltage) 2 & 4 Way Link Boxes

Can be jointed directly onto polymeric or paper insulated LV cables eliminating the need for intermediate lengths of polymeric cables and straight/transition joints

  • Fully insulated 2 Way Link Box complete with height adjustable Grade B (12 1/2 ton) pavement access assembly
  • High Density Polyethelene (HDPE) pavement access chamber supplied as standard eliminating the need for brick built constructions
  • Factory assembled and insulated turret will accommodate solid or fused (83mm crs) links to BS88
  • Traditional cast iron bell cover for reliable protection against water ingress (1 mtr head)
  • Provision of approved neutral test facility and also generation/fault location connection point within the insulated turret
  • All the required phase and neutral/earth mechanical connectors are factory fitted and utilise the shear-head bolt technology to ensure consistent and reliable performance
  • Resin is not supplied, however, all sealing accessories are provided for the ‘encapsulation’ of the joint
  • Pre-fitted factory tailed units are available to speed up direct replacement installations
  • Both 3 and 4 core variants are available
  • All below are tested to BS EN50393 & 60947-1 and ER C81/4
  • Pit frame and colour meet B125 EN124 standards
Technical Data

Product Testing

  • ER C81/3 : Type Approval Tests for joints for 600/1000V cable systems
    • ESI Approved : Report N°: HED/015-185:300
  • BS EN 60947 Pt 1/3 : Low Voltage Switchgear and Control Gear
    • Section 8.3.3.3 : Temperature-rise
    • Section 8.3.3.5 : Making and breaking capacities
    • Report N°: TTR/210
Order
Part Number Wolseley Code Manufacturer Description DNO Approval Price Quantity
58585-10 Sicame 2 Way 3 Core Scottish Power POA
58585-67 CC4281 Sicame 2 Way with external earth Kit (Mark 3A) NPG POA
58585-70 Sicame 2 Way with external earth Kit & 4 Core Conversion kit (Mark 3A) NPG POA
58585-68 Sicame 4 Way with external earth Kit (Mark 3A) NPG POA
58585-69 Sicame 4 Way with external earth Kit & 4 Core Conversion kit (Mark 3A) NPG POA
