LV Straight Armour Joints – Tyco


from only £20.48

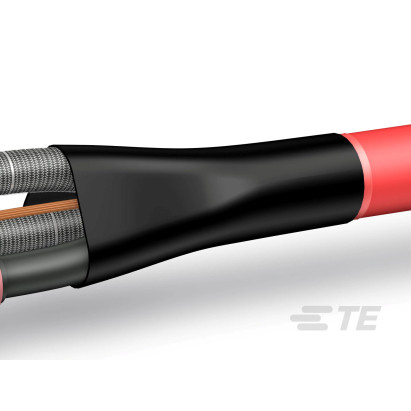

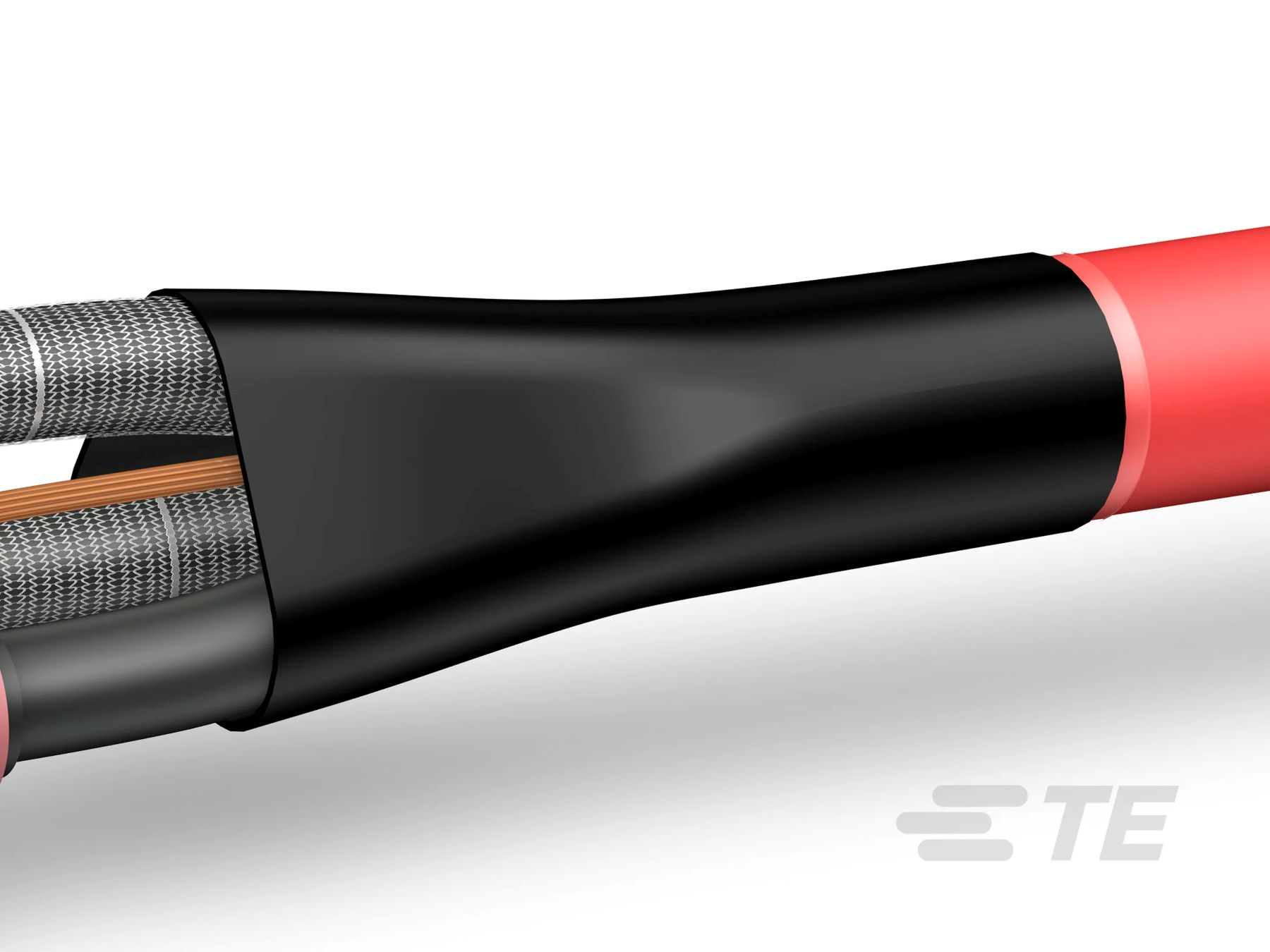

Tyco Straight heat shrink joints for LV armoured cables

  • Designed to connect inline LV armoured cables within a heat shrink joint
  • Ideal for vertical installations in indoor and outdoor environment
  • Excellent electrical insulation and mechanical strength from armour cage
  • Simple & fast installation - no curing time
  • Immediate backfill
Technical Data
  • 1000V Rated
  • Tested to BS EN 50393
  • Temperature Rating
Order
Part Number Alternative Part Ref Maximum Cable Size Price Quantity
AR101 1.5-4mm² 4 core SMOE81283 £20.48
AR102 6-16mm² 4 Core SMOE81284 £40.69
AR3 (Rated to 3.3kV) 25-50mm² 4 Core EPKJ0130 £77.18
AR4 (Rated to 3.3kV) 70-150mm² 4 Core EPKJ0137 £144.27
AR5 (Rated to 3.3kV) 185-300mm² 4 Core EPKJ0144 £250.11
