LV Copper Lugs - Angled 90

Show VAT

from only £1.46 Ex VAT£1.75 Inc VAT

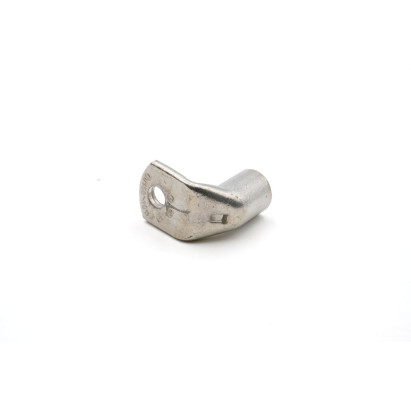

Cembre LV copper tube crimping lugs angled at 90 Degrees

Manufactured from electrolytic copper tube
Dimensions are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out
Cembre lugs are annealed to guarantee optimum ductility in order to withstand sever deformation that arises when compressed and any bending of the palm during installation
Electrolytically tin plated to avoid oxidation

Technical Data

Datasheets

Order

Part Number	Wolseley Code	Hole Size	Conductor Size	Price Ex VATInc VAT
A7-L6	CJ0666	M6	35mm	£1.46£1.75
A7-L8	CJ3899	M8	35mm	£1.50£1.80
A7-L10	CJ0841	M10	35mm	£1.55£1.86
A7-L12	JZ0083	M12	35mm	£1.94£2.33
A10-L8	CJ0824	M8	50mm	£2.08£2.50
A10-L10	CJ0749	M10	50mm	£2.10£2.52

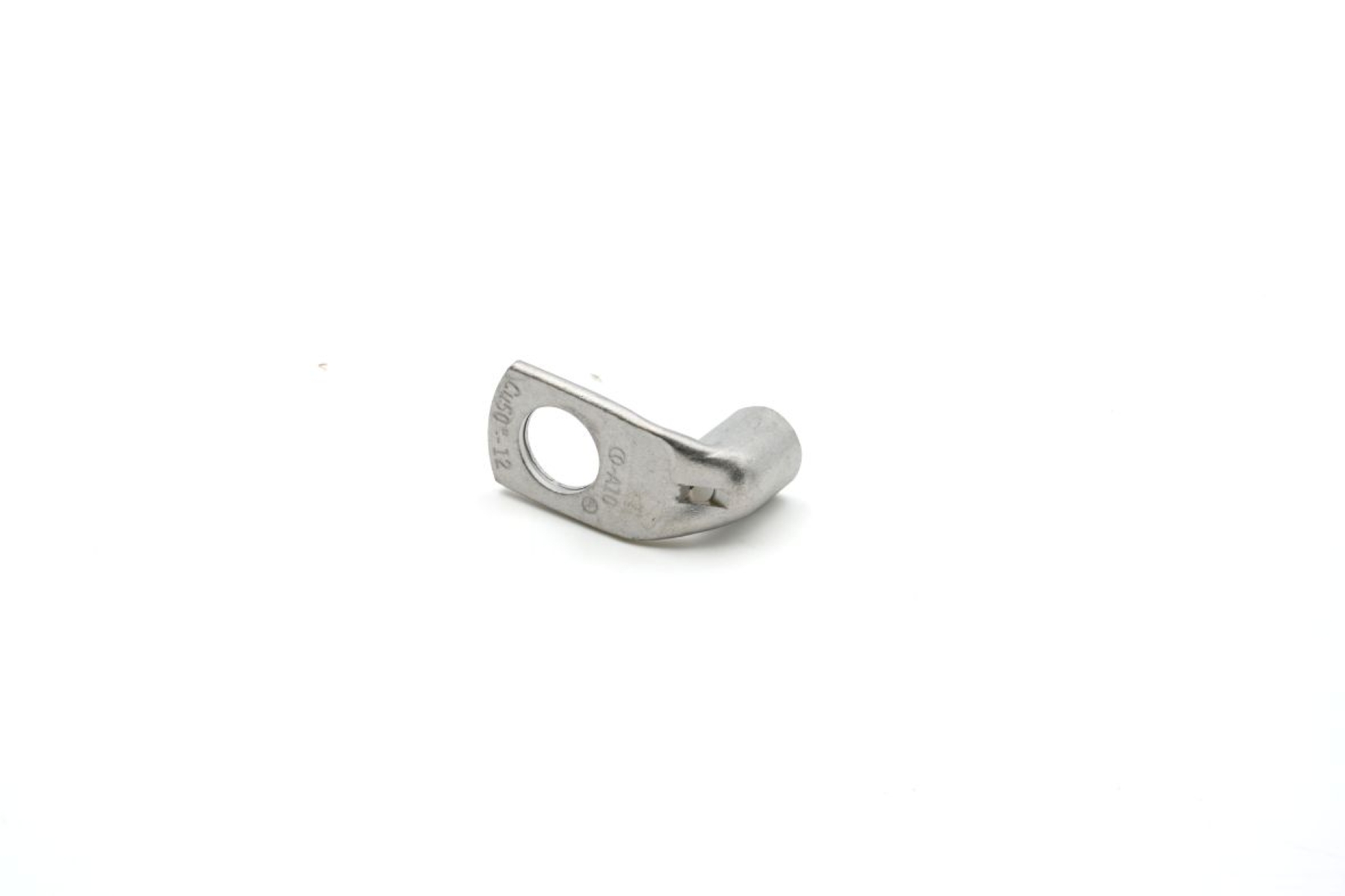

A10-L12		M12	50mm	£2.13£2.56
A14-L8	CJ4525	M8	70mm	£2.49£2.99

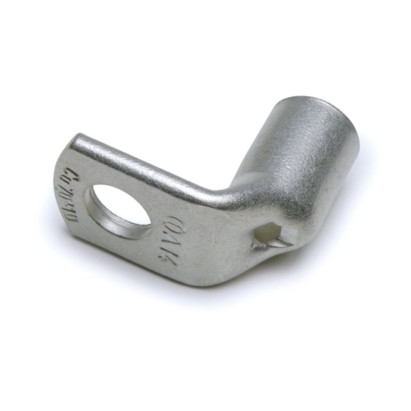

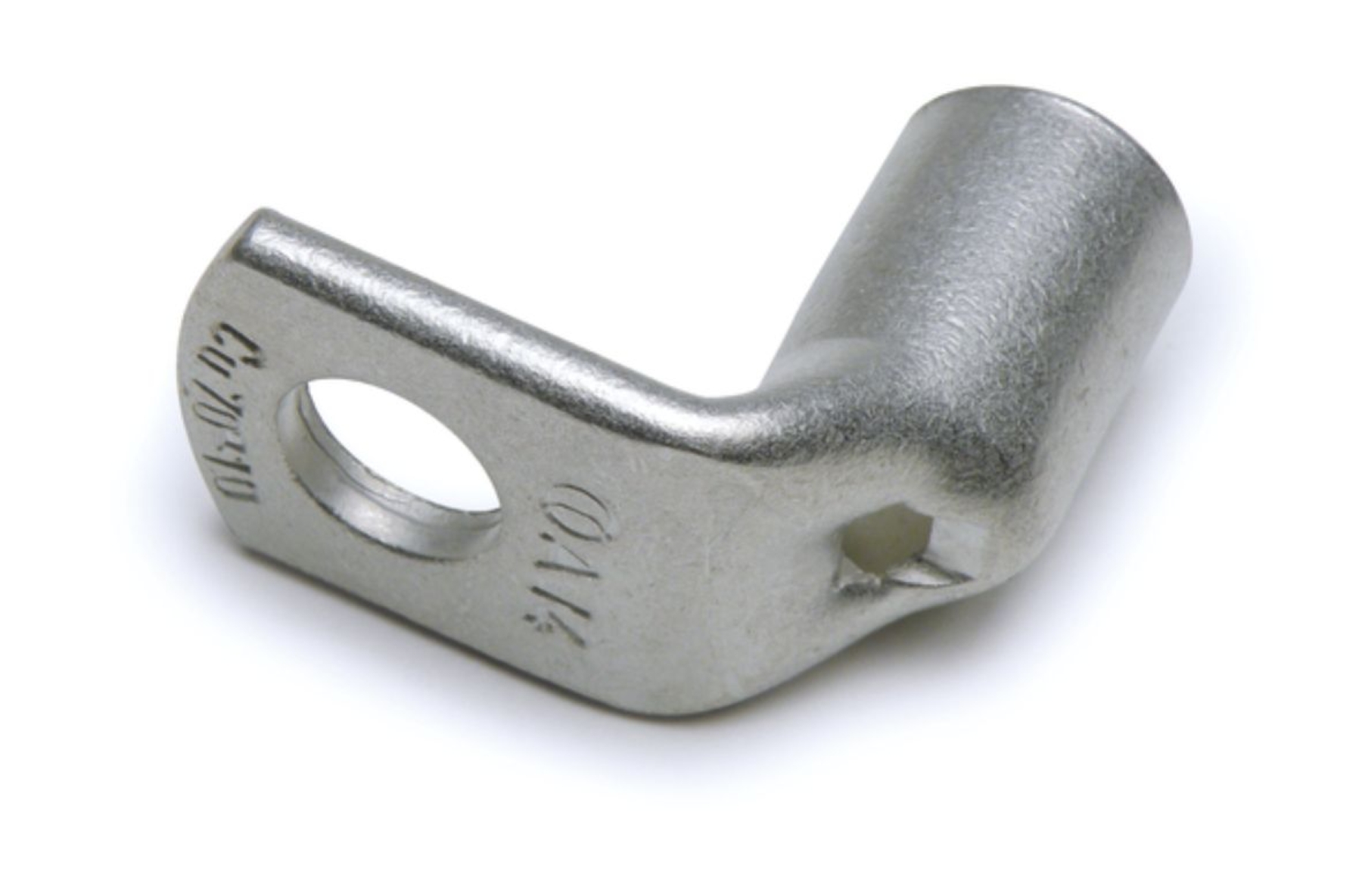

A14-L10	CJ0873	M10	70mm	£2.70£3.24
A14-L12	CJ0678	M12	70mm	£2.70£3.24
A19-L8	CJ0823	M8	95mm	£3.79£4.55
A19-L10	CJ0764	M10	95mm	£3.86£4.63
A19-L12	CJ0740	M12	95mm	£3.86£4.63
A19-L16	CJ4528	M16	95mm	£3.94£4.73
A24-L10	CJ0748	M10	120mm	£4.27£5.12
A24-L12	CJ0758	M12	120mm	£4.52£5.42

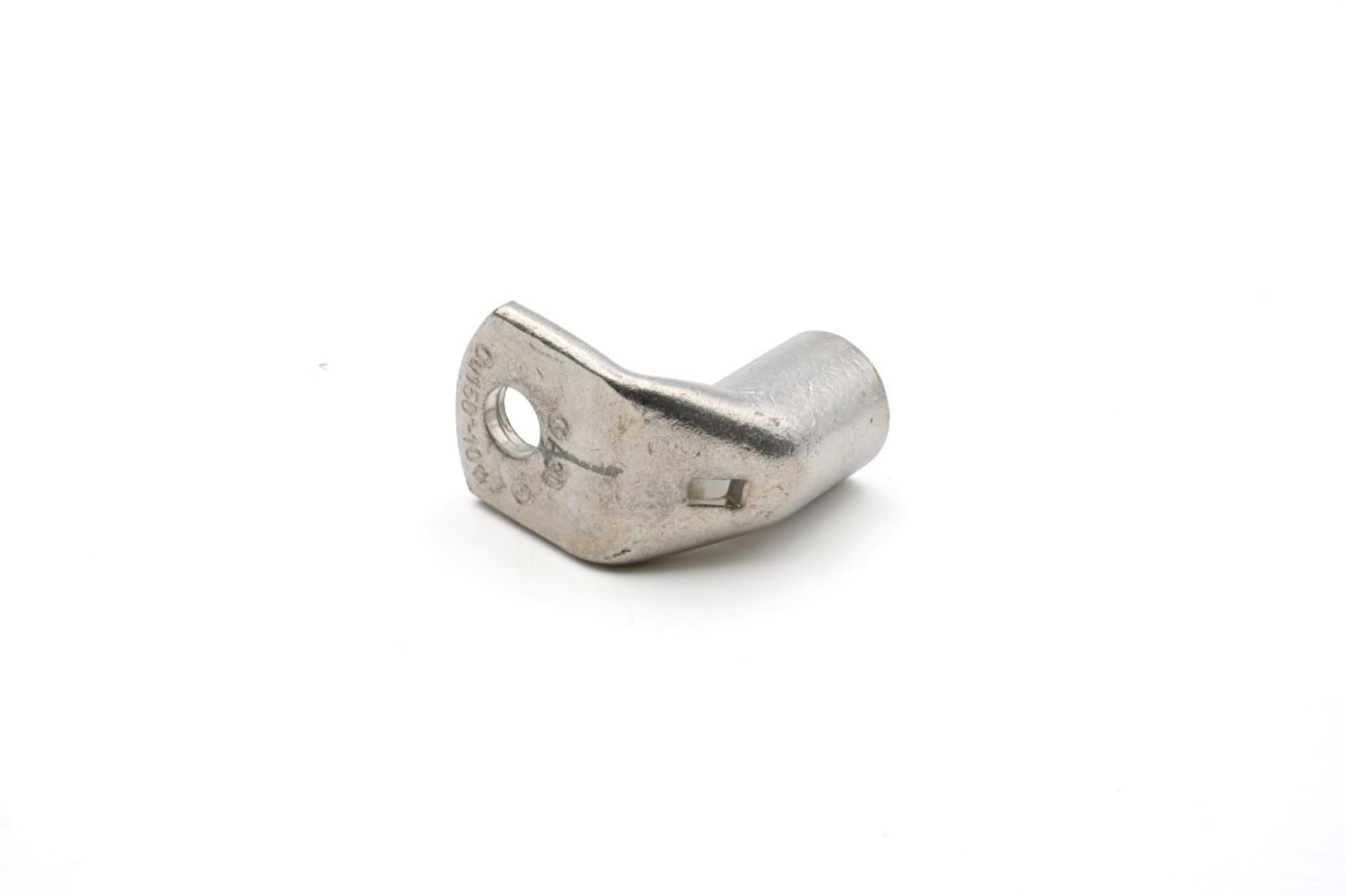

A30-L10	CJ0707	M10	150mm	£7.08£8.50

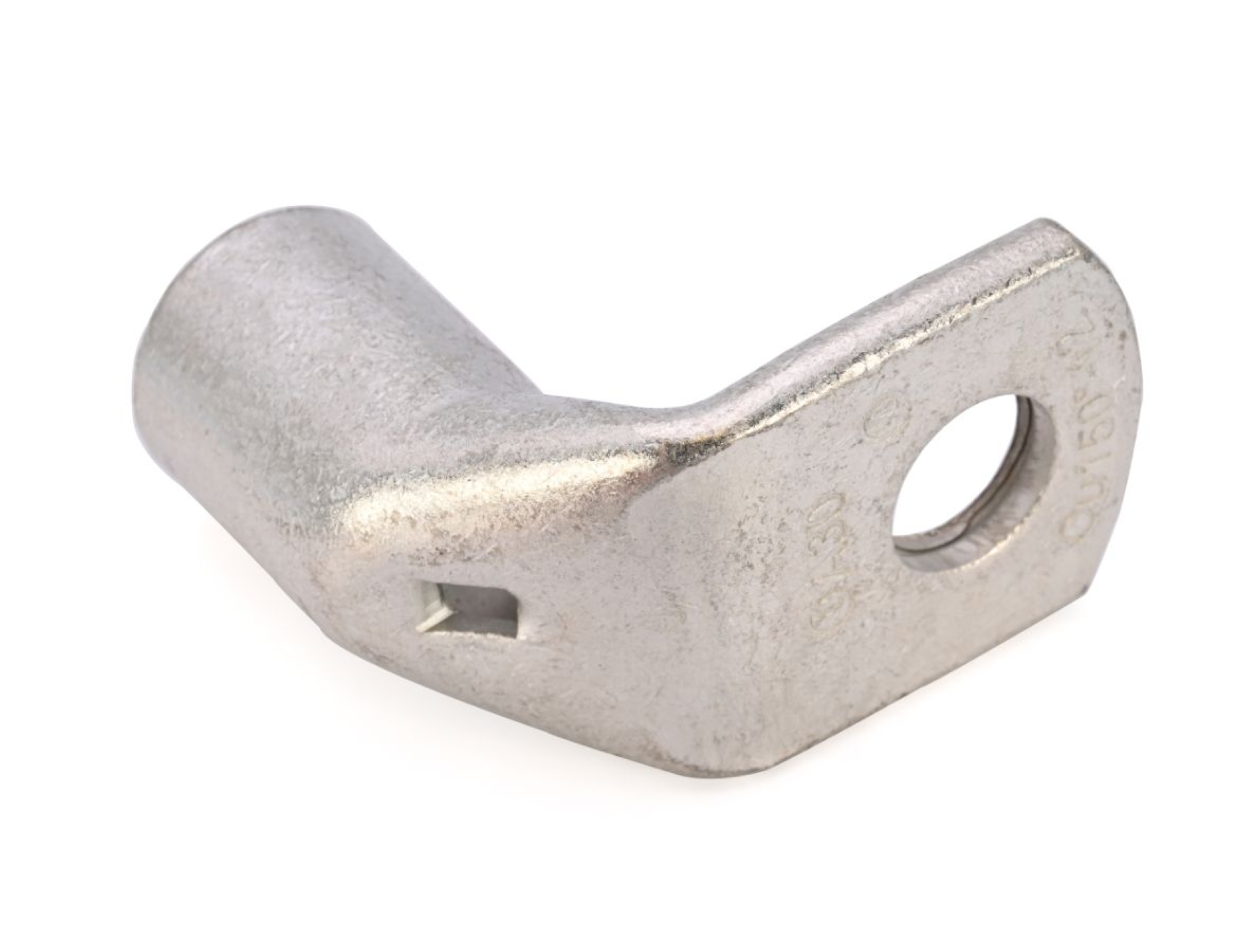

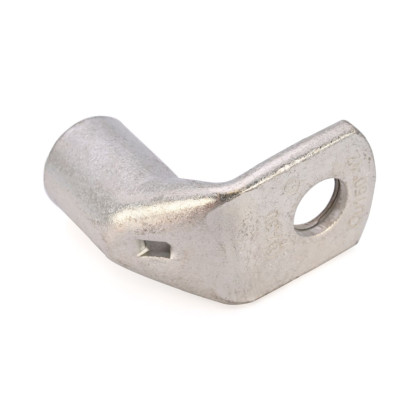

A30-L12	JZ0373	M12	150mm	£10.08£12.10
A37-L10	CJ0588	M10	185mm	£9.19£11.03
A37-L12	CJ0616	M12	185mm	£9.51£11.41
A48-L10	CJ0641	M10	240mm	£13.95£16.74
A48-L12	CJ0567	M12	240mm	£13.95£16.74

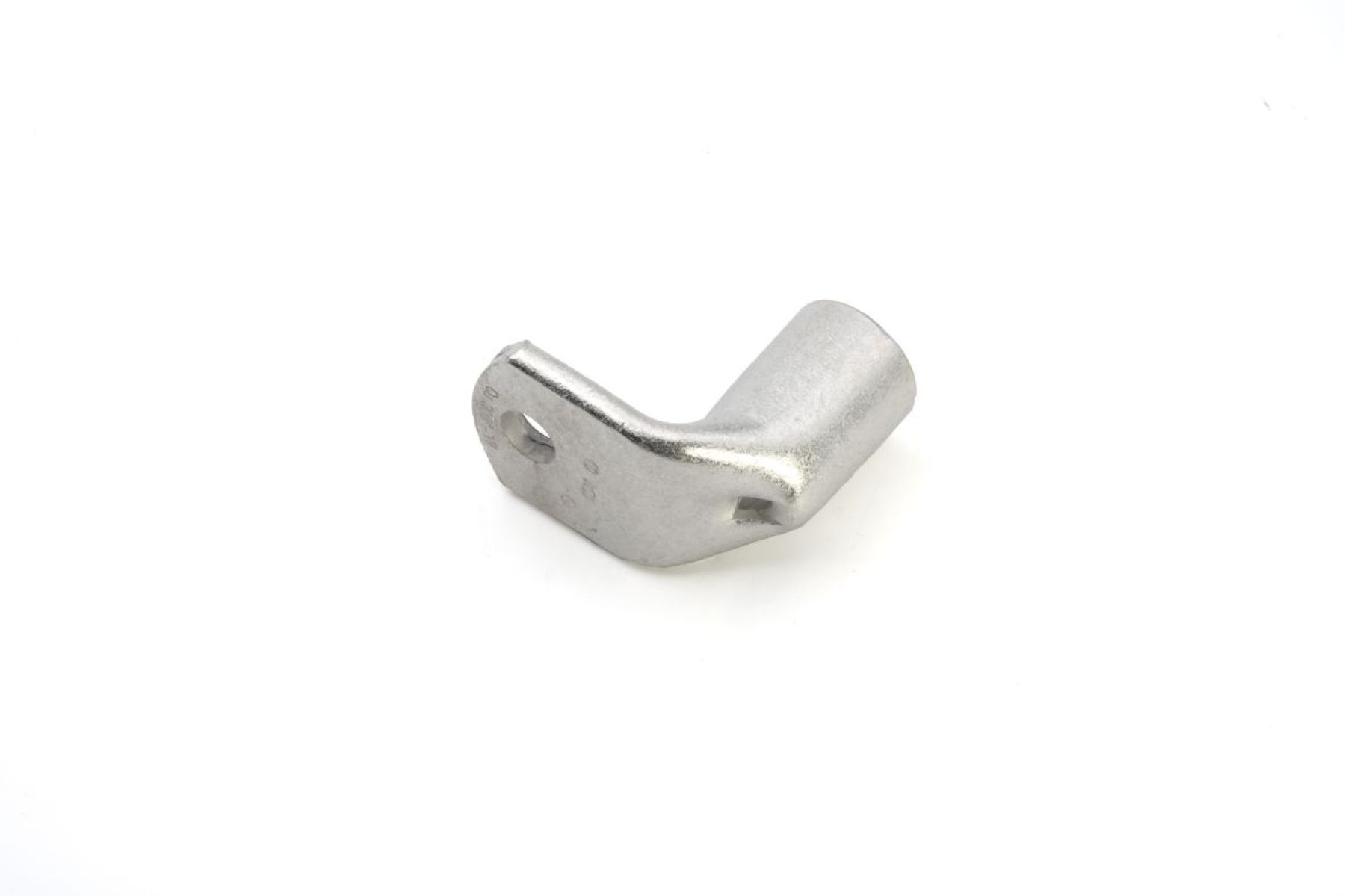

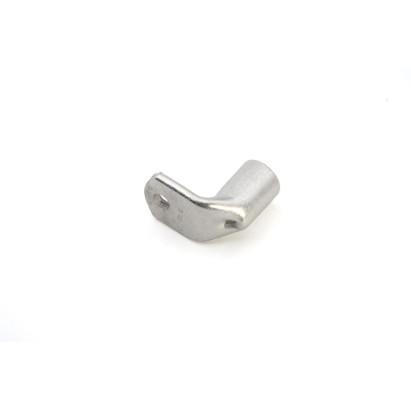

A60-L12	CJ0777	M12	300mm	£19.73£23.68
