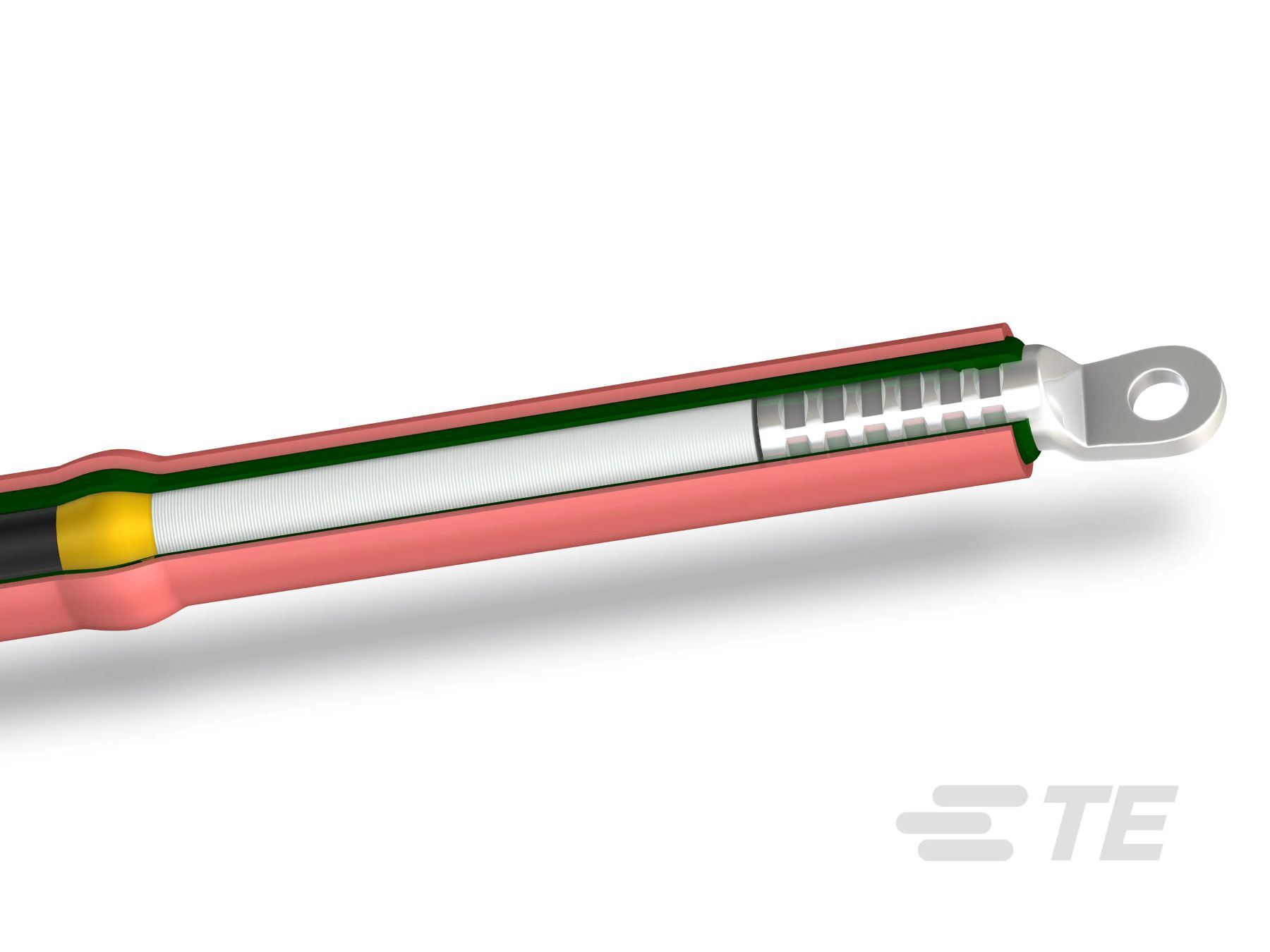

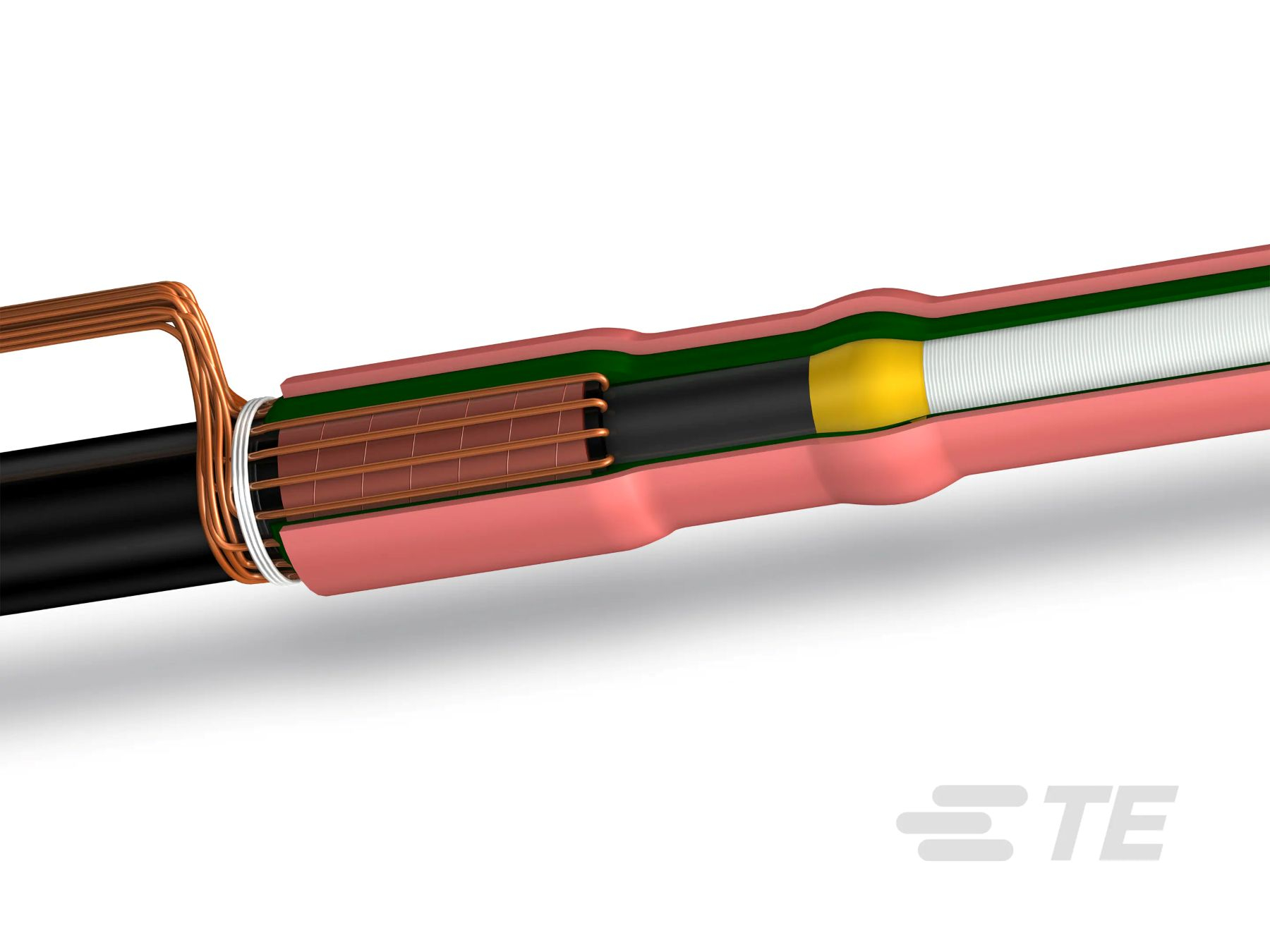

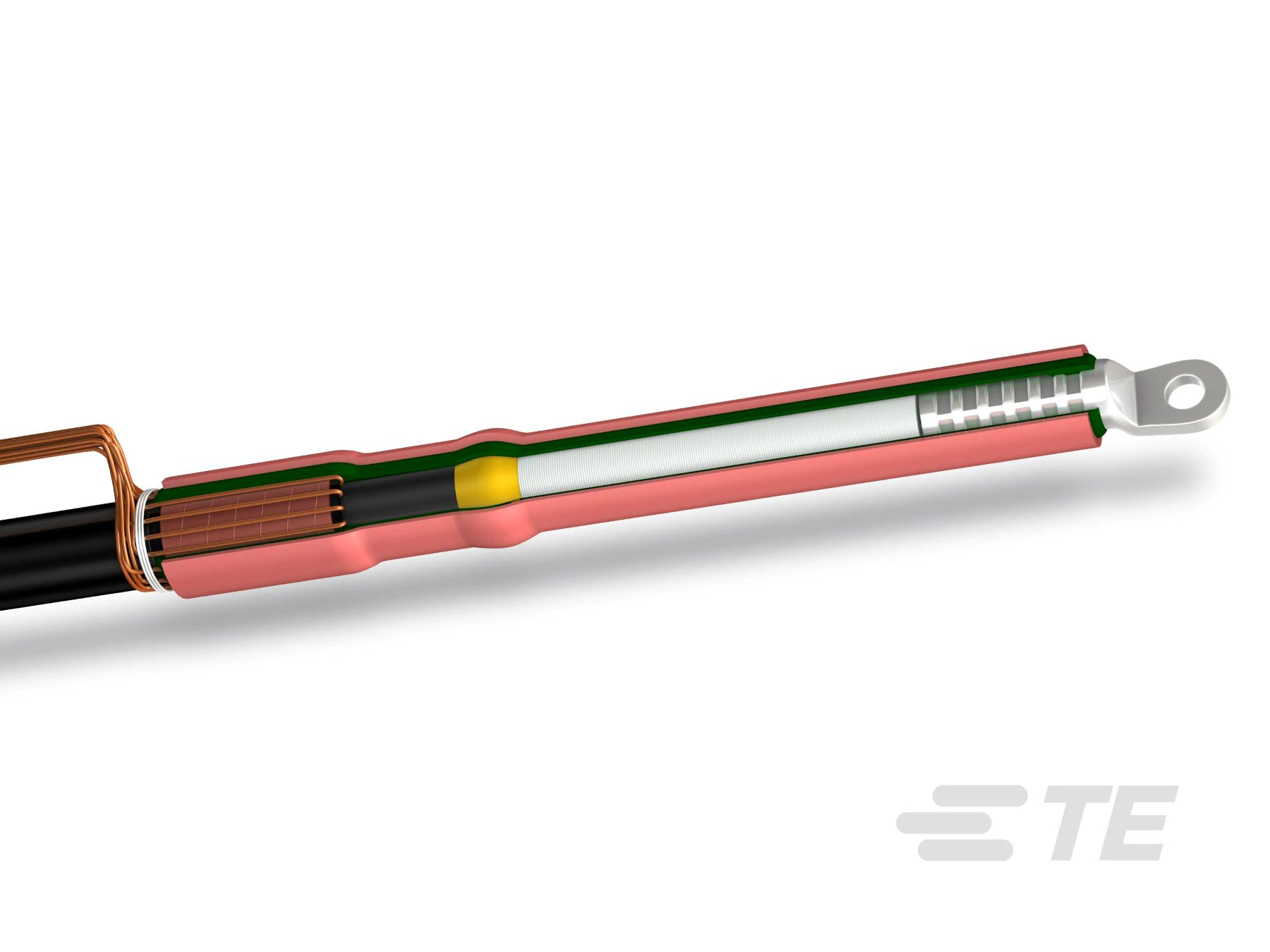

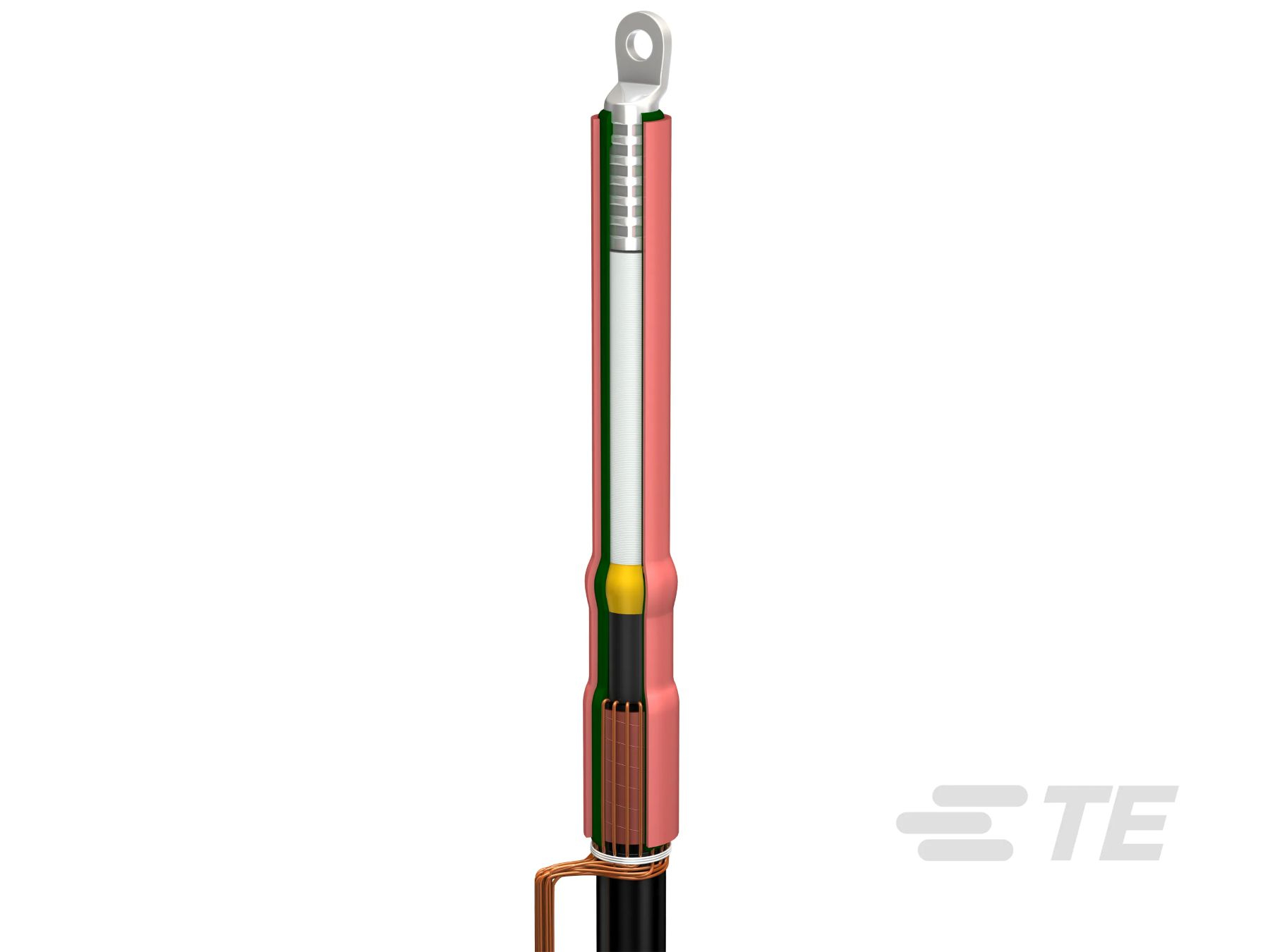

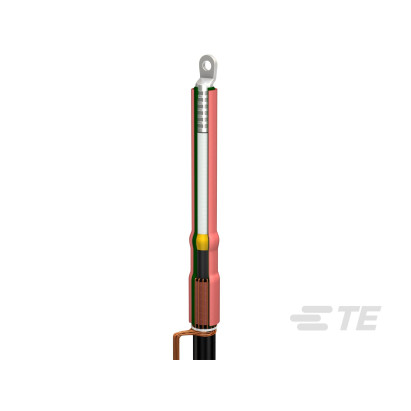

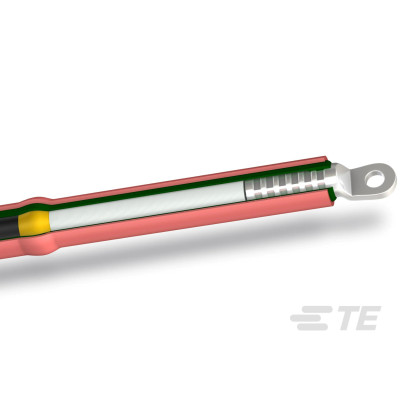

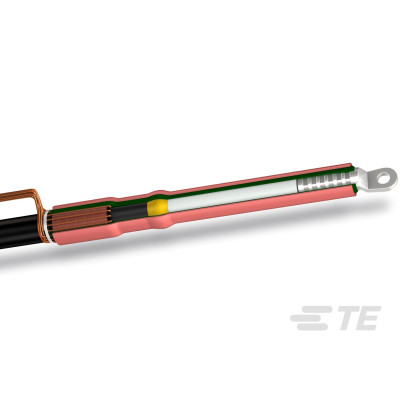

IXSU Type XLPE Cable Heatshrink Termination - Indoor


from only £124.69

Tyco Three core heat shrink termination for XLPE cables in indoor applications

Designed to terminate three core, polymeric insulated 11kV cables in indoor applications to switchgear & cable end boxes

  • Highly reliable U.K industry standard termination
  • Range taking with few components needed
  • New ceramic stress control
  • Compact design
  • No shelf life limitation
  • Conductive tubing allows the crossing of the cores below the screen cut
  • Additional tubing is available should the tail lengths need to be increased above 1200mm
  • Kit contents - Insulation tubing including co-extruded stress control, sealant tapes, conductive breakouts and installation instructions
Technical Data
  • Tested in accordance with CENELEC specification HD 629 which encompasses IEC, BS and VDE etc.
  • All IXSU/OXSU components have full traceability of raw materials and manufacture according to ISO 9001 & ISO 14001
Order
Part Number Conductor Size Tail Length Price Quantity
IXSU-F-3311 16-35mm² 450mm £166.53
IXSU-F-3314 16-35mm² 1200mm £241.45
IXSU-F-3321 25-70mm² 450mm £124.69
IXSU-F-3324 25-70mm² 1200mm £230.32
IXSU-F-3331 95-240mm² 450mm £147.00
IXSU-F-3334 95-240mm² 1200mm £279.98
IXSU-F-3341 240-500mm² 450mm £256.04
IXSU-F-3344 240-500mm² 1200mm £300.46
