High Voltage Busbar Tape

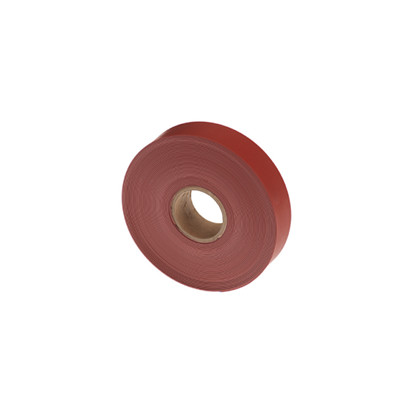

TE high voltage busbar insulation tape (10m rolls)

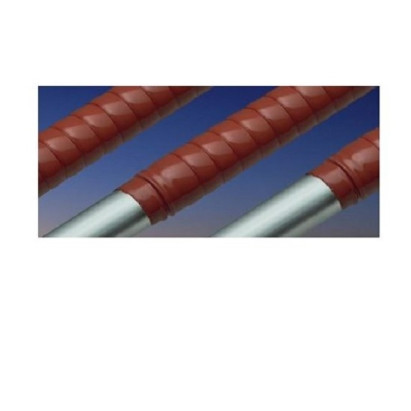

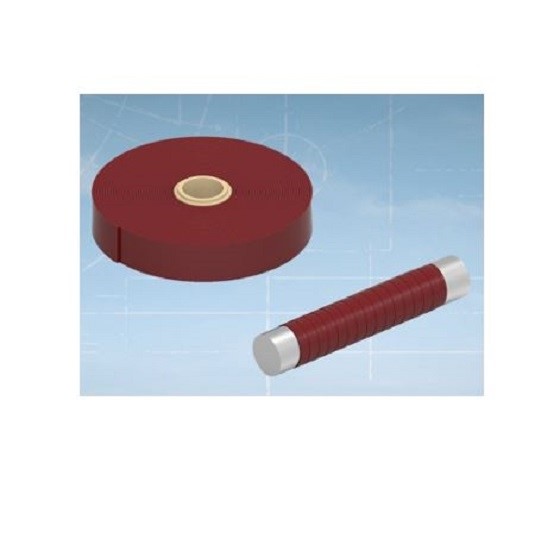

High voltage busbar (HBVE) tape by TE is an adhesive-coated, high-voltage, heat-shrinkable general purpose tape for insulating straight and bent bars in retrofit applications where tubing cannot be used

HBVE tapes offer a simple and effective solution to the challenges of the retrofit insulation of busbars, particularly where existing equipment cannot be dismantled. They can be used for indoor and outdoor applications and installed on different shapes, including complex connections.

• TE High Voltage busbar tape is a heat-shrinkable, adhesive-coated tape which provides insulation enhancement and protection against accidentally induced discharge
• Compatible with all other products in the TE Raychem MV insulation enhancement system
• Easy to apply using readily available equipment
• Suitable for both indoor and outdoor use
• Excellent anti-tracking properties
• Continuous operating temperature up to 90 °C
• Extremely versatile and flexible at temperatures as low as -40 °C, the30% shrink ratio enables coverage of almost any shape
• Good thermal emissivity and contact with busbars means no derating is required
• Manufactured from non-halogen based materials, reducing the toxic and corrosive effects in the event of fire
• Can be stored indefinitely at temperatures up to 50 °C without loss of performance

Applications

• Overhead Power Networks
• Substation Solutions
• EU ELV Compliant
