TYCO Heat Shrink Medium Wall Tubing

from only £9.50 Ex VAT

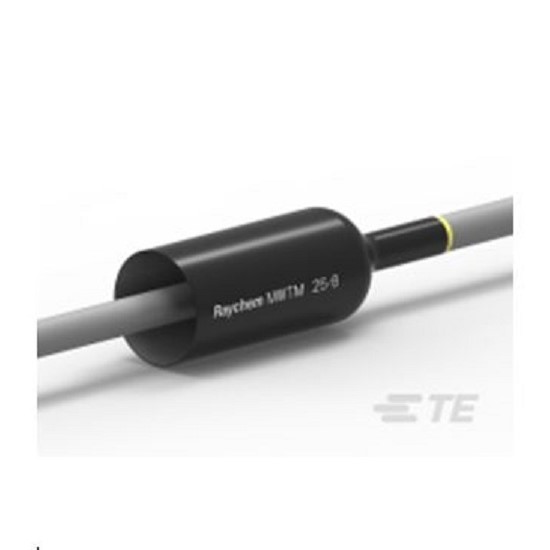

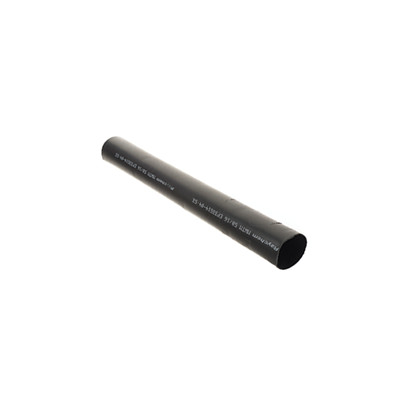

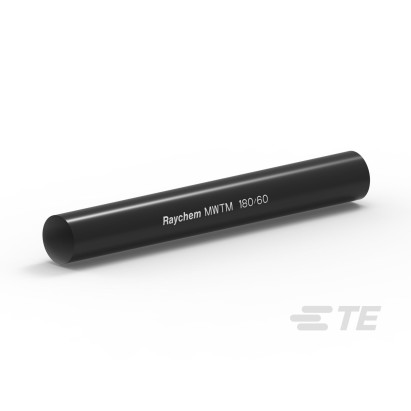

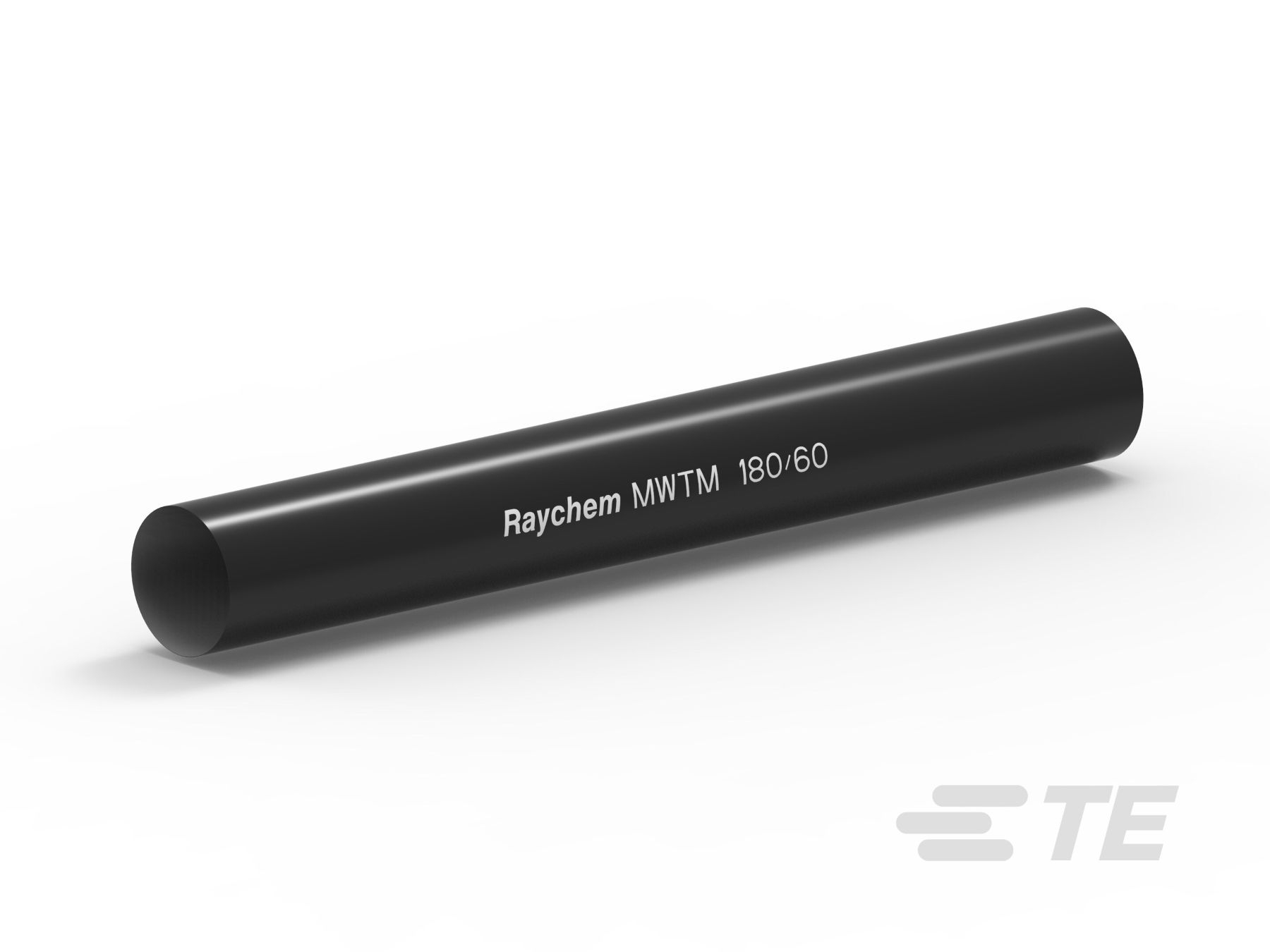

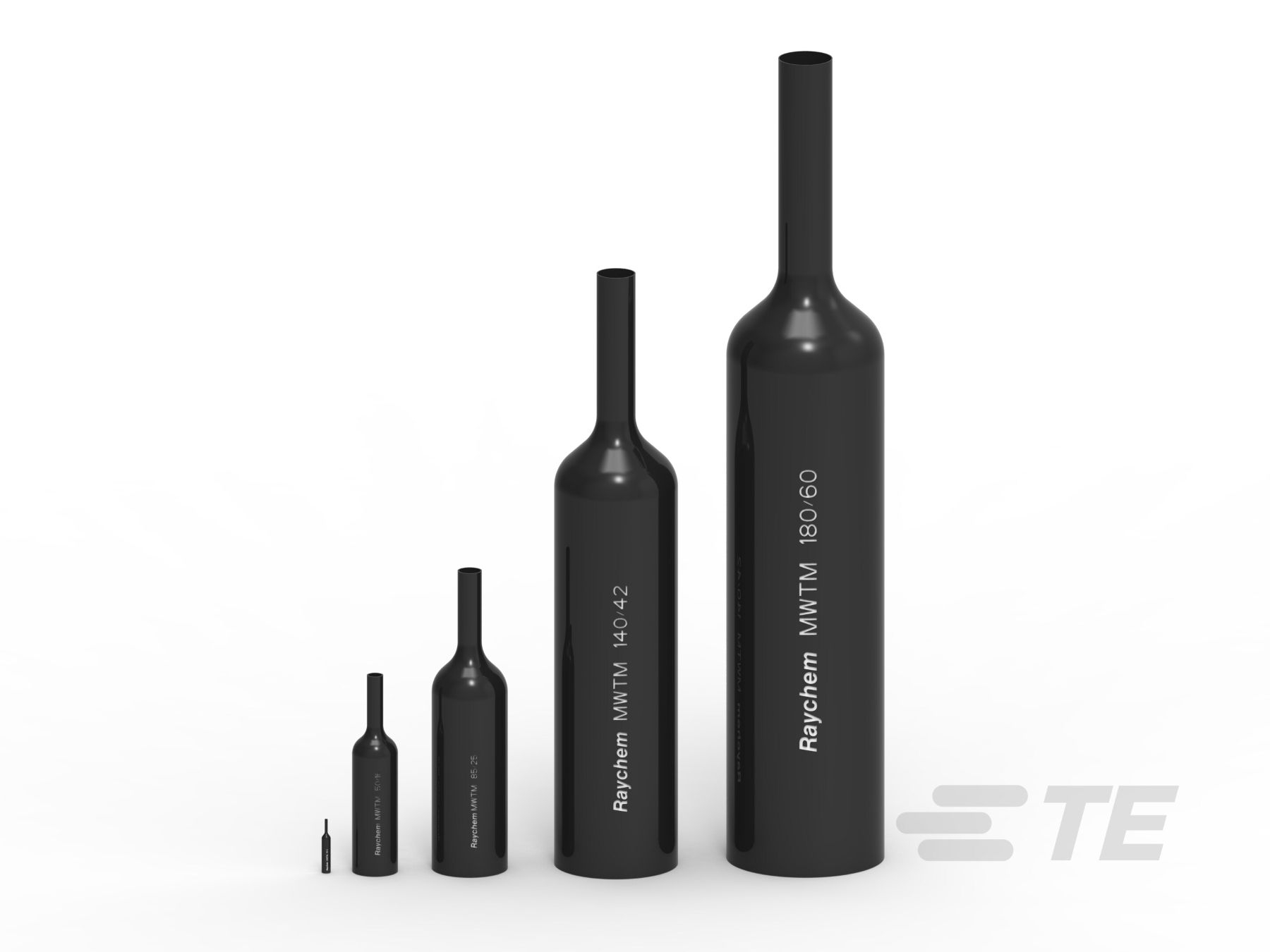

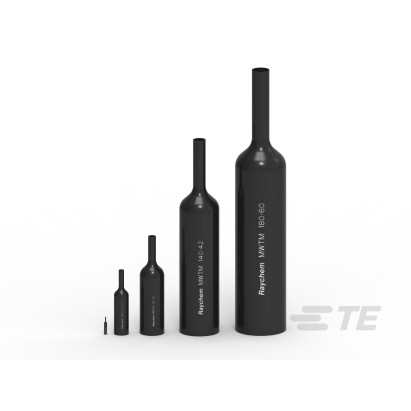

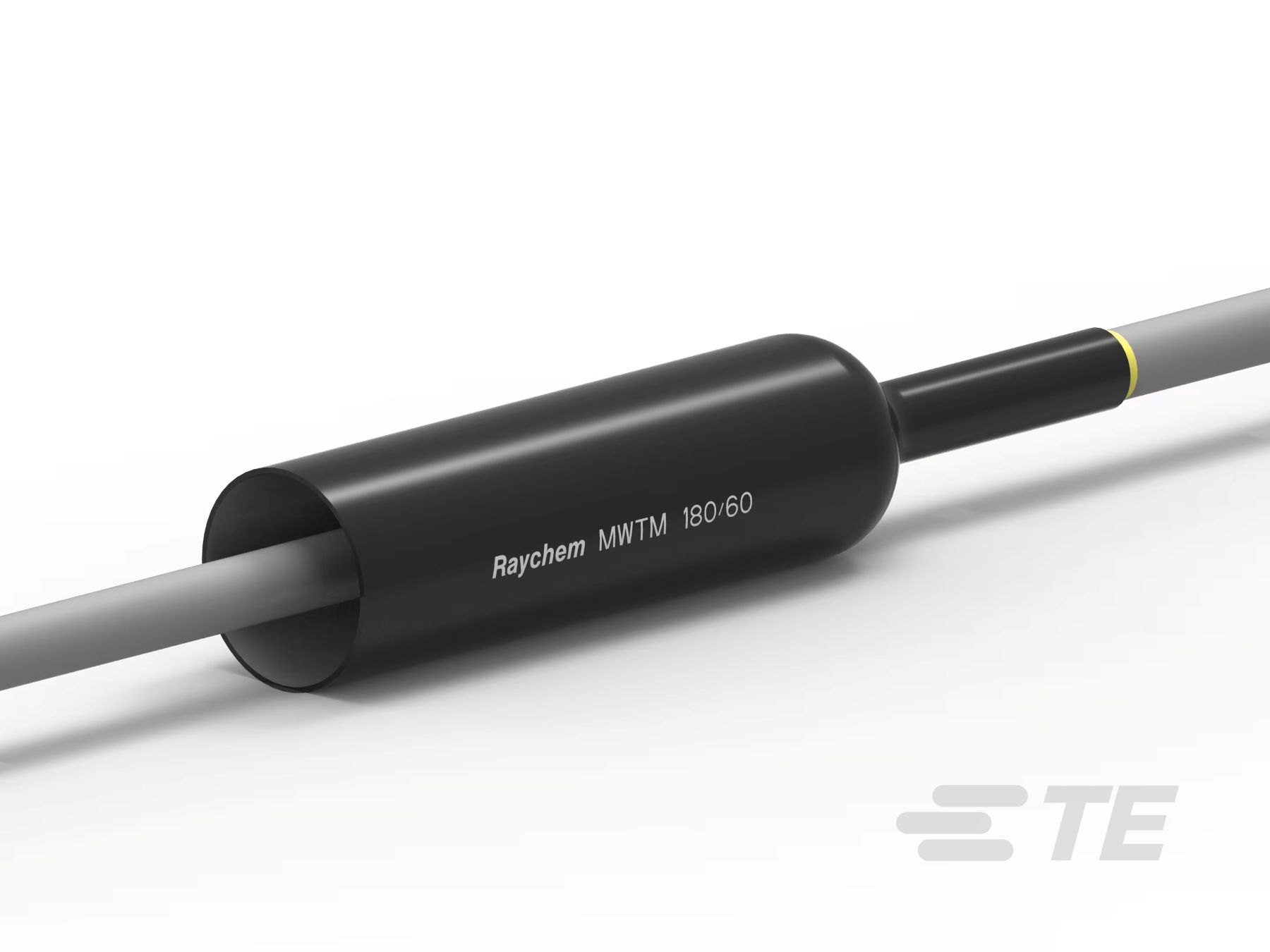

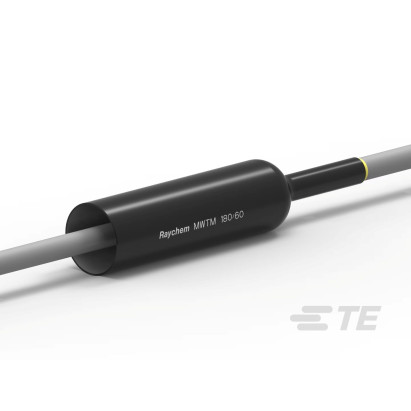

Tyco Heat Shrinkable medium wall insulating tubing (MWTM Series)

Raychem (TE Connectivity) heat shrinkable medium wall halogen free insulation tubing MWTM

This Raychem MWTM tubing is available with or without an inner sealant wall.  The sealant offers excellent bonding and sealing properties to all materials commonly used in cable insulation and sheath construction environments such as plastic, rubber, lead and aluminum.

  • Cross linked polyolefin dual wall medium heat shrink tubing is designed for the cable jacketing sealing and electrical insulation of LV power cables
  • Halogen free
  • Resistant to UV light
  • Resistant to temperature changes and immune to oils and solvents
  • Flexible rapid shrinkage with 3:1 shrink ratio
  • Available in black only
  • All size types are available in the standard lengths 1000mm and 1500mm
  • Spools and other lengths available on request
  • All lengths subject to standard cutting tolerances
Technical Data
  • 1000V Rated
  • Shrinking Temperature > 110C
  • Tensile Strength 14 MPa min
  • Dielectric Strength > 200kV/cm
Datasheets
Order
Part Number Wolseley Code Lining Application Range Length TE Part Number Price Ex VAT Quantity
MWTM10/3-1500/S CJ2548 Sealant Lined 9.0-3.5mm 1500mm 320696-000 £9.50
MWTM16/5-1500/S CJ2551 Sealant Lined 14.5-5.5mm 1500mm 830732-000 £11.23
MWTM25/8-1500/S CJ2553 Sealant Lined 22.5-9.0mm 1500mm 142782-000 £13.76
MWTM35/12-1500/S CJ2555 Sealant Lined 31.5-13.0mm 1500mm 219394-000 £17.27
MWTM50/16-1500/S CJ2557 Sealant Lined 45.0-17.5mm 1500mm 195494-000 £21.30
MWTM63/19-1500/S CJ2560 Sealant Lined 57.0-21.0mm 1500mm 514202-000 £28.61
MWTM75/22-1500/S CJ2561 Sealant Lined 68.0-24.0mm 1500mm 518766-000 £34.44
MWTM85/25-1500/S CJ2562 Sealant Lined 77.0-27.5mm 1500mm 115518-000 £38.59
MWTM95/29-1500/S CJ2563 Sealant Lined 86.0-32.0mm 1500mm 430936-000 £43.05
MWTM115/34-1500/S CJ2549 Sealant Lined 104.0-37.0mm 1500mm 746340-000 £54.60
MWTM140/42-1500/S CJ2550 Sealant Lined 126.0-46.0mm 1500mm 352310-000 £62.63
MWTM160/50-1500/S CJ3188 Sealant Lined 144.0-55.0mm 1500mm 663016-000 £74.34
MWTM180/60-1500/S CJ3618 Sealant Lined 162.0-66.0mm 1500mm 761200-000 £99.17
