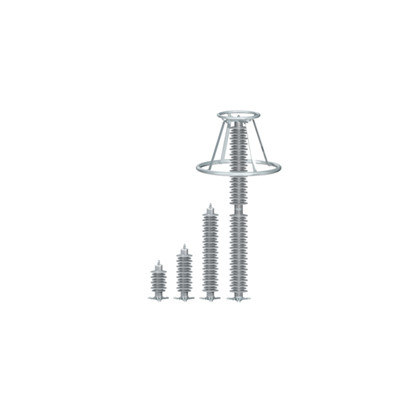

PBA/PCA/PCAE Station Class Surge Arrester - Class 3

Class 3 Station Class
Class 3 Station Class Class 3 Station Class

Class 3 Station Class Surge Arrester



  • Protection of HV networks and equipment from lightning and switching surge related overvoltages. Designed and optimised for outdoor use to protect HV switch gear, Transformer and
    cable end terminations
  • Direct moulded housing to prevent moisture Ingress
  • Low residual voltages
  • Safe non shattering short circuit behaviour to higher current levels
  • Maintenance free
  • Hydrophobic silicon housing (tracking and erosion resistant)
  • Excellent cantilever and tensile performance
  • Quality design and manufacturing ISO 9001 and 14001 compliant
  • Tested in accordance with IEC60099-4 at independent accredited laboratories

Please contact your nearest sales office for help in product selection and pricing

Technical Data

  • Material (porcelain or Polymeric)
  • Lightning impulse withstand voltage (BIL)0Um kV r.m.s - Lightning impulse withstand voltage of equipment (BIL) kV r.m.s
  • Creepage distance (mm/kV)
  • Maxiumum continuous operating voltage
  • System temporary over voltage
  • System temporay over voltage duration
  • Umax (maxiumum system phase to earth voltage in system) (kV)
  • Duty rating (kV) – “Duty cycle voltage” is a term used in IEEE standards; IEC equivalent would be as follows: Surge arrester rating (kV)
  • Line discharge class (1-5)
  • Energy capability (kJ/Kv at Ur)
  • Pollution performance 1-4/A-E(16,20,25,31,40/50mm)
  • Earthing system:multi earthed, effectivity earthed, resistive earthed, isolated, Reactance)
  • Fixing arrangements: Line termination, Earth termination, mounted arrangement.
  • Surge counters required?

Generic Technical Data

    PBA PCA/PCAE
System voltage Umax kV 170 420
System voltage Unom kV 150 400
Rated discharge current kA 10 10
High current impulse kA 100 100
Classification   2 3
Energy Capability at Ur kJ.kV 6.4 7.8
Short circuit rating kA 65 65
Mechanical Strength
Safe long-term load (SLL) kNm 0.6 2
Safe short-term load (SLL) kNm 1 2.5

Order

Part Number Price £ Quantity
HV-Arrestor-Class3 POA
