Bolted Pre-insulated Connection


from only £12.08

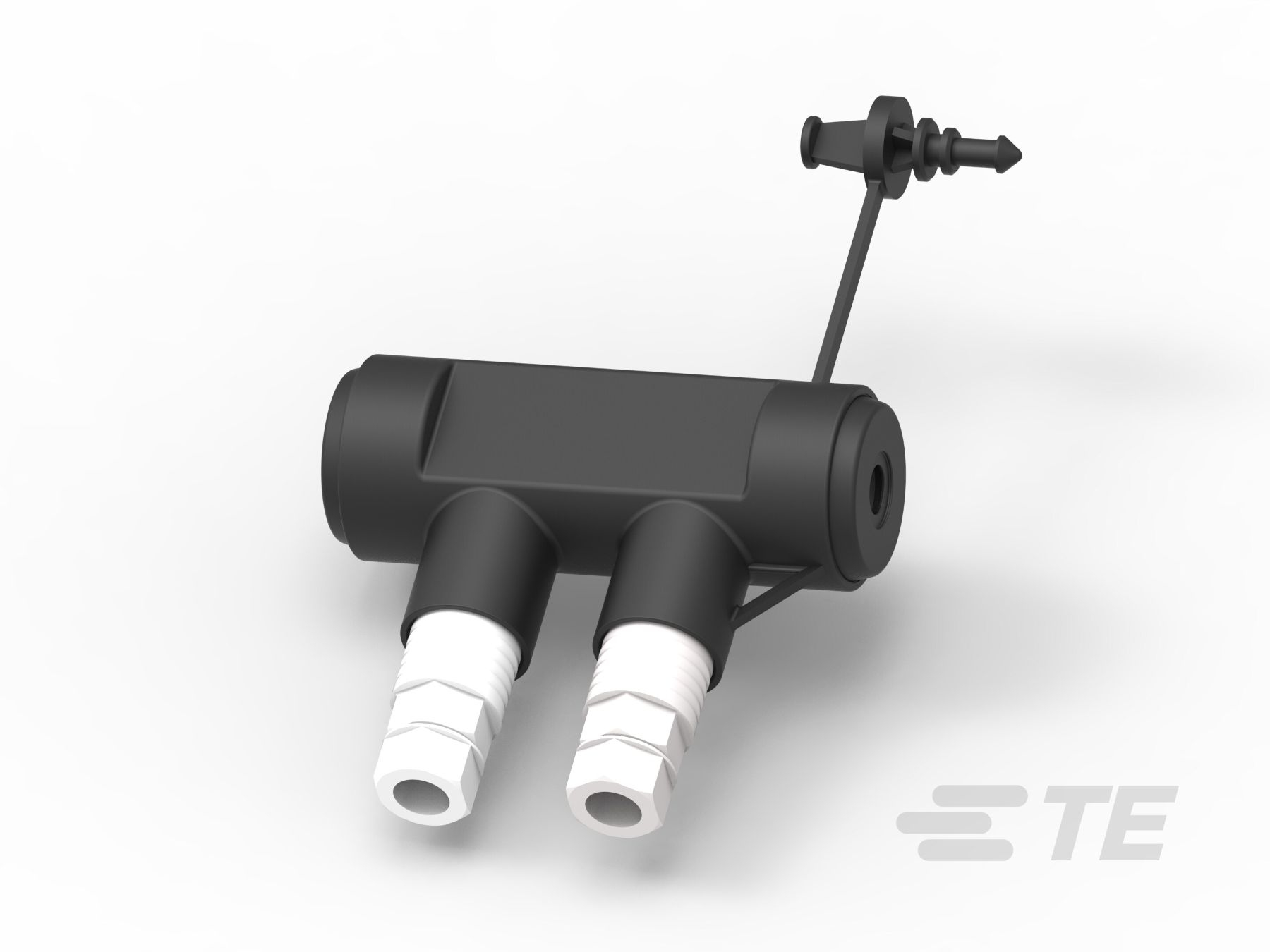

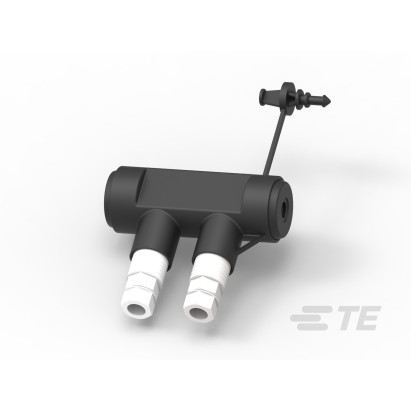

Tyco Pre-Insulated Bolted Sleeves BPC Type

Suitable fo the Juncton of Two Insulated Services Cables

  • These Pre-Insulated Bolted Sleeves BPC Type are suitable for under load (90 A max.) connections of customers from the service line to the house, except BPC P35-P35 and BPC P50.
  • BPC Type bolted sleeves have a capactiy of 4 to 50 mm2 aluminium or copper cable, stranded or solid.
  • The nominal tightening torque is 10 Nm.
  • Sleeves contain a shearhead (black on piercing side, white on stripping side
  • Temporary end cap
  • Easy to install, no need to clean the aluminium conductors
  • Waterproof
  • Easy to handle when tightening
  • No specific tools and dies
Order
Part Number Range Price Quantity
BPC 35-35 4-35mm £12.08
