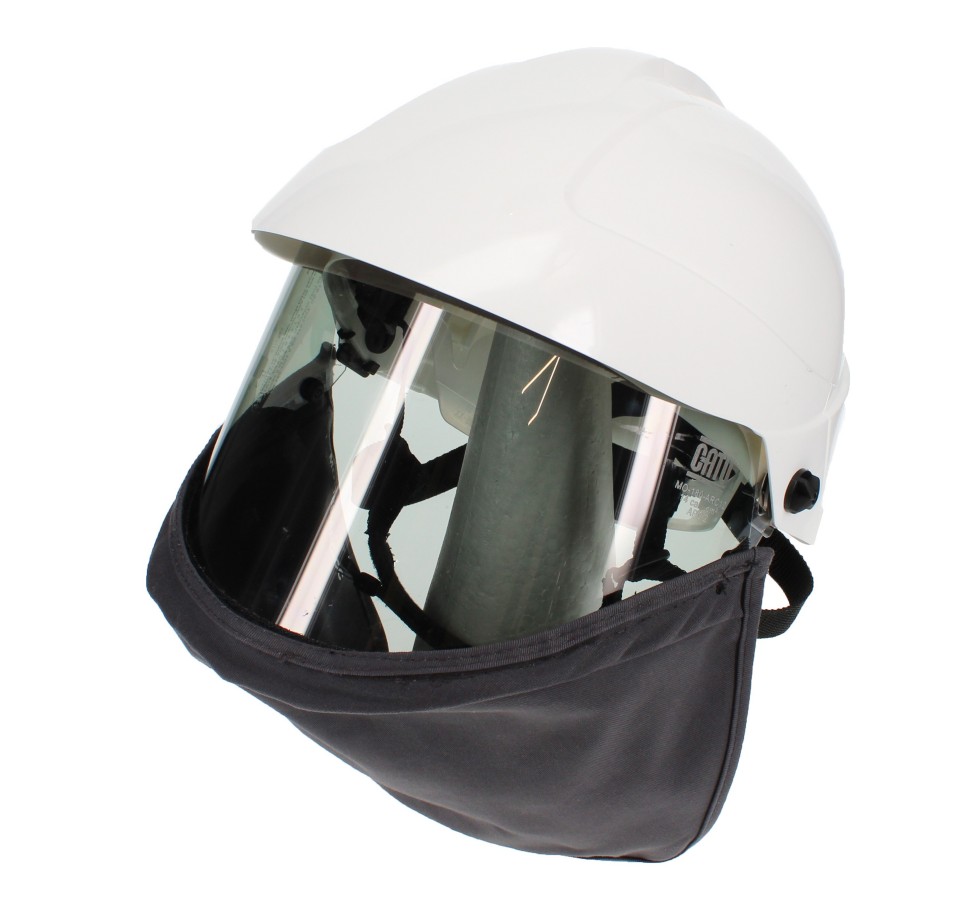

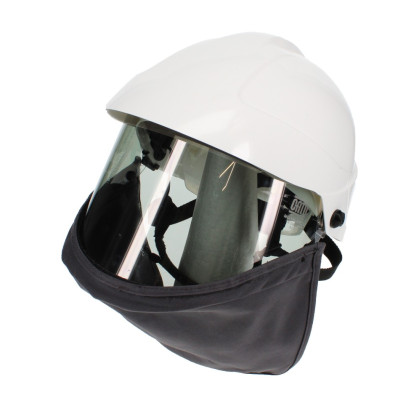

Arc Flash Helmet with Integrated Face Shield and Neck Protection
from only £269.15 Ex VAT
Arc Flash Helmet with Integrated Face Shield and Neck Protection
Electrician's helmet with integrated face shield and chin cup Insulating shell up to 20 kV
- Insulating protection of the shell up to 20 kV (ANSI)
- Provides protection against mechanical shocks
- Face shield protection against electrical arc
- Face shield is fully retractable inside the shell
- Grey face shield for better color recognition
- Light grey panoramic screen in anti-fog treated polycarbonate, thickness > 1.4 mm
- Chin-strap with 4 attachment points for comfortable ear positioning and with user friendly clip locking system
- Adjustable textile chinstrap, with four fixing points for the passage of the ears and very easy closing by "clip" manipulated with gloves
- Adjustable size from 52 to 64 cm with a thumbwheel, easy to handle with glove
- High density polypropylene shell
- Protective face shield: resistance to the energy and heat of the electric arc - ARC FLASH protection class 2 and ATPV 14 cal/cm²
- Removable and washable neck protection
- Six-point textile headgear with height adjustment (5 mm intervals)
- Recommended use of 5 years
| ATPV | 12 cal/cm² |
| Box Test | APC 2 |
| VLT | >60% |
| Size (cm) | 52-54 |
| Pack size | Each |
| Weight per unit | 834g |
Shell
- EN 397/A1 440V: protective helmet for industry with requirements for electrical properties.
- EN 50365 class 0: electrically insulating protective helmet for use on LV installations.
- Classe E 20 kV selon ANSI Z 89.1: industrial helmet and insulators.
Face shield
- IEC 61482-1-2 / GS-ET-29 APC 2
- Protection against electric arc of short-circuit and class 2 transmission (Light transmission value: 43%)
- ASTM F2178 : ATPV 14 cal/cm²
- EN 166 / EN 170: personal eye protection
- Transmittance and step number 2C-2. (UV protection)
- Optical class: 1
- Protection against particles thrown at high speed: symbol B (medium energy impact: 120 m/s)
- Protection against droplets and liquid projections: symbol 3
- Protection against electric arc from short circuit: symbol 8
- Arc flash protection according to GS-ET-29 (7 kA ~ 423 kJ/m² open box test)
- Light transmission class (50% < VLT) according to GS-ET-29
