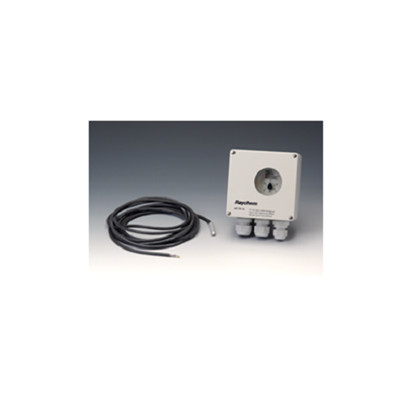

AT-TS-13/ AT-TS-14

Raychem AT-TS-13 and AT-TS-14 Surface Sensing Electronic Thermostats

AT-TS thermostats provide temperature control in safe area.  The temperature set point can be checked through a window in the lid.

LED´s are providing an indication when cables are energized (Heating ON) or when the temperature sensor is defect (sensor break or sensor short-circuit).

The temperature sensor has a length of 3 meter and can be shortened for ambient sensing operating. Direct connection of the heating cable is possible. Connection kits need to be ordered separately.

The thermostat is available in 2 temperature ranges:

• AT-TS-13: -5°C to +15°C
• AT-TS-14: 0°C to +120°C
