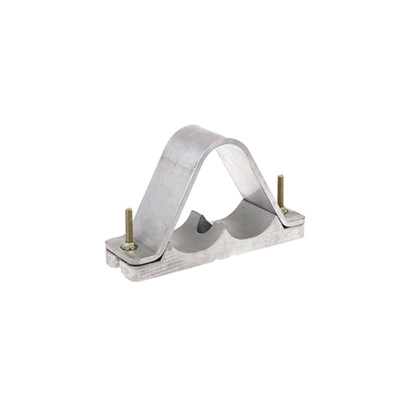

376TR MV-HV Trefoil Cleats


from only £44.10

Outdoor for 62mm to 186mm MV/HV diameter cable in trefoil formation

  • Manufactured from solid aluminium
  • Designed for use with MV & HV cable designs
  • Deep section bases aid cable installation
  • Clamping bolt can be used for pilot cables
  • Available with single or two bolt fixing
  • Available with rubber lining for HV installations
  • 6 sizes in range
Technical Data
  • Operating Temperature -60
Order
Part Number Wolseley Code Cable Diameter Price Quantity
376TR01 24-31mm £44.10
376TR02 29-37mm £47.25
376TR03 35-44mm £49.35
376TR04 42-53mm £51.45
376TR05 51-63mm £53.55
376TR06 62-75mm £55.65
376TR07 75-90mm £57.75
376TR08 JZ3074 90-107mm £59.85
376TR09 JZ0823 107-129mm £61.95
