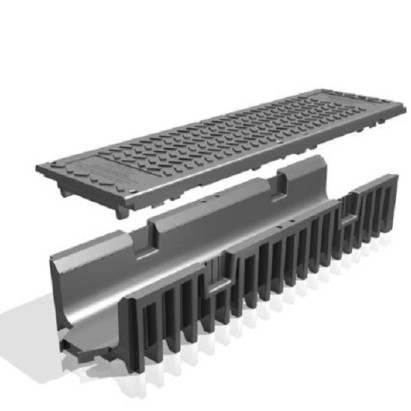

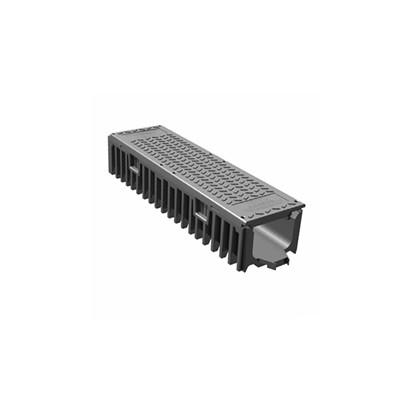

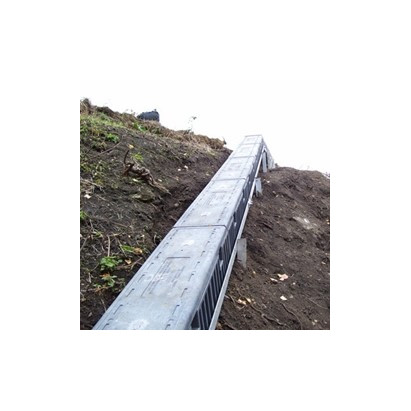

Tro Trof is a British designed and made state of the art cable troughing system that has won a Network Rail environment award for innovation.  TroTrof was specifically designed for the unique needs ofr the UK rail network and can be fitted both as a stand alone housing solution or it can be integrated into existing concrete infrastructures making TroTrof versatile the ideal solution of all maintenance and upgrade rail projects.  It's flexible, interlocking system is modular which is particularly suitable for hard to access sites where steep inclines and/or weight bearing is a consideration.

Developed alongside rail network engineers, TroTrof is the only troughing system to be approved by Network Rail

Tro Trof has been awarded a green status in Network Rail's Manual Handling Assessment Chart (MAC)

  • Lightweight - only weighs 17kg per unit
  • Light enough to be compliant with HSE manual handling guidelines
  • Strong enough to tolerate loads of up to 20 tonnes
  • Environmentally friendly, manufactured from 100% recycled polymer
  • Easy to cut - perfect fo on site alterations
  • Tro Tro can be used as a stand along cable troughing system or integrated into existing concrete infrastructures
  • Network Rail approved
  • Installation time over 4 x quicker than concrete
  • Reduced handling and haulage costs
  • Safe, lightweight and durable cable trough
  • Winner of the Network Rail Environmental Award for Innovation in 2008
  • Patented technology designed to withstand high loading without damage
  • Tested to withstand site traffic
  • Anti-vandal and anti-theft features
  • **Due to item weight, if you would like more than one unit please contact your local Jointing Tech branch for a discounted shipping rate

Technical Data

  • Dims- H173mm x L1000mm x W281mm
  • Weight - 18kgs (Base 11kgs and lid is 7kgs)
  • Material - Recycled polymers
  • Fire retardant characteristics - Complies with Network Rail specificaton
  • Manufactured to ISO9001
  • Manufacturing Process - Injection Moulding for guaranteed quality
  • Product acceptance cert number PA05/02512
  • 20 units per pallet
  • One man lift - Reduced site & RRV handling

Datasheet

TroTrof Data Sheet

Order

Part Number Description Shipping External Dimensions Price £ Quantity
TROTROF C1/9 1M Straight Length c/w Lid **Additional shipping charges included H206 x L1007 x W281 (18KGS) 96.00
TROTROF C1/43 1m straight length with lid **Additional shipping charges included H413 x L1034 x W440 (25KGS) 110.40
TROTROF T-PIECE C1/9 TEE PIECE **Additional shipping charges included NA 582.00
TROTROF 90 C1/9 90 DEG BEND **Additional shipping charges included NA 210.00
TROTROF 45 C1/9 45 DEG BEND **Additional shipping charges included NA 150.00
TROTROF LID C1/9 1M STRAIGHT LID ONLY **Additional shipping charges included NA 38.40
TRO-TROF/TRED TEE PIECE (TRO TROF to TRO TRED) **Additional shipping charges included NA 594.00
TROTROF 45 C1/43 45 DEG BEND **Additional shipping charges included NA 216.00
