33kV Single Core Unarmoured XLPE Cable Joint

33kV Unarmoured XLPE Cable Joint
33kV Unarmoured XLPE Cable Joint

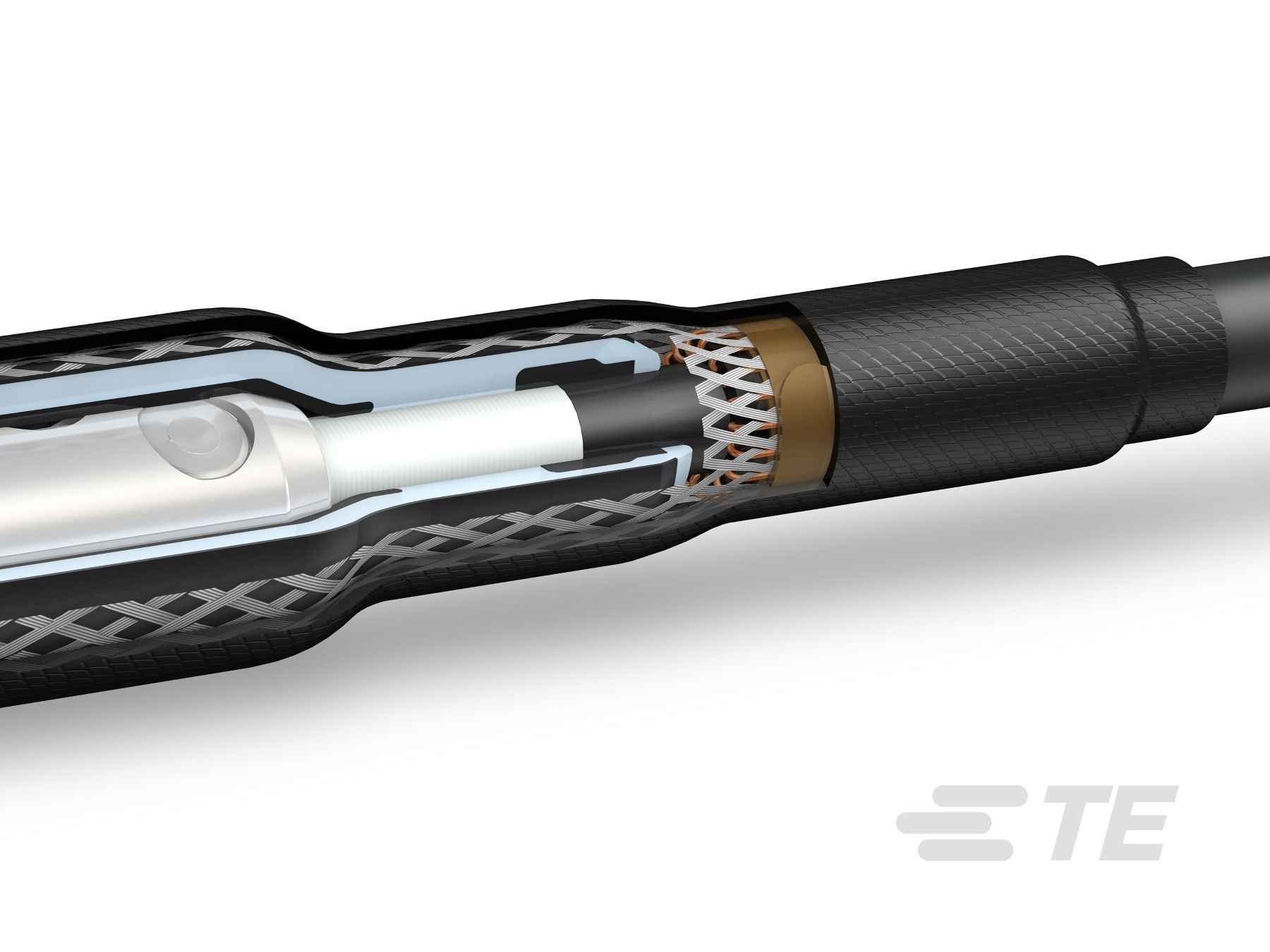

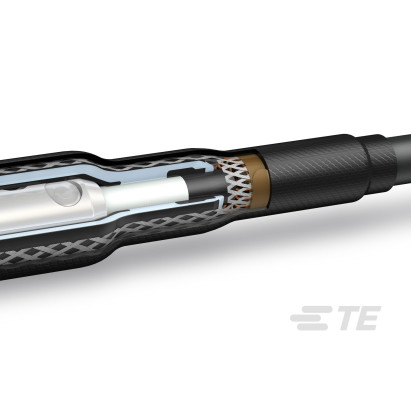

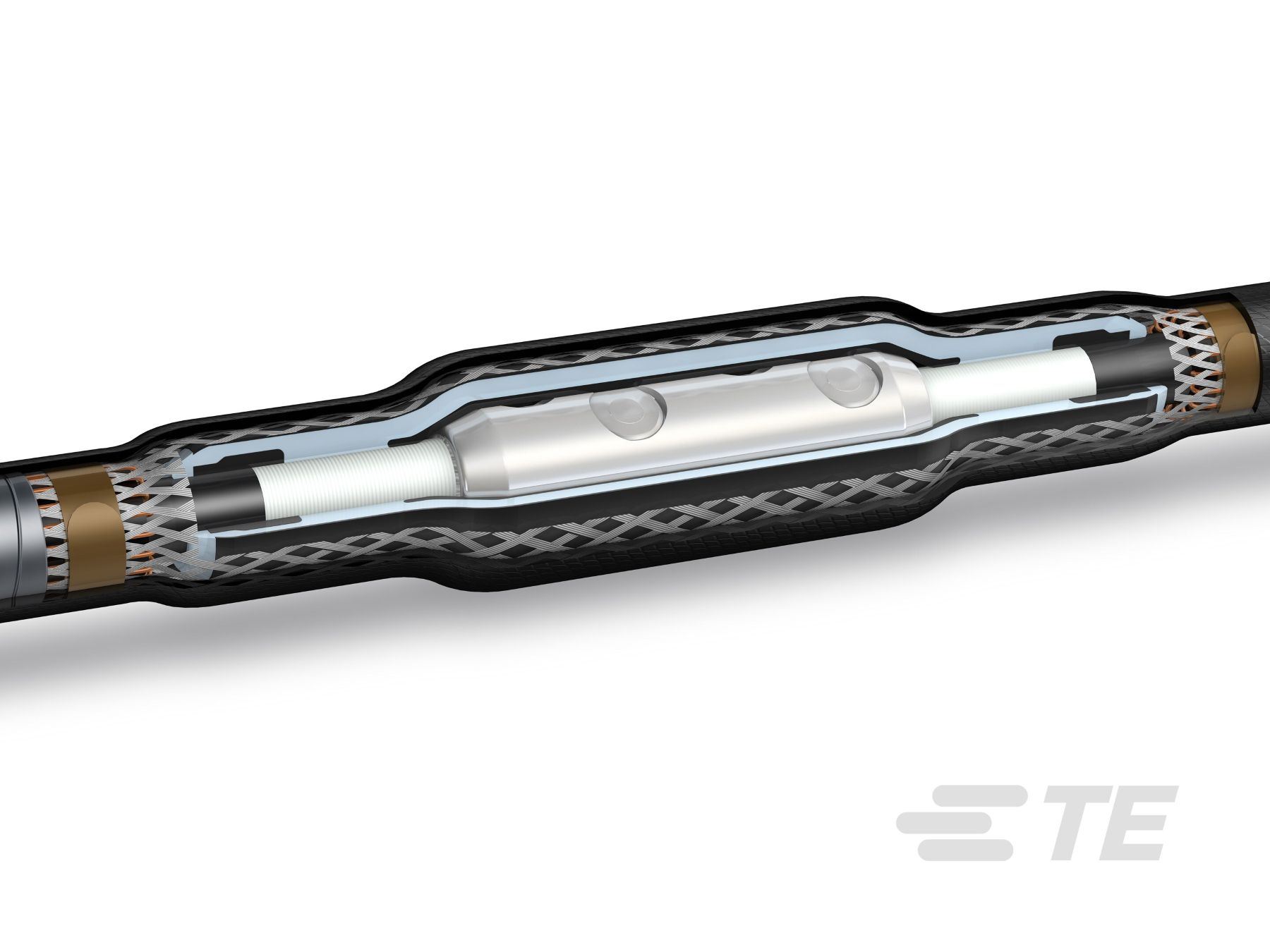

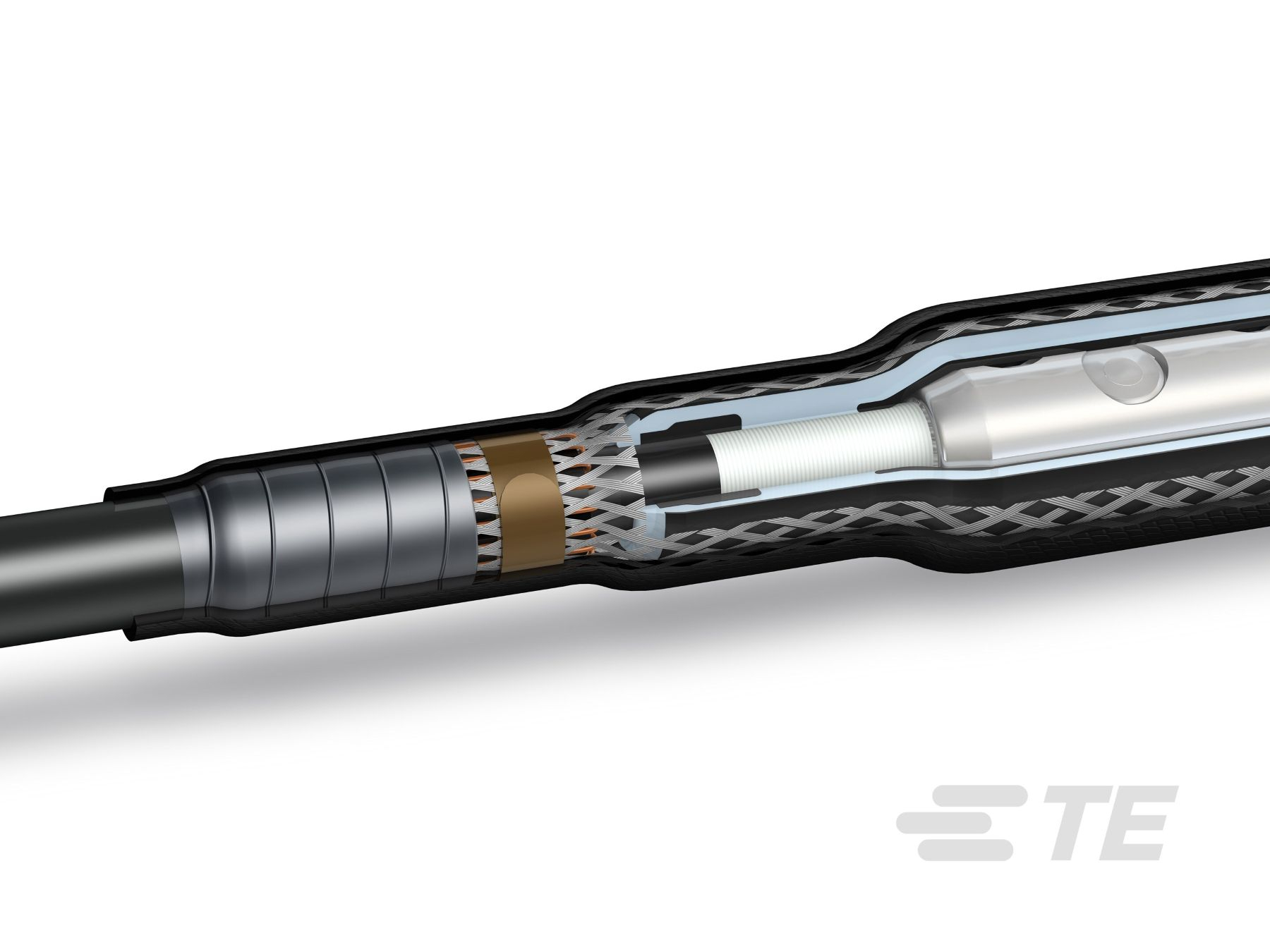

Inline cold shrink joints for 33kV single core unarmoured XLPE cables

  • Designed to join inline single core 33kV unarmoured XLPE cable in “All in One” kit including mechanical connectors
  • Faster installation time than heat shrink joints
  • Joint body, earthing system and re-jacketing pre-expanded on one holdout system
  • Single piece silicone rubber joint body with high mechanical expansion capability allows a wide application range which enables smaller range of product to be stocked
  • Short parking distance required
  • Electrical stress control of the screen cut area by intergrated conductive geometrical stress cones
  • Electrical stress control of the connector is by an integrated screened connection area (Faraday Cage)
  • Kit contents: Stress control and insulation tubing, wire shield, outer cold shrink sleeving and moisture tapes

Technical Data

  • Joint exceeds CENELEC HD 629.1 which includes IEC, BS,VDE and other international specifications
  • Network Rail approved
  • Mechanical Shear bolt connector to IEC 61238-1

Order

Part Number Application Range Diameter Over Core Insulation Diameter Over Outer Sheath Price £ Quantity
CSJA-36D/1XU-1XU-M 95-240mm² 27.8-37.6mm 35.0-48.0mm 289.44
CSJA-36E/1XU-1XU-M1 240-400mm² 34.9-42.8mm 42.0-54.0mm 344.52
CSJA-36E/1XU-1XU-M2 500mm² 42.6-45.6mm 51.0-57.0mm 362.88
CSJA-36E/1XU-1XU-M3 630mm² 45.8-49.2mm 56.0-61.0mm 392.04
