MSDB Metal 18 Way


from only £1,821.75

Multi Service Distribution Boards (MSDB) from Lucy Electric

Meticulous attention to the shrouding of live parts offers a high level of safety to installers whilst

  • Cabinet depth has been kept to a minimum to ensure that the units can be accommodated in confined service compartments away from the general public
  • Staggered outgoing 100A SP fuse service ways provide maximum cable space
  • Choice of cable terminations including mechanical shear-off or compression lugs
  • Suitable for 3C CNE supplies or 4C SNE with additional kit
  • Standard configurations include Left/Right/Top/ Bottom incoming supply
  • Enclosure manufactured from zinc coated steel with a phosphate resin pre-treatment followed by an oven-cured polyester powder coat finish
  • Double doors enabling segregation of incoming and outgoing supplies
  • Quick release doors facilitate installation in confined spaces
  • Choice of 12, 15, 18, 24, 30, 36 and 45 outgoing fused ways
  • Incoming BS88 J type fuses with 92mm centres
  • 630A busbar rating

Options

  • Second J type fuse way for outgoing supplies greater than 100A (not available for 45 way product)
  • SWA glanding kit • 4C cabling kit
  • Temporary insulation shrouds for J type fuse way

Other Versions Available - Contact your local Jointing Tech office for full details

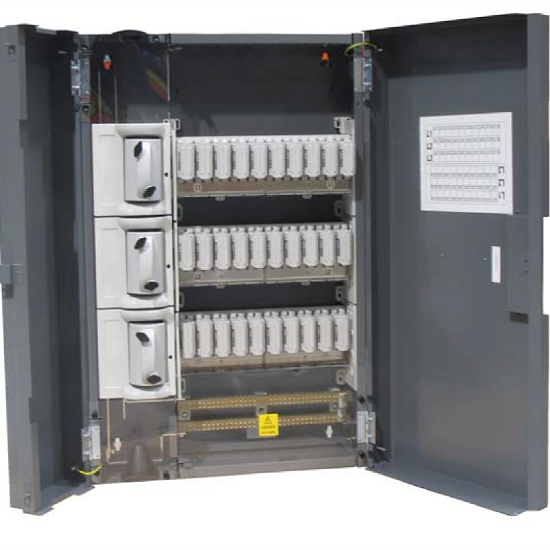

IMAGE FOR REPRESENTATION ONLY

Technical Data
  • Conforms to BSEN 60439-1 and Draft ENA specification
  • Outgoing fuse ways to BS 7657:2010
  • IP rating to BSEN 60529



  • Sizes available: 7, 10, 12, 15, 16, 18, 24, 30, 36,45 WAYS in various formats
  • To standard industrial specification and DNO specific standards (WPD, SSE, SPEN, UKPN)
Order
Part Number Description DNO Approval Price Quantity
THM0056392 18 WAY-1J-RIGHT HAND-DOUBLE DOOR-4 CORE-CABLE EXTENSION BOX FITTED-TOP NEUTRAL Industrial (Non DNO specific) £1821.75
