Multi Service Distribution Boards (MSDB) Original Version (1.0) from Lucy Electric

Meticulous attention to the shrouding of live parts offers a high level of safety to installers whilst cabinet depth has been kept to a minimum to ensure that the units can be accommodated in confined service compartments away from the general public

• Staggered outgoing 100A SP fuse service ways provide maximum cable space
• Choice of cable terminations including mechanical shear-off or compression lugs
• Suitable for 3C CNE supplies or 4C SNE with additional kit
• Standard configurations include Left/Right/Top/ Bottom incoming supply
• Enclosure manufactured from zinc coated steel with a phosphate resin pre-treatment followed by an oven-cured polyester powder coat finish
• Double doors enabling segregation of incoming and outgoing supplies
• Quick release doors facilitate installation in confined spaces
• Choice of 12, 15, 18, 24, 30, 36 and 45 outgoing fused ways
• Incoming BS88 J type fuses with 92mm centres
• 630A busbar rating
• This is the original Lucy Electric model, not the 2.0 version

Options

• Second J type fuse way for outgoing supplies greater than 100A (not available for 45 way product)
• SWA glanding kit • 4C cabling kit
• Temporary insulation shrouds for J type fuse way

Other Versions Available - Contact your local Jointing Tech office for full details

• Sizes available: 7, 10, 12, 15, 16, 18, 24, 30, 36,45 WAYS in various formats
• To standard industrial specification and DNO specific standards (WPD, SSE, SPEN, UKPN)

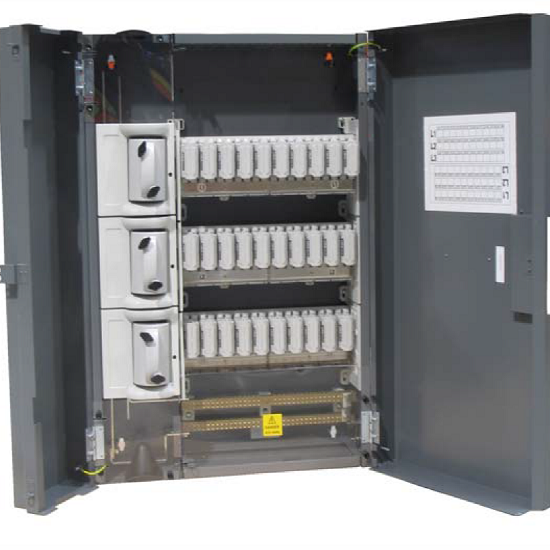

IMAGE FOR REPRESENTATION ONLY
